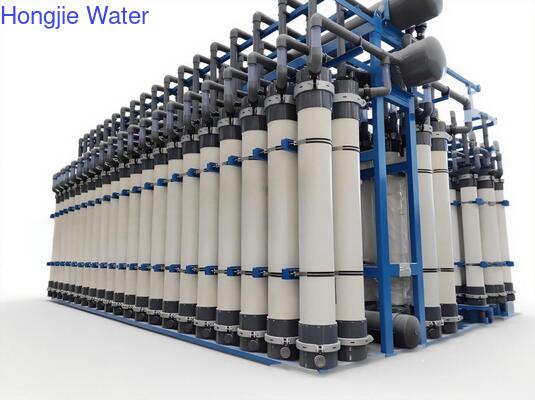

Advanced SWRO Plant 720m³/day Ultrafiltration RO System For Pretreatment Unit Of Seawater Desalination
| Place of Origin | Shenzhen,Guangdong |
|---|---|
| 브랜드 이름 | HJW |
| 인증 | ISO 14001,ISO 9001,CE,EPA |
| Minimum Order Quantity | 1set |
| 가격 | US$66200~US$66500 |
| Packaging Details | export standard wooden case |
| Delivery Time | 1-7working days(depand on raw materials stocking) |
| Payment Terms | L/C,D/P,T/T,Western Union |
| Supply Ability | >300sets/month |
무료 샘플과 쿠폰을 받으려면 연락하세요.
whatsapp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| Capacity | 720m³/D | Technology | Reverse Osmosis (RO)， Ultrafiltration (UF) |
|---|---|---|---|
| Water source | Seawater | Membrane Material | PVDF, PES, Ceramic |
| Operating Pressure | 0.3–1.5 bar | Recovery Rate | 85–90% |
제품 설명
I.Overview
Ultrafiltration (UF) system is mainly used as the pretreatment unit of Reverse Osmosis (RO) in seawater desalination, which is used to efficiently remove suspended solids, colloids, algae and microorganisms from seawater, significantly reduce the risk of contamination of RO membrane, and improve the stability and efficiency of the overall system. As the “guardian” of RO, the system's stability and economy are greatly improved through efficient pretreatment.
Its core value lies in: safeguarding RO membrane safety (reduce the risk of contamination, extend the life), energy saving and environmental protection (reduce chemicals, compatible with energy recovery), and adapting to complex water quality (high algae, high turbidity seawater can be treated).
II.Typical Process Flow
Conventional Desalination Pretreatment Process :
Seawater → Sieve Filtration (1~5 mm) → Coagulation (optional) → Ultrafiltration → Reverse Osmosis → Post-treatment (Mineralization/pH Adjustment)
Submerged ultrafiltration (S-UF) process :
seawater → self-cleaning filter → submerged ultrafiltration → security filter → RO
Integrated energy recovery system :
seawater → UF → high-pressure pump → RO → energy recovery unit (e.g. PX) → produced water
III.Core Attribute Parameters
| Performance Requirements for Ultrafiltration Membranes | |||||||
| Parameter | Typical Value | Description | |||||
| Membrane Material | PVDF, PES, Ceramic | Resistant to seawater corrosion (PVDF is optimal), anti-biological fouling. | |||||
| Pore Size | 0.02–0.05 μm | Balances flux and rejection rate (bacteria removal rate >99.9%). | |||||
| Flux (LMH) | 40–80 (20–30℃ seawater) | At low temperature (<15℃), flux decreases by 20%–30%. | |||||
| Operating Pressure | 0.3–1.5 bar | Submerged ultrafiltration operates at lower pressure (0.1–0.5 bar). | |||||
| Recovery Rate | 85–90% | Concentrated water discharge: ~10–15%. | |||||
| Outlet Water Quality | |||||||
| Index | Ultrafiltration Effluent | RO Inlet Requirement | |||||
| Turbidity (NTU) | <0.2 | <1 | |||||
| SDI15 | <3 | <5 | |||||
| Total Bacteria Count | <10 CFU/mL | – | |||||
| TOC (mg/L) | <1 | – | |||||
IV.Applicable Scenarios
Large Desalination Plant
Marine/Island Small Desalination System
Hybrid Process (UF+RO+Energy Recovery)
V.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
