1T-200T/Hour Flow Rate Pure Water Treatment Machine with Conductivity < 10μs/cm and 2-Year Warranty

  • 1T-200T/Hour Flow Rate Pure Water Treatment Machine with Conductivity < 10μs/cm and 2-Year Warranty
  • 1T-200T/Hour Flow Rate Pure Water Treatment Machine with Conductivity < 10μs/cm and 2-Year Warranty
  • 1T-200T/Hour Flow Rate Pure Water Treatment Machine with Conductivity < 10μs/cm and 2-Year Warranty
  • 1T-200T/Hour Flow Rate Pure Water Treatment Machine with Conductivity < 10μs/cm and 2-Year Warranty
  • 1T-200T/Hour Flow Rate Pure Water Treatment Machine with Conductivity < 10μs/cm and 2-Year Warranty
Place of Origin Shenzhen,China
Brand Name Hongjie
Certification ISO 14001,ISO 9001,CE,EPA
Minimum Order Quantity 1set
Price negotiation
Packaging Details export standard wooden case
Delivery Time 15-25working days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flow Rate 1T-200T/Hour Product Name Whale Water Treatment Equipment
Key Words Water Filter System Large Industry Key Components RO Membrane Modules
Product Keywords Membrane Pressure Vessel Type Pure Water Treatment System
Processing Type Reverse Osmosis, Softening, Desalination, Filtration Power Supply 70 KW, 25KW, 35kw, 20KW
Highlight

200T Per Hour Pure Water Machine

,

100T Per Hour Pure Water Machine

,

RO Membrane pure water treatment system
Leave a Message
Product Description

I. Equipment Overview

For pure water equipment, reverse osmosis (RO) systems are generally selected, which are mainly applied in industries such as beverages, winemaking, dairy products, fermentation, and food processing. These industries typically require pre-treated water or pure water for water quality, with conductivity usually below 10 μS/cm.




II. Process Flow

  1. Standard Path:
    Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → Pure Water Tank → UV Sterilizer → Water Point
  2. Enhanced Path:
    Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Tank → Secondary RO → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter → Water Point





III. Parameters

Item Specification
Electricity Supply 70 KW, 25KW, 35kw, 20KW
Produced Water Quality Conductivity < 10μs/cm
Core Technology Double-stage Reverse Osmosis (RO)
Key Components RO Membrane Modules
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service  2-Year Warranty For Standard Equipment
Compliance Standards GB17324-2003 Hygienic Standard For Bottled (Barreled) Drinking Purified Water,GB5749-2006 Sanitary Standard For Drinking Water,CJ94-1999 Drinking Water Standard





IV. Design Advantages

  • Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.
  • Factory-Integrated Wiring: Reduces on-site installation and debugging time by completing all unit connections at our facility.
  • RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
  • Sanitary Materials: 304/316L stainless steel piping in both sanitary and non-sanitary designs, with automatic welding and endoscopic inspection for flawless hygiene.
  • Dual Sterilization Options: Choose between ambient temperature or hot water disinfection systems to meet hygiene standards.
  • Stainless Steel Pipe Automatic Welding & Endoscopic Inspection - Elevate Your Production with Precision and Efficiency.
  • Hygiene Guaranteed: Purified water storage tanks with breathing filters, along with UV sterilizers and microporous filters in the pipelines, ensure water quality remains pristine.
  • User - Friendly Operation: Integrated control and instrumentation systems make operation and management intuitive and straightforward.





V. Design Standards and Compliance

  1. Tailored Solutions: Customized designs based on your detailed water quality report, ensuring a perfect fit for your process.
  2. National Food Safety Standards: Packaged Drinking Water (GB 19298 - 2014),and GB 14881-2013 (General Hygienic Practices for Food Production).
  3. Industry Specifications: Aligned with JB/T 2932-1999 (Water Treatment Equipment), CJ/T119-2000 (RO Systems), and GB/T 12771-2008 (Stainless Steel Piping).


RO  Membrane  Photo:

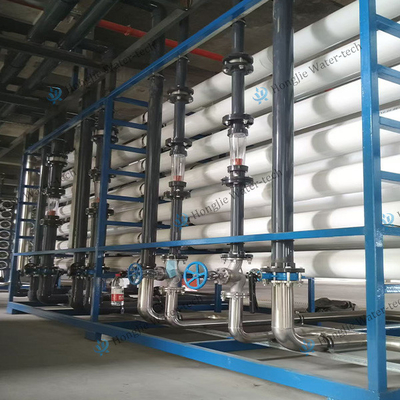

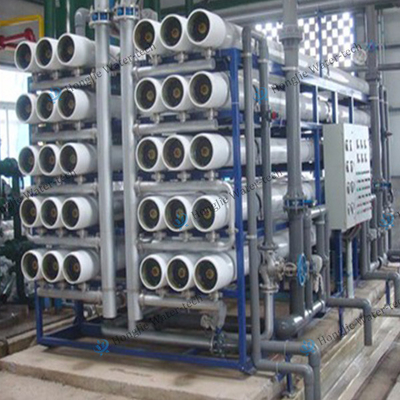

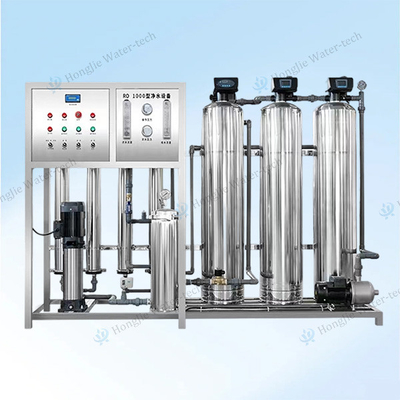

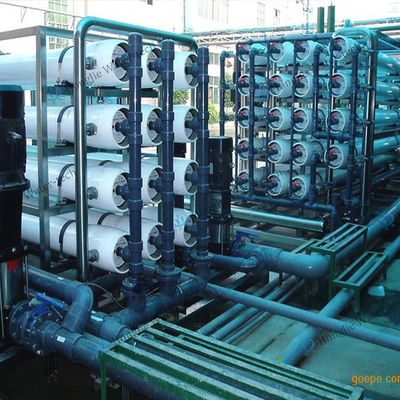

1T-200T/Hour Flow Rate Pure Water Treatment Machine with Conductivity < 10μs/cm and 2-Year Warranty 0



1T-200T/Hour Flow Rate Pure Water Treatment Machine with Conductivity < 10μs/cm and 2-Year Warranty 1
