| Brand Name: | Hongjie |
| Model Number: | HJ-UFJu15T |
| MOQ: | 1set |
| Price: | negotiation |
| Payment Terms: | T/T |
| Supply Ability: | >300sets/month |
I.Flow Chart Of UF Water Treatment Equipment

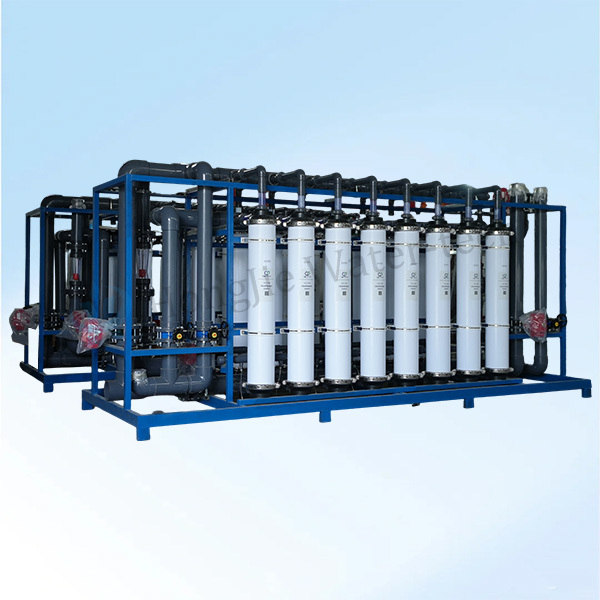

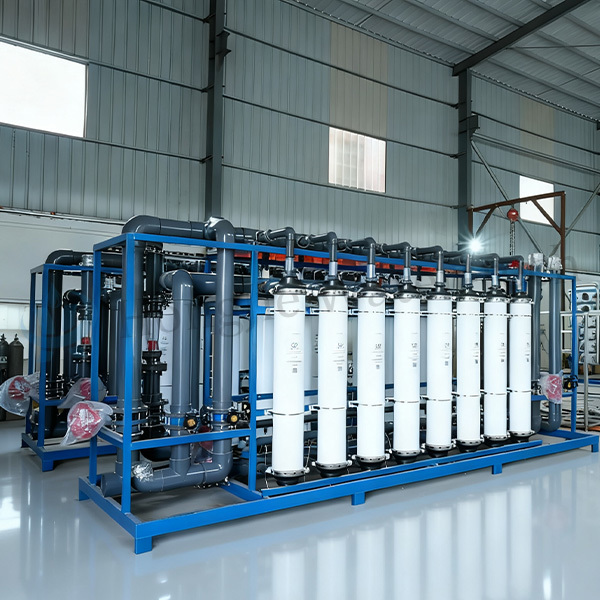

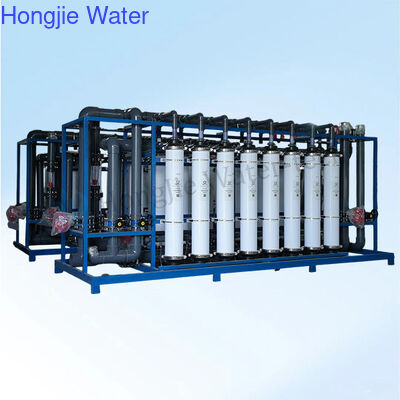

The system adopts a modular design, mainly consisting of a raw water pretreatment unit, an ultrafiltration unit, a cleaning unit, and an automatic control system.
The overall structure of the equipment is compact, occupies a small area, and is convenient for transportation and installation.
2️⃣ System Structure: Pretreatment + Ultrafiltration Unit + Cleaning System + Automatic Control
3️⃣ Effluent Specifications: Turbidity < 0.1 NTU, SDI < 3
4️⃣ Control Method: PLC Fully Automatic Operation
5️⃣ System Features: High Flow Rate / Low Energy Consumption / Stable Operation / Easy Maintenance
6️⃣ Application Areas: Reverse osmosis pretreatment, electronics, power, food, beverage, and other industries.
II.Details of Product Description
| Specification | Description | |||||||
| Model | HJ-UF50T | |||||||
| Production Capacity | 50m³/H | |||||||
| Microbial & Bacterial Removal Rate | 99.99% | |||||||
| Suspended Solids Removal Rate | 99% | |||||||
| Backwash Pressure | < 0.1 MPa | |||||||
| Backwash Flow Rate | 200 L/m²/hr | |||||||
| Chemical Cleaning | Based on membrane material and fouling condition | |||||||
| RO system recovery rate | 96% | |||||||
| RO working voltage | 380V/220V/50Hz | |||||||
III.Core Technology

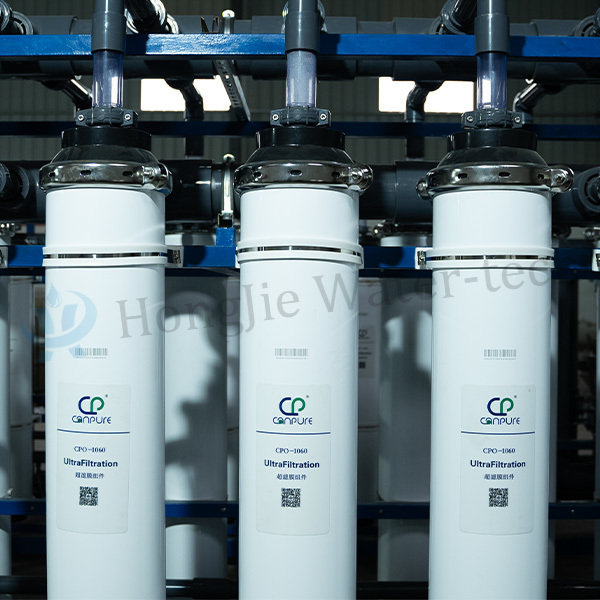

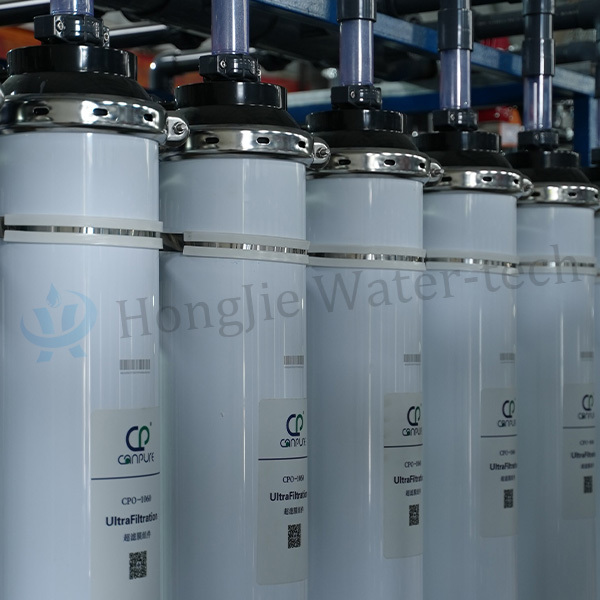

The ultrafiltration unit uses hollow fiber membrane modules with a pore size of approximately 0.01 microns, effectively removing suspended solids, colloids, bacteria, and other impurities while retaining beneficial ions in the water.
The membrane housing and piping are made of stainless steel and UPVC, ensuring corrosion resistance, cleanliness, and hygiene, and meeting industrial and food-grade standards.
IV.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
