Stainless Steel Multi-Stage RO Plant with PLC Control for High-Efficiency Water Purification

Stainless Steel Multi-Stage RO Plant with PLC Control for High-Efficiency Water Purification

Brand Name:	HongJie
Model Number:	HJ-ROFB1500L
MOQ:	>=1sets
Price:	negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	>300sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO 14001,ISO 9001,CE,EPA

Flow Rate:

1 M³/h – 50 M³/h (based On System Configuration)

Core Technology:

Reverse Osmosis (RO)

Operation Mode:

Full Automatic (PLC-controlled)

Motive Force:

Pressure

Material:

SUS304,carbon,FRP

Produced Water Quality:

Conductivity < 10μs/cm

Key Components:

RO Membrane Modules

After-Sales Service:

1-Year Warranty (excluding Consumables)

Performance:

Efficient Filtration

Working Pressure:

0.05-0.6MPa

Packaging Details:

export standard wooden case

Highlight:

PLC Control RO Plant

Stainless Steel Reverse Osmosis System

Multi-Stage Filtration Water Purification System

Product Description

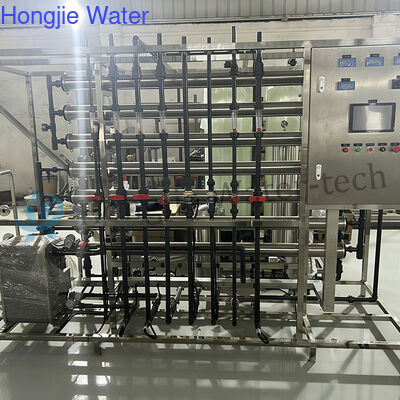

Stainless Steel Multi-Stage RO Plant With PLC Control

Reliable & Pure Water Supply for Industrial Applications

Product Overview

This high-efficiency industrial reverse osmosis system is engineered specifically for demanding water quality standards in the Malaysian market. Ideal for electronic manufacturing, food & beverage processing, and drinking water bottling plants, our system provides robust and scalable solutions for consistent ultra-pure water supply.

Key Technical Features

High-Quality Membranes: Equipped with industry-leading ENHON RO membranes for high salt rejection rates and long-lasting durability
Durable Construction: Heavy-duty 304/316 stainless steel frame providing superior corrosion resistance for humid industrial environments
Intelligent Automation: Advanced PLC control panel for real-time monitoring of TDS levels, flow rates, and pressure sensors
Multi-Stage Pre-filtration: High-pressure vertical pumps and precision sediment filters to protect RO membranes and extend system lifespan
Modular Design: Compact footprint for easy integration into existing production lines with expansion capabilities

Technical Specifications

Parameter	Specification
System Type	Multi-Stage Reverse Osmosis (RO) System
Membrane Type	ENHON Reverse Osmosis Membranes
Salt Rejection Rate	≥ 99%
Feed Water Quality	TDS: < 2000 ppm (adjustable based on local water source)
Water Recovery Rate	75% - 85%
Product Water Quality	TDS: < 10 ppm (ultra-pure water)
Frame Material	304/316 Stainless Steel
Control System	PLC Control with HMI Display
Flow Rate	1 m³/h - 50 m³/h (based on system configuration)
Operating Pressure	4 - 10 bar
Power Supply	380V, 50Hz, 3-Phase
Max Operating Temperature	45°C
Max Operating pH Range	2 - 11
PLC Monitoring Parameters	TDS, Pressure, Flow Rate
Automation Features	Remote monitoring, automatic start/stop, alarms
Control Panel	Siemens PLC with touch screen interface
Maintenance Interval	12 months (routine checks and maintenance)

System Advantages

Energy Efficient: Designed to minimize wastewater and reduce electricity consumption
Low Maintenance: Easy-to-access components and clear pressure gauges for simple troubleshooting
Local Support: Tailored configurations for brackish or municipal water sources in regions like Selangor and Johor

Identify Your Water Treatment Needs

To determine the right equipment for your application, please clarify the following:

Water Quality Problems

Sediment exceeds standard, scaling, turbid water, microbial contamination, heavy metal exceeds standard, etc.

Required Water Standards

Softened water, pure water, ultra-pure water, iron and manganese removal, sediment removal, sterilization, etc.

Daily Water Consumption

Concentrated water consumption periods, water consumption timing, peak maximum water consumption, hourly average water consumption

If You Cannot Answer Clearly:

1. Daily Water Consumption: Mail a water sample for analysis

2. Water Standard: Provide your industry type

3. Water Consumption: We can help calculate your requirements
