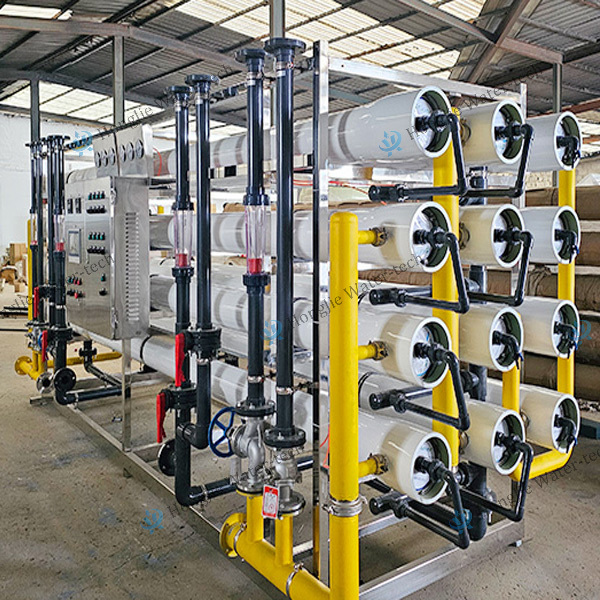

20m3/H Pure Water Equipment For Floor Heating System Circulating Water
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hongjie |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Model Number | HJ - PWGFH20T |
| Minimum Order Quantity | 1set |
| Price | US$88000~US$89000 |
| Packaging Details | export standard wooden case |
| Delivery Time | 1-7working days(depand on raw materials stocking) |
| Payment Terms | T/T |
| Supply Ability | >300sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | HJ - PWGFH20T | Flow Rate | 20m³/h |
|---|---|---|---|
| Electricity Supply | 380V | Produced Water Quality | Conductivity < 1μs/cm |
| Core Technology | Two-stage Reverse Osmosis (RO) | Key Components | RO Membrane Modules |
| Operation Mode | Full Automatic (PLC-controlled) Warranty Period | Warranty Period | 2-Year |
| Usage | Water Treament | RO Membrane Material | PVC, PVDF Both Can Provide |
| Highlight | Floor Heating System Pure Water Equipment,Floor Heating System Pure Water machine,20m3/H Pure Water Equipment |
||
Product Description
I. Two-stage RO process:
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Tank → Secondary RO → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter → Water Point
II.Parameters
| Item | Specification | ||||||
| Model | HJ - PWGFH20T | ||||||
| Flow rate | 0.25~200m³/h | ||||||
| Electricity Supply | 380V | ||||||
| Produced Water Quality | Conductivity < 1μs/cm | ||||||
| Core Technology | two-stage Reverse Osmosis (RO) | ||||||
| Key Components | RO Membrane Modules | ||||||
| Operation Mode | Full Automatic (PLC-controlled) | ||||||
| Warranty period | 2-Year | ||||||
III. Production overview
The circulating water in a floor heating system refers to water that is heated and then sent through pipes to the floor radiation area, where it circulates. Through heat exchange, the heat from the floor is transferred to the room, providing a comfortable heating environment.
Floor heating systems require low water hardness to reduce scale deposition, thereby improving thermal efficiency and system life. Through two-stage reverse osmosis technology, dissolved salts and minerals in the water can be further removed to ensure that the circulating water of the floor heating system is clean and low in hardness, avoiding system blockage or corrosion.
IV. Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
