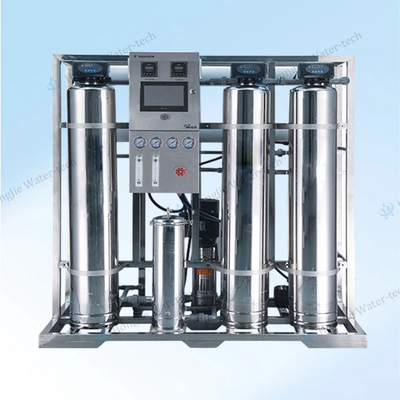

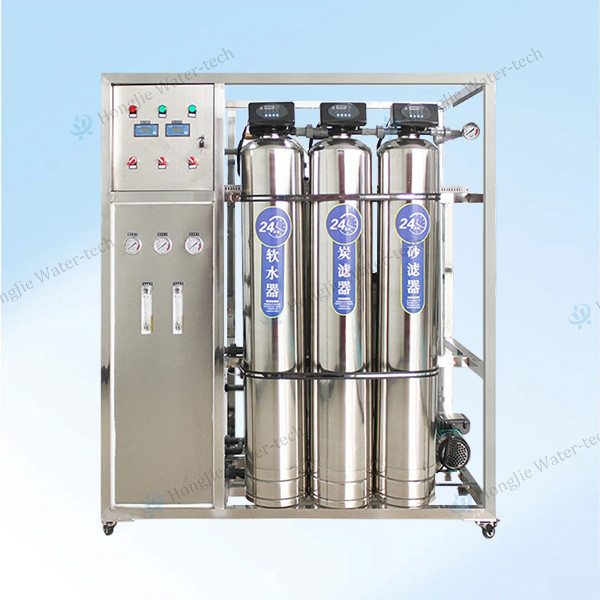

User Friendly 500L/Hour Pure Water Systems For Food And Beverage Industry

  • User Friendly 500L/Hour Pure Water Systems For Food And Beverage Industry
  • User Friendly 500L/Hour Pure Water Systems For Food And Beverage Industry
  • User Friendly 500L/Hour Pure Water Systems For Food And Beverage Industry
  • User Friendly 500L/Hour Pure Water Systems For Food And Beverage Industry
Place of Origin Shenzhen,China
Brand Name Hongjie
Certification ISO 14001,ISO 9001,CE,EPA
Minimum Order Quantity 1set
Price $5000-$11,000
Packaging Details export standard wooden case
Delivery Time 1-7working days(depand on raw materials stocking)
Payment Terms ,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flow Rate 0.25m³/h - 200m³/h (customizable ) Product Name Pure Water Equipment
Core Technology Double-stage Reverse Osmosis (RO) Key Components RO Membrane Modules
Operation Mode Full Automatic (PLC-controlled) Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
Warranty 2years Weight 350kg
Highlight

Beverage Industry Pure Water Systems

,

Food Industry purified water equipment

,

User Friendly Pure Water Systems
Leave a Message
Product Description

500L/Hour Pure Water Systems For Food and Beverage Industry



I. Equipment Overview

For the food industry, our pure water equipment leverages advanced reverse osmosis (RO) systems, tailored for applications in beverage production, winemaking, dairy products, fermentation, and food processing. These solutions meet strict water quality requirements, typically delivering conductivity below 10μS/cm—ideal for pretreatment and pure water needs.



II. Process Flow

  1. Standard Path:
    Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → Pure Water Tank → UV Sterilizer → Water Point
  2. Enhanced Path:
    Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Tank → Secondary RO → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter → Water Point



RO  Membrane  Photo:



User Friendly 500L/Hour Pure Water Systems For Food And Beverage Industry 0



III. Parameters

Item Specification
Electricity Supply 380V
Produced Water Quality Conductivity < 10μs/cm
Core Technology Double-stage Reverse Osmosis (RO)
Key Components RO Membrane Modules
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service  2-Year Warranty For Standard Equipment
Compliance Standards GB17324-2003 Hygienic Standard For Bottled (Barreled) Drinking Purified Water,GB5749-2006 Sanitary Standard For Drinking Water,CJ94-1999 Drinking Water Standard



IV. Design Advantages



  • Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.
  • Factory-Integrated Wiring: Reduces on-site installation and debugging time by completing all unit connections at our facility.
  • RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
  • Sanitary Materials: 304/316L stainless steel piping in both sanitary and non-sanitary designs, with automatic welding and endoscopic inspection for flawless hygiene.
  • Dual Sterilization Options: Choose between ambient temperature or hot water disinfection systems to meet hygiene standards.
  • Stainless Steel Pipe Automatic Welding & Endoscopic Inspection - Elevate Your Production with Precision and Efficiency.
  • Hygiene Guaranteed: Purified water storage tanks with breathing filters, along with UV sterilizers and microporous filters in the pipelines, ensure water quality remains pristine.
  • User - Friendly Operation: Integrated control and instrumentation systems make operation and management intuitive and straightforward.




V. Design Standards and Compliance



  1. Tailored Solutions: Customized designs based on your detailed water quality report, ensuring a perfect fit for your process.
  2. National Food Safety Standards: Compliant with GB 19298-2014 (Packaged Drinking Water) and GB 14881-2013 (General Hygienic Practices for Food Production).
  3. Industry Specifications: Aligned with JB/T 2932-1999 (Water Treatment Equipment), CJ/T119-2000 (RO Systems), and GB/T 12771-2019 (Stainless Steel Piping).
