4Tons/Hour Two Stage Ultrapure water Machine With RO and EDI for Optoelectronics

  • 4Tons/Hour Two Stage Ultrapure water Machine With RO and EDI for Optoelectronics
  • 4Tons/Hour Two Stage Ultrapure water Machine With RO and EDI for Optoelectronics
  • 4Tons/Hour Two Stage Ultrapure water Machine With RO and EDI for Optoelectronics
  • 4Tons/Hour Two Stage Ultrapure water Machine With RO and EDI for Optoelectronics
Place of Origin Shenzhen,China
ブランド名 HongJie
証明 ISO 14001,ISO 9001,CE,EPA
Model Number HJ-UP1T
Minimum Order Quantity 1set
価格 US$10000~US$12000
Packaging Details export standard wooden case
Delivery Time 5-10working days
Payment Terms T/T
Supply Ability >300sets/month

無料のサンプルとクーポンを私に連絡してください.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

24時間オンラインでサポートします

x
商品の詳細
Product name Ultrapure water machine Capacity 4T/Hour
Key Components RO Membrane Modules, EDI Units Size of frame(m) 3.5*1.5*2.2
Recovery Rate Primary RO ≥ 75%, Secondary RO ≥ 85% Material Carbon steel membrane
メッセージ
製品の説明

4Tons/Hour Two Stage Ultrapure water Machine With RO and EDI for Optoelectronics Module



I. Overview

Ultrapure water equipment is a precision water treatment system that removes impurities from water to trace levels through a multi-stage process involving pretreatment, reverse osmosis, and ultrapurification. The resulting water can have a resistivity exceeding 18 MΩ·cm, also known as soft water. Originating in the US semiconductor industry, this equipment is now widely used in electronics, medicine, and chemical industries, including chip manufacturing, high-precision material cleaning, and laboratory pure water production.



II. Process

Raw water → Raw water booster pump → Multi-media filter → Activated carbon filter → Water softener → Precision filter → First-stage reverse osmosis equipment → Intermediate water tank → Intermediate water pump → Ion exchanger → Purified water tank → Pure water pump → Ultraviolet sterilizer → Microporous filter → Water point

III:Working Principle
1. Water enters the purification system, with the majority flowing into the resin/membrane, while the remainder flows along the outside of the template, washing away ions that have passed through the membrane.
2. The resin retains dissolved ions in the water.
3. Under the action of the electrodes, the retained ions move toward the positive electrode (anions) and toward the negative electrode (cations).
4. Cations pass through the cation membrane and are discharged from the resin/membrane.
5. Anions pass through the anion membrane and are discharged from the resin/membrane.
6. Concentrated ions are discharged through the wastewater path.
7. Deionized water flows out of the resin/membrane.


IV.Parameters

Item Specification
Product name Ultrapure water machine
Produced Water Quality Conductivity < ≤1.3 μS/cm
Core Technology Double-pass Reverse Osmosis + EDI
Key Components RO Membrane Modules, EDI Units
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service 2-Year Warranty For Standard Equipment




IV:Photo for details

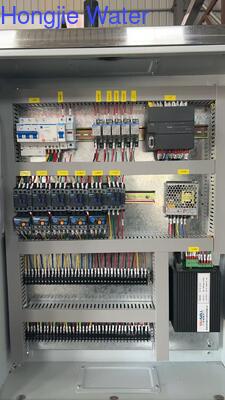

Company name,logo,contact information,website,all can be silkprinted on Electric control cabinet as your requirement.And all could be printed in English.

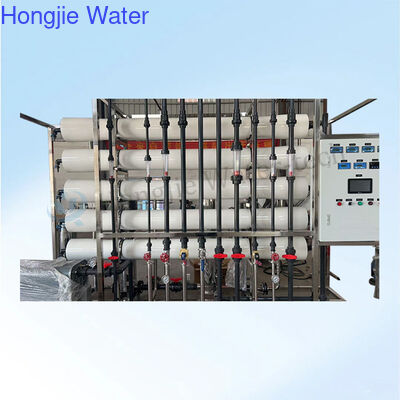

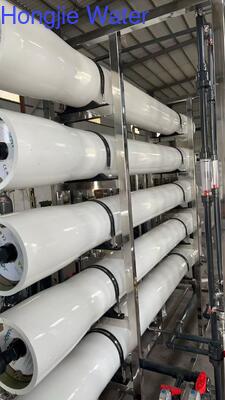

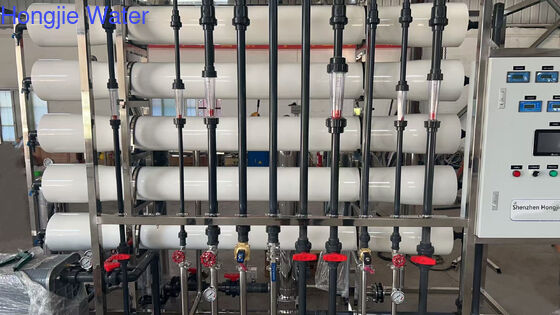

4Tons/Hour Two Stage Ultrapure water Machine With RO and EDI for Optoelectronics 0
4Tons/Hour Two Stage Ultrapure water Machine With RO and EDI for Optoelectronics 1
