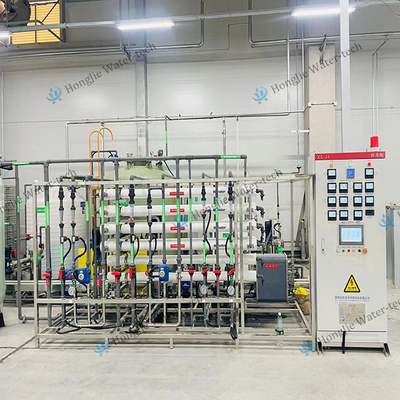

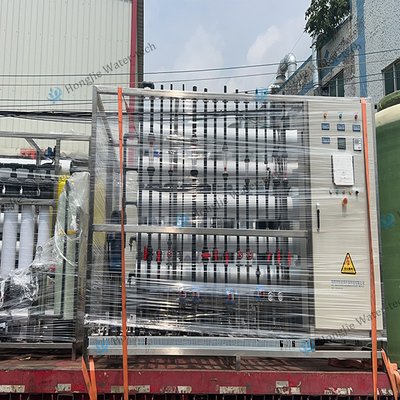

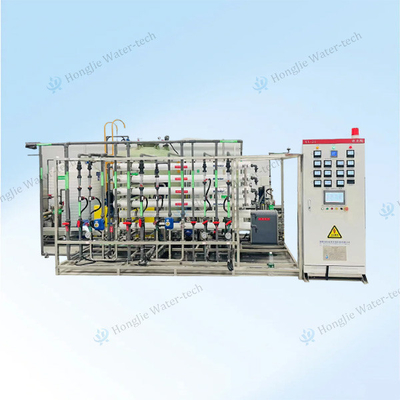

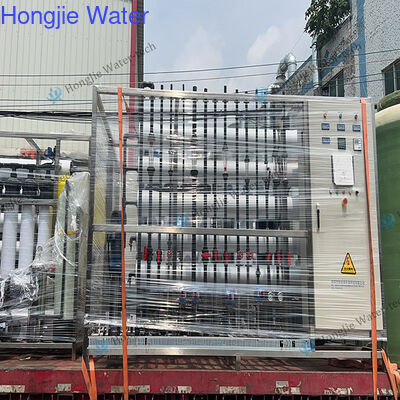

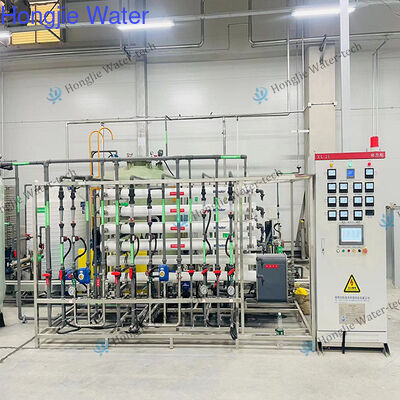

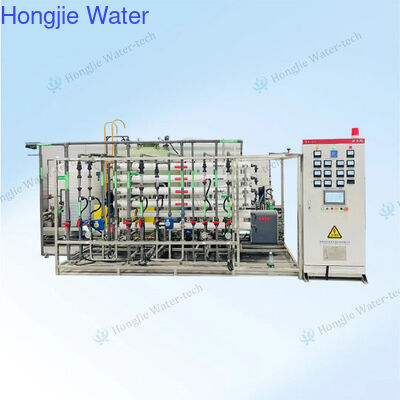

Ultra-pure water equipment is a specialized device that employs multi-stage precision treatment processes to remove nearly all impurities from water, including ions, organic compounds, colloids, microorganisms, particles, etc., thereby producing ultra-pure water with extremely high resistivity (typically ≥18 MΩ·cm at 25°C). Its core objective is to meet the requirements of industries and fields that are extremely sensitive to water quality, such as semiconductors, pharmaceuticals, precision electronics, and high-end scientific research.
II. Design Standards & Compliance
Custom Engineering: Based on your detailed water analysis report.
Industry Certifications:
NB/T 10790-2021 (Technical Specifications for Water Treatment Equipment)
GB/T 19249-2017 (Reverse Osmosis Water Treatment Equipment)
IEC 439-1 (Low Voltage Switchgear and Controlgear Assemblies)
GB 6682-2008 (Laboratory Ultra-Pure Water Standards)
GB/T 11446.1-2013 (Electronic Grade Water Specifications)
III. Process Flow Diagram
Standard Configuration:
Raw Water → Raw Water Tank → Booster Pump → Flocculant/Reducer Dosing → Activated Carbon Filter → Ultrafiltration (UF) → Scale Inhibitor Dosing → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage High-Pressure Pump → 2nd Stage RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → Cartridge Filter → EDI System → Ultra-Pure Water Tank → Transfer Pump → TOC Removal Unit → Polishing Resin → Final Filter → Point of Use
Process Highlights:

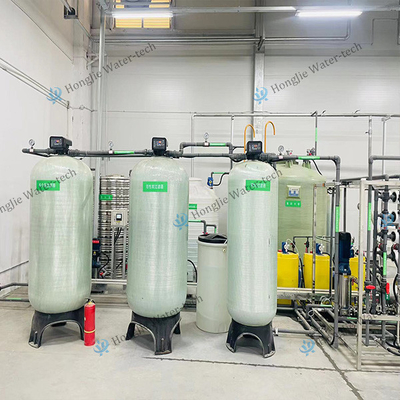

Multi-Stage Pretreatment: Removes particles, organics, and chlorine to protect RO membranes.

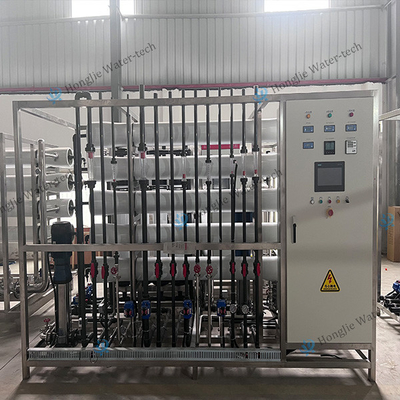

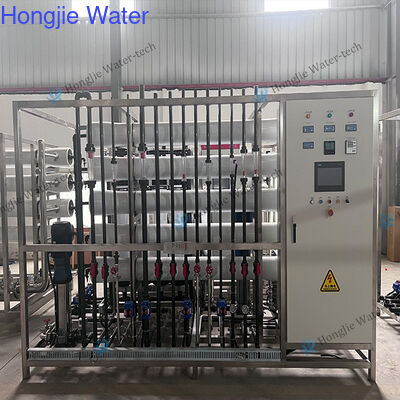

Dual RO System: Achieves salt rejection rate for consistent high-purity water.
EDI Technology: Continuous electro-deionization eliminates the need for chemical regeneration.
Polishing Resin: Final purification stage for ultralow TOC and ionic contaminants.
IV. Design Advantages
Fully Automated Control:
Automatic backwash and regeneration cycles.
Manual override option for maintenance.
Factory-Integrated Wiring:
Pre-wired components reduce on-site installation time .
Advanced Maintenance Features:
RO chemical cleaning system extends membrane life.
Recirculation loops ensure water quality stability.
Premium Materials:
304 stainless steel and UPVC piping for corrosion resistance.
Intuitive Operation:
Integrated control panel with real-time monitoring.
Remote access option for troubleshooting.
Low Maintenance:
Durable components designed for continuous operation.
Contact us today to discuss your specific requirements and receive a customized solution proposal.
Hongjie Water Technology - Your Trusted Partner for Semiconductor Ultra-Pure Water Solutions
