60T/Hour Industrial Ultrapure Water Systems With EDI For Semiconduct Industry

  • 60T/Hour Industrial Ultrapure Water Systems With EDI For Semiconduct Industry
  • 60T/Hour Industrial Ultrapure Water Systems With EDI For Semiconduct Industry
Place of Origin Guangdong,China
Brand Name HongJie
Certification ISO 14001,ISO 9001,CE,EPA
Model Number (HJ-UPWSe90T
Minimum Order Quantity 1Set
Price negotiation
Packaging Details export standard wooden case
Delivery Time 10-12working days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Industrial RO Water Purification System Flow Rate 60T/Hour
Core Process Double-pass Reverse Osmosis + EDI + Polishing Resin Key Components RO Membrane Modules, EDI Units
Material Stainless Steel/Glass Fiber After-Sales Service 2-Year Warranty For Standard Equipment
Filter Media Quartz Sand, Active Carbon, Softener Application Water Purification
Highlight

60T/Hour Ultrapure Water Systems

,

60T/Hour Industrial Water Systems

,

Industrial Water Systems With EDI
Leave a Message
Product Description

I. Product Introduction

Semiconductor ultrapure water equipment is used for cleaning components during semiconductor manufacturing and must meet specific water quality standards. The output water quality of semiconductor ultrapure water systems must comply with the ASTM (American Society for Testing and Materials) standards for pure water, China's electronic industry standards for electronic-grade water (18 MΩ·cm, 15 MΩ·cm, 10 MΩ·cm, 2 MΩ·cm, 0.5 MΩ·cm), water quality requirements for the semiconductor industry, and integrated circuit water quality standards.



II. Process and Specifications  of   HJ-UPWSe90T

Standard Configuration:
Raw Water → Raw Water Tank → Booster Pump → Flocculant/Reducer Dosing → Activated Carbon Filter → Ultrafiltration (UF) → Scale Inhibitor Dosing → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage High-Pressure Pump → 2nd Stage RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → Cartridge Filter → EDI System → Ultra-Pure Water Tank → Transfer Pump → TOC Removal Unit → Polishing Resin → Final Filter → Point of Use



III.Process Highlights:



  • Multi-Stage Pretreatment: Removes particles, organics, and chlorine to protect RO membranes.
  • Dual RO System: Achieves  salt rejection rate for consistent high-purity water.
  • EDI Technology: Continuous electro-deionization eliminates the need for chemical regeneration.
  • Polishing Resin: Final purification stage for ultralow TOC and ionic contaminants



IV.Specifications

Item Specification
Electricity Supply 380V
Produced Water Quality Resistivity ≥15-18.25 MΩ·cm
Core Technology Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components RO Membrane Modules, EDI Units
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service  2-Year Warranty For Standard Equipment



V. Design Advantages

  1. Fully Automated Control:
    • Automatic backwash and regeneration cycles.
    • Manual override option for maintenance.
  2. Factory-Integrated Wiring:
    • Pre-wired components reduce on-site installation time .
  3. Advanced Maintenance Features:
    • RO chemical cleaning system extends membrane life.
    • Recirculation loops ensure water quality stability.
  4. Premium Materials:
    • 304 stainless steel and UPVC piping for corrosion resistance.
  5. Intuitive Operation:
    • Integrated control panel with real-time monitoring.
    • Remote access option for troubleshooting.
  6. Low Maintenance:
    • Durable components designed for continuous operation.



V. Design Standards & Compliance

  1. Custom Engineering: Based on your detailed water analysis report.
  2. Industry Certifications:
    • NB/T 10790-2021 (Technical Specifications for Water Treatment Equipment)
    • GB/T 19249-2017 (Reverse Osmosis Water Treatment Equipment)
    • IEC 439-1 (Low Voltage Switchgear and Controlgear Assemblies)
    • GB 6682-2008 (Laboratory Ultra-Pure Water Standards)
    • GB/T 11446.1-2013 (Electronic Grade Water Specifications)

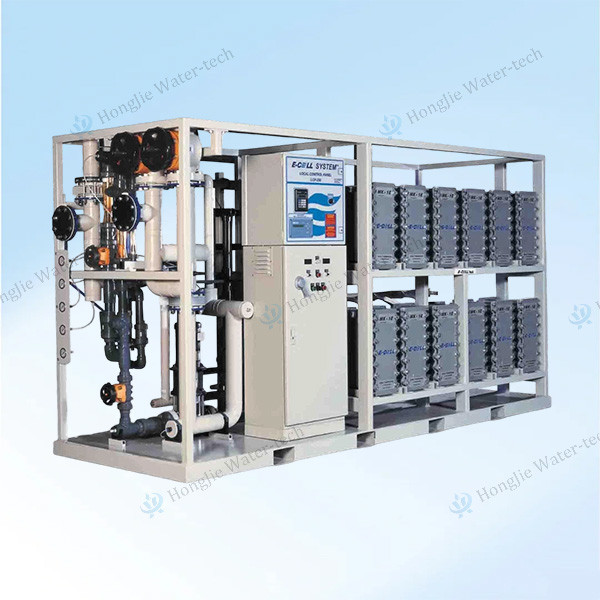

Photo:

60T/Hour Industrial Ultrapure Water Systems With EDI For Semiconduct Industry 0

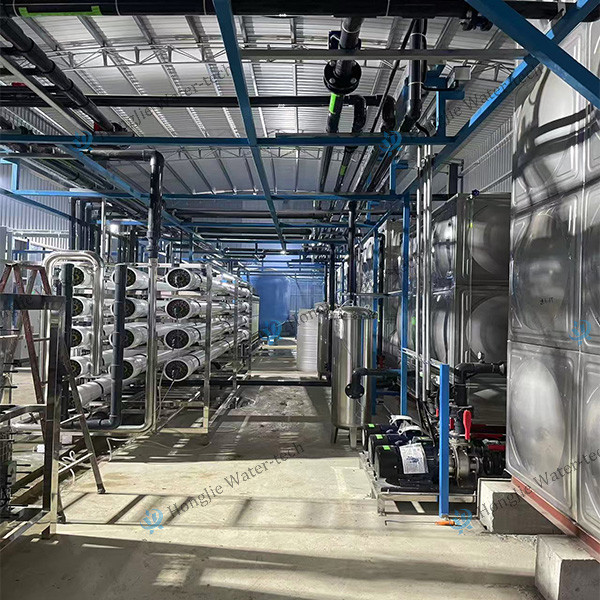

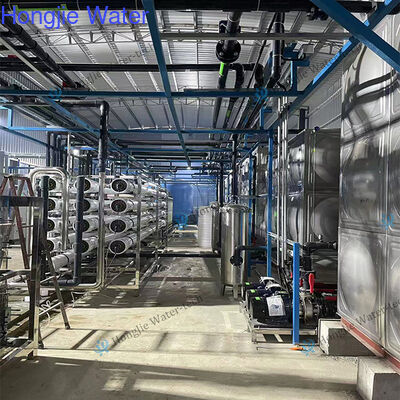

RO Photo:

60T/Hour Industrial Ultrapure Water Systems With EDI For Semiconduct Industry 1
