15M3/H High Purity Water & Deionized Water System For Display Cleaning

  • 15M3/H High Purity Water & Deionized Water System For Display Cleaning
  • 15M3/H High Purity Water & Deionized Water System For Display Cleaning
Place of Origin Shenzhen,China
Brand Name HongJie
Certification ISO 14001,ISO 9001,CE,EPA
Minimum Order Quantity >=1sets
Price negotiation
Packaging Details export standard wooden case
Delivery Time 1-7working days(depand on raw materials stocking)
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Water Treatment System Processing Reverse Osmosis Core Process Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components RO Membrane Modules, EDI Units Processing Pre-treatment+RO Desaliantion
Filter Media Sand+carbon+RO Operation Mode Fully Automatic
Highlight

15M3/H Deionized Water Equipment

,

High Purity Deionized Water Equipment

,

15M3/H Deionized Water System
Leave a Message
Product Description

I. Equipment Introduction

High-purity and ultrapure water are critical for manufacturing optoelectronic materials, LCD/PDP displays, microelectronics, PCBs, and integrated circuits (ICs). As IC integration increases, so do water quality demands, driving innovation in efficient, automated ultrapure water systems.


II. Process Flow

Raw Water - Raw Water Pressure Pump - Multi-media Filter - Activated Carbon Filter - Water Softener - Precision Filter - Primary Reverse Osmosis - pH Adjustment - Intermediate Water Tank - Secondary Reverse Osmosis - Purified Water Tank - Pure Water Pump - DI(CEDI ) - Water Point


III. Specifications

Item Specification
Productivity 15M³/H
Produced Water Quality Resistivity ≥15-18.25 MΩ·cm
Core Technology Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components RO Membrane Modules, EDI Units
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service  2-Year Warranty For Standard Equipment



IV. Design Features

  1. The system adopts full automatic control (manual control is also available), and the automatic backwash and regeneration procedures can be set during operation.
  2. All unit wiring is completed in the factory to reduce installation and debugging time.
  3. Both primary and secondary reverse osmosis systems are equipped with reflux pipelines, and the RO equipment is equipped with a chemical cleaning device.
  4. UPVC material is generally used for pipelines.
  5. Integrated control system and instrument system for convenient operation and management.
  6. RO membrane timing cleaning: The function of cleaning RO membrane upon startup and at fixed intervals extends the service life of RO membrane.
  7. Water recovery rate: Through special process design, the equipment recovery rate is significantly increased to 70%.
  8. The equipment has an automatic prompt function for consumable replacement, and the replacement cycle of consumables depends on changes in water quality and pressure rather than usage time, considering water quality differences in various regions.



V. Design Standards and Basis

  1. Customized based on the detailed water quality report provided by the user.
  2. Technical Conditions for Water Treatment Equipment
  3. Standard for Reverse Osmosis Water Treatment Equipment
  4. Low-voltage Switchgear and Control Gear Assemblies
  5. GB6682-2008 Technical Specifications for Ultra-pure Water in Laboratories
  6. GB/T11446.1-1997 Specifications for Electronic Grade Ultrapure Water


Photos:

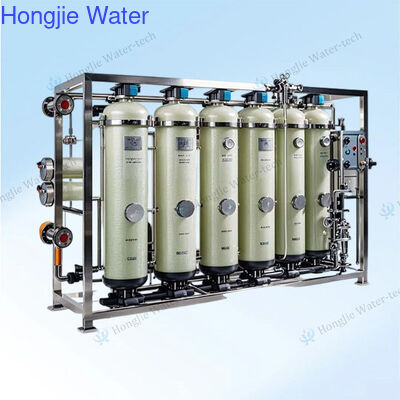

15M3/H High Purity Water & Deionized Water System For Display Cleaning 0

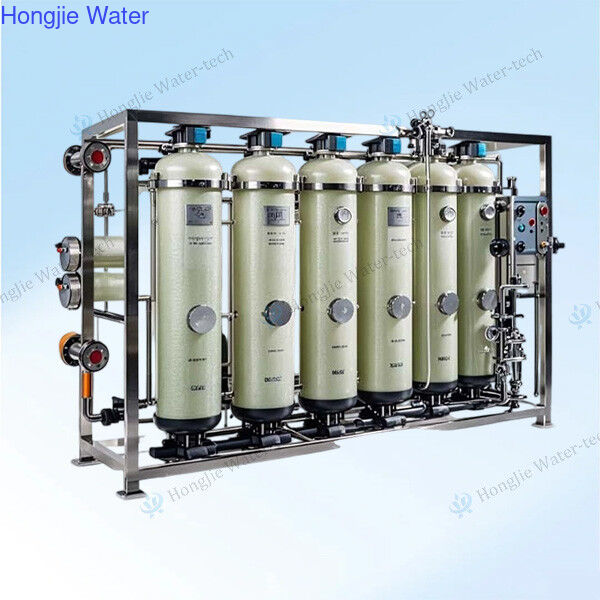

15M3/H High Purity Water & Deionized Water System For Display Cleaning 1
