20M3/H Integrated RO EDI Ultra Purified Water System For Biopharmaceutical Manufacturing

  • 20M3/H Integrated RO EDI Ultra Purified Water System For Biopharmaceutical Manufacturing
  • 20M3/H Integrated RO EDI Ultra Purified Water System For Biopharmaceutical Manufacturing
Place of Origin Guangdong,China
Brand Name HongJie
Certification ISO 14001,ISO 9001,CE,EPA
Minimum Order Quantity >=1sets
Price US$44000~US$44500
Packaging Details export standard wooden case
Delivery Time 1-7working days(depand on raw materials stocking)
Payment Terms L/C,D/P,T/T,Western Union
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flow Rate 20m³/h(Customizable) Water Quality Conductivity＜5us/cm
Core Process Double-pass Reverse Osmosis + EDI Core Components RO Membrane Modules, EDI Units
Operation Mode Fully Automated With PLC Control Product Features Stable Water Quality Output, Low Operational Costs
Industry Standard GMP Electricity Supply 380V
Highlight

RO EDI Ultra Purified Water System

,

20M3/H Ultra Purified Water System

,

20M3/H ultrapure water purification system
Leave a Message
Product Description

20 M³/H Integrated Reverse Osmosis-EDI ultra pure water Equipment for Biopharmaceutical Manufacturing

I. Equipment Overview

Water for biopharmaceutical production demands even stricter water quality requirements. To ensure the safety of water used in biopharmaceutical manufacturing, the entire system is constructed using all-stainless steel materials, and the final water delivery point is equipped with a sterilization device. The cleaning of production equipment and facilities consumes significant volumes of process water.



II. Process and Specifications  of  HJ-UPWPh20T

Raw Water → Raw Water Pressure Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Water Tank → Secondary RO → Intermediate Water Tank → Intermediate Water Pump → EDI System → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter →Pasteurization → Water Point



III.Specifications

Item Specification
Electricity Supply 380V
Produced Water Quality Resistivity ≥15-18.25 MΩ·cm
Core Technology Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components RO Membrane Modules, EDI Units
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service  2-Year Warranty For Standard Equipment



IV. Design Highlights

  • The system employs fully automatic control (with manual override capability). During operation, automatic backwash and regeneration programs can be configured.

  • All unit wiring is pre-completed at the factory, reducing installation and commissioning time.

  • Both primary and secondary Reverse Osmosis (RO) systems are equipped with recirculation pipelines. The RO unit includes chemical cleaning and sterilization/disinfection devices.

  • Piping utilizes 304/316L stainless steel materials with both sanitary and non-sanitary grade designs available.

  • The entire ultra-pure water treatment system is constructed of stainless steel, featuring smooth, flat, crevice-free surfaces for easy cleaning/sterilization, with corrosion resistance to prevent rust.

  • Directly produces sterile ultra-pure water from tap water, fully replacing distilled water and double-distilled water.

  • Automated welding of stainless steel pipes with borescope inspection.

  • Purified water storage tanks incorporate vent filters. Distribution piping is equipped with UV sterilizers and microporous filters to ensure water meets sanitary requirements.

  • Integrated control and instrumentation systems enable convenient operation and management.

  • Features online monitoring with timed printing and water quality alarm functions for abnormal parameters, safeguarding your production water supply.

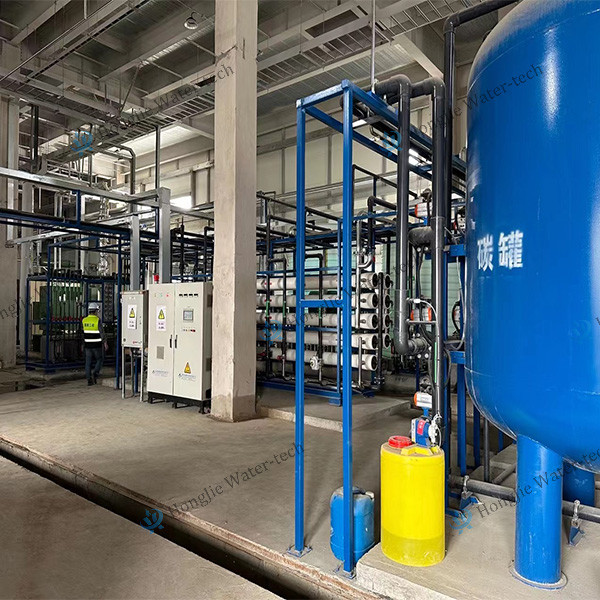

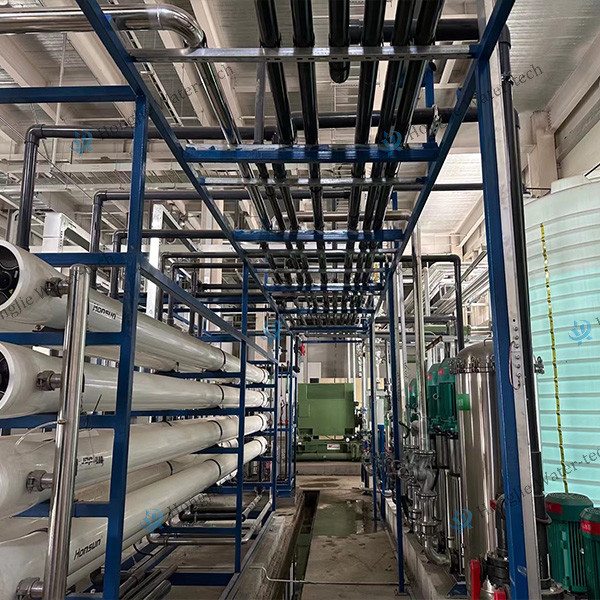

20M3/H Integrated RO EDI Ultra Purified Water System For Biopharmaceutical Manufacturing 0





V.Here  is a guideline for you to get a proper quotation

Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
