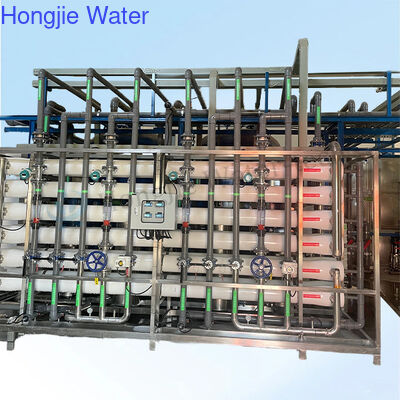

10m³/h Flow Rate Reverse Osmosis System with PLC Automatic Control and Stainless Steel Construction

Name: 10m³/h Flow Rate Reverse Osmosis System with PLC Automatic Control and Stainless Steel Construction
Brand: Shenzhen HongJie Water Technology Co., Ltd.
SKU: HJ-PWIn10T
Price: 25,000.00 USD
Availability: InStock

Brand Name:	Hongjie
Model Number:	HJ-PWIn10T
MOQ:	1set
Price:	US$20000~US$30000
Payment Terms:	T/T
Supply Ability:	>300sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO 14001,ISO 9001,CE,EPA

Production Capacity:

HJ-PWIn10T

Product Name:

Water Purification System

Flow Rate:

10,000 L/H (10 M³/h)

Core Technology:

One-stage Reverse Osmosis (RO)

Equipment Material:

Stainless Steel / FRP / Food-grade Pipelines

Operation Mode:

PLC Automatic Control With Monitoring Instruments

Core Components:

Gearbox, Pressure Vessel, Pump, PLC

Membrane Type:

High Rejection RO Membrane

Packaging Details:

export standard wooden case

Highlight:

10000LPH Pure Water Equipment

10000LPH industrial water treatment machine

Industrial Pure Water Equipment

Product Description

10m³/h Industrial Reverse Osmosis Pure Water System for Water-Based Ink and Coating Production

The 10,000 liters per hour pure water treatment system is specifically engineered to deliver high-quality process water for water-based ink and coating manufacturing applications. Water quality directly impacts product stability, color consistency, dispersion performance, and shelf life in these industries.

Treatment Process Flow

Raw Water → Raw Water Pump → Multi-Media Filter → Activated Carbon Filter → Water Softener → Precision Filter → Reverse Osmosis (RO) System → Pure Water Tank → Distribution Pump

Main Equipment Configuration

Raw Water Pump: Provides stable pressure and flow for the pretreatment system
Multi-Media Filter: Removes suspended solids, sediment, and turbidity to protect downstream equipment
Activated Carbon Filter: Eliminates chlorine, organic compounds, odors, and residual disinfectants that may affect membrane performance
Water Softening System: Reduces calcium and magnesium ions to prevent scaling on RO membranes
Precision Filter (5 μm): Provides final filtration before the RO system to remove fine particles
Reverse Osmosis (RO) System: Core purification unit that removes dissolved salts, heavy metals, microorganisms, and organic impurities
Pure Water Storage Tank: Stores treated water and ensures stable supply for production
Distribution Pump: Delivers purified water to production lines with stable pressure

Technical Specifications

Item	Specification
Production Capacity	HJ-PWIn10T
Flow Rate	10m³/H
RO Desalination Rate	≥ 98%
System Recovery Rate	60-75%
Product Water Conductivity	≤ 10 μS/cm
Product Water TDS	≤ 10 mg/L
Raw Water Turbidity	≤ 5 NTU

Industrial Applications

High-Quality Drinking Water: Meets demand for premium drinking water in residential communities with 24/7 purified water supply
Purified Water Production Plants: Compatible with automatic filling machines for complete bottled water production lines
Food Industry Raw Material Water: Ideal for mixing additives, ingredients, soups, or juices - improves taste, inhibits organic growth, and extends product shelf life
Dairy, Beverage and Wine Industry: Two-stage reverse osmosis configuration recommended to prevent taste issues from water impurities
Chemical Industry Water: Used for chemical raw liquid proportioning, product manufacturing, and circulating water systems - prevents additional reactions and quality deviations from excessive ions
Power Industry Boiler Water: Supplies pure water for boiler systems in factories and mining operations, improving efficiency and extending equipment lifespan

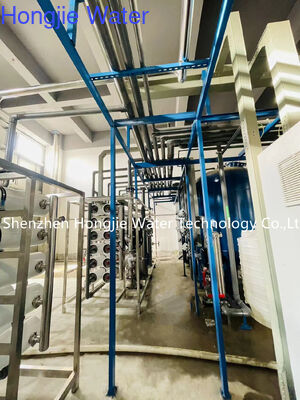

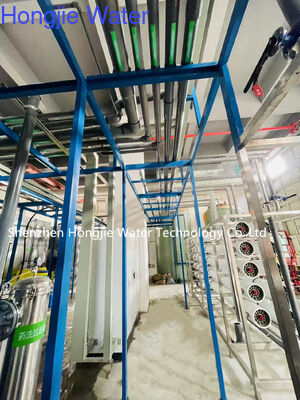

Installation Example
