Industrical 5TPH Reverse Osmosis Equipment RO Water Treatment System
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hongjie |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Model Number | HJ-UP1T |
| Minimum Order Quantity | 1set |
| Price | negotiation |
| Packaging Details | export standard wooden case |
| Delivery Time | 1-7working days(depend on raw materials stocking) |
| Payment Terms | T/T,Western Union |
| Supply Ability | >300sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V, 220V/50HZ Etc; (Power Supply Can Be Customized) | Warranty | 1 Year |
|---|---|---|---|
| Control | Automatic Or Manual | Power | 2-10 Kw |
| Material | SU304 Steel, Container | Capacity | 1m3-1000m3/Day |
| Usage | Water Purification | Core Components | Gearbox, Pressure Vessel, Pump, Gear, Bearing, Engine, Motor, PLC |
Product Description

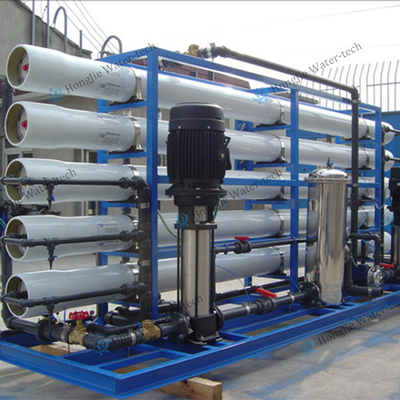

Industrical 5TPH Reverse Osmosis Equipment RO Water Treatment System
I.Product Specification
|
Function |
Drinking water, Bottle water, Industrial water, Commercial water |
|
|
System |
Reverse osmosis system, Ultrafiltration system, EDI ultrapure system, Water reuse system, Seawater desalination, Brackish water |
|
|
Capacity |
250/500/750/1000LPH, 2TPH, 3TPH, 4TPH, 5TPH, etc |
|
|
Voltage |
380V, 220V/50HZ etc; (Power supply can be Customized) |
|
|
Power |
2-10 kw |
|
|
Raw Water |
TDS ≤ 1000PPM |
|
|
Produced water quality |
Conductivity ＜10μs/cm |
|
|
Desalination rate |
96-99% |
|
|
Water recovery rate |
50-70% |
|
|
Work pressure |
Pretreatment: 0.2—0.4MPa, RO host: 0.8—1.6Mpa |
|
|
Material |
FRP tank, Stainless steel 304, PVC pipe, |
|
|
Control |
Automatic or manual |
|
|
Process |
Quartz sand filter → Activated carbon filter → Water softener → High pressure pump → Ro system → UV → Ozone generator |
|
II.Product Overview
Reverse osmosis (RO) is a process that separates pure water from contaminants through one or more layers of fine-porous semipermeable membranes. This technology is essential in most water purification systems. It is considered a highly effective method for removing impurities from water, such as toxic heavy metals like lead and radium, mercury, chlorinated pesticides, organic matter, turbidity, dissolved solids, bacteria, and viruses.
III.Product Flowchart
Raw water - Raw water tank - Raw water pump - Sand filter - Carbon filter - Water softener (optional) - Security filter - Booster pump - Reverse osmosis system - Water tank - Booster pump - EDI - Transfer pump - Polishing resin - Pure water tank - Water supply point
IV. Replacement Time for Consumable Parts
a. Quartz sand: Replace approximately every 15 months.
b. Activated carbon: Replace approximately every 15 months.
c. Resin: Replace approximately every 15 months.
d. PP filter element: Replace approximately every month.
e. RO membrane: Replace approximately every 2 years.
We recommend that customers purchase a 1-2 year old PP filter element with the machine, as these filters need to be replaced monthly.
ldentify needs
Clarify the following issues, you can determine the right equipment for you
Water quality problems
Example 1: sediment exceeds the standard / scale / turbid water / microbial exceeds the standard/ heavy metal exceeds the standard / money Yu exceeds the standard, etc.
Water standard
Example 1:Softened water/pure water/ultra-pure water/iron and manganese removal/sediment removal/sterilisation etc.
Daily Water Consumption
Example 1:Whether there is a concentrated water consumption period/water consumption time/peak maximum water consumption/hourly average water consumption
Conclusion Example
5 tonnes per hour water softening equipment.
3 tonnes per hour reverse osmosis water purification equipment
If you can't answer the above questions clearly?
1.Daily Water Consumption:Just mail a bottle of water sample
2.Water Standard:Just tell me your industry.
3.Water Consumption:We can help you to calculate the water consumption.
