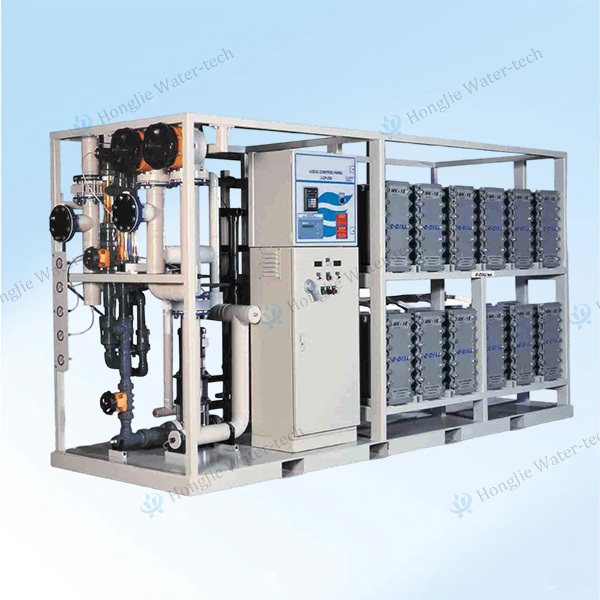

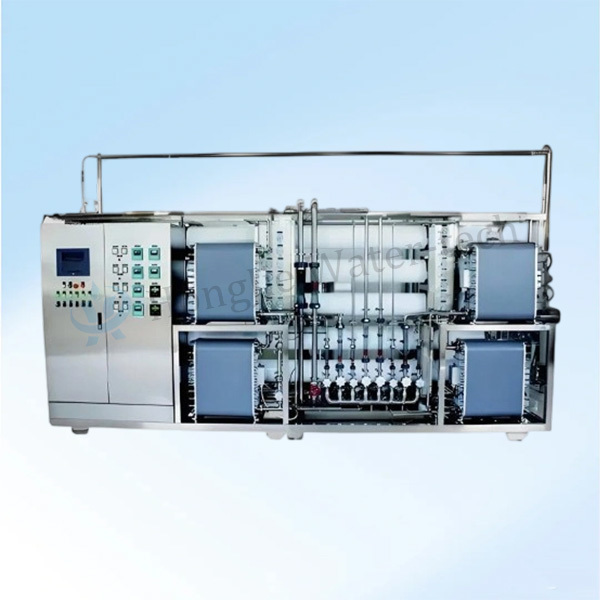

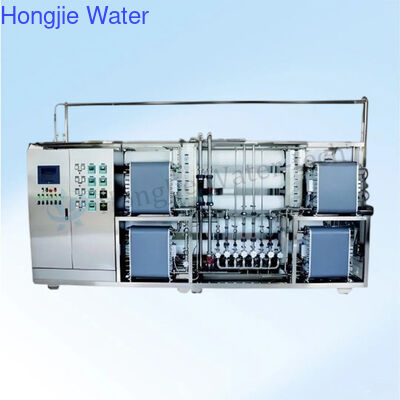

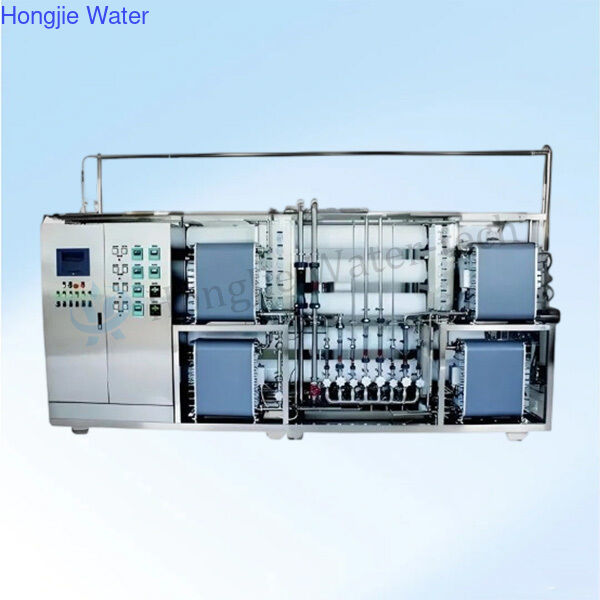

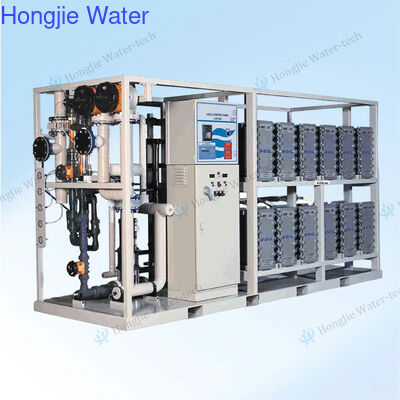

5000L/H Ultrapure Water System with EDI for Industrial Use
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V, 220V/50HZ Etc; (Power Supply Can Be Customized) | Warranty | 1 Year |
|---|---|---|---|
| Control | Electric Auto Control (PLC ) | Desalination Rate | ≥ 99% |
| Material | Stainless Steel 304/Fiberglass | Productivity | 5000L/Hour |
| Product Name | Ultrapure Water System | Core Components | Pump, Engine, Motor, PLC |
| Highlight | 5000L/H ultrapure water system,EDI industrial water system,ultrapure water equipment with EDI |
||
Product Description
5000L/Hour Ultra-Filtration System With EDI For Industrial & Lab Water Treatment
I.Product concept
The EDI (continuous electro-deionization) module is cleverly integrated after the reverse osmosis system as an advanced alternative to traditional mixed-bed ion exchange (MB-DI). This innovative process continuously delivers highly stable ultrapure water, meeting the stringent demands of modern industry and laboratories.
Compared to traditional mixed-bed systems, EDI offers significant advantages:
Stable and reliable water quality: consistently ensuring excellent and consistent purification results
Intelligent control: fully automated operation, simplified management
Continuous regeneration: online regeneration without downtime
Environmentally friendly: no reliance on chemical reagents, no secondary pollution
Economically efficient: reduced operating and maintenance costs
Compact design: modular construction, smaller footprint
II.Product Parameters
|
Parameters |
RO/EDI-5T |
|
Machine Size(L*W*H) |
6500mm/850mm/2200mm |
|
Control mode |
Fully automatic operation |
|
Device power |
AC/380V/50HZ |
|
Raw water pump |
Q=12m³/H H=30m |
|
First-stage high-pressure pump |
Q=12m³/H H=100m |
|
Two-stage high-pressure pump |
Q=8m³/H H=80m |
|
Reverse osmosis membrane vessels |
3 core 8 inches |
|
EDI booster pump |
Q=6m³/H H=30m |
|

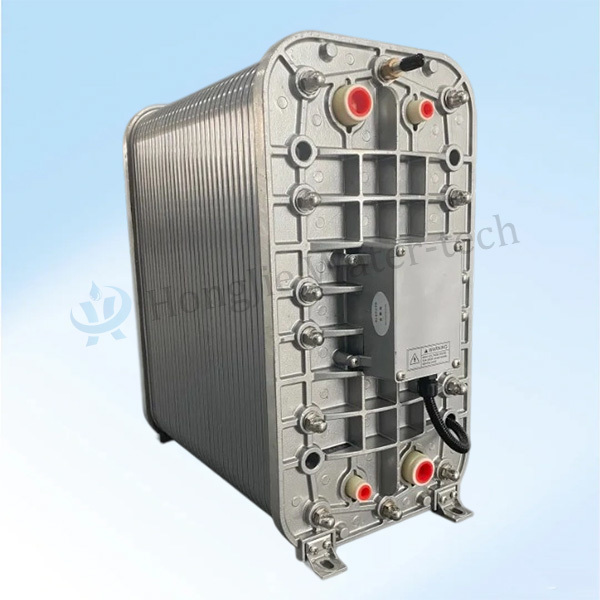

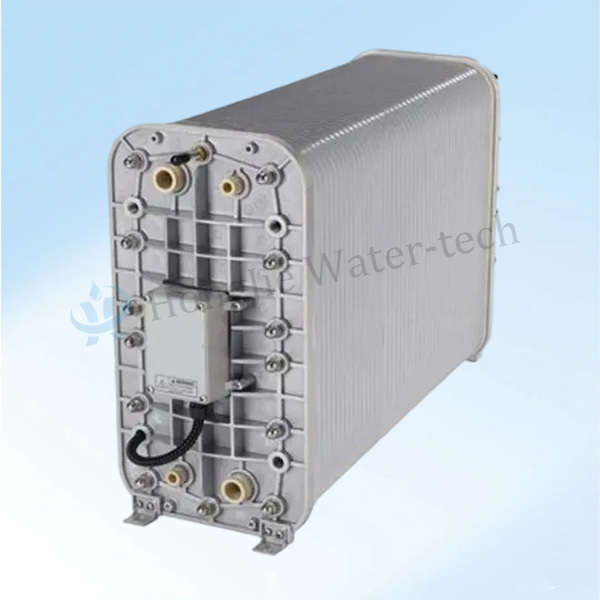

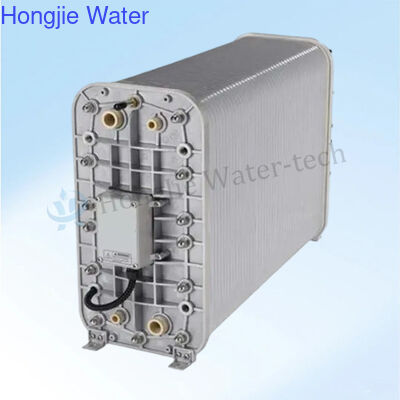

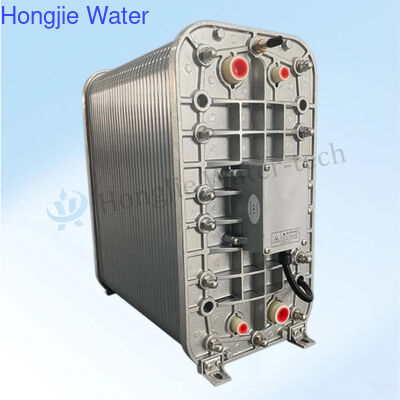

EDI module |
5000L/H |
|
Quartz sand filter |
φ1000×2200mm |
|
Activated carbon filter |
φ1000×2200mm |
|
Precision filters |
7 core 40 inches |
|
Precision filter element |
40''5μm |
|
Scale inhibitor/PH dosing pump |
Q=1L/H H=50m |
|
Scale inhibitor/PH dosing box |
40L |
|
Primary reverse osmosis membrane |
8040 |
|
Secondary reverse osmosis membrane model |
8040 |
III.Product application
Pharmaceuticals and Biotechnology: Purified water preparation/process water, CIP/dosing water; Electronics and Semiconductors: Ultrapure water pretreatment and final polishing for cleaning/etching/electroplating;
Laboratory and Analytical: Instrument feed water (ICP/MS, HPLC, TOC, etc.), central pure water room;
Power Generation and Boiler: Boiler feed water, turbine cooling feed water;
Food and Beverage: Formulation water, sterile cleaning water;
Chemicals and Surface Treatment: Electrophoretic coating, fine chemicals, catalyst preparation; Other: Photovoltaics, coatings and inks, precision manufacturing cleaning, etc.
ldentify needs
Clarify the following issues, you can determine the right equipment for you
Water quality problems
Example 1: sediment exceeds the standard / scale / turbid water / microbial exceeds the standard/ heavy metal exceeds the standard / money Yu exceeds the standard, etc.
Water standard
Example 1:Softened water/pure water/ultra-pure water/iron and manganese removal/sediment removal/sterilisation etc.
Daily Water Consumption
Example 1:Whether there is a concentrated water consumption period/water consumption time/peak maximum water consumption/hourly average water consumption
Conclusion Example
5 tonnes per hour water softening equipment.
3 tonnes per hour reverse osmosis water purification equipment
If you can't answer the above questions clearly?
1.Daily Water Consumption:Just mail a bottle of water sample
2.Water Standard:Just tell me your industry.
3.Water Consumption:We can help you to calculate the water consumption.
