5T/H Ultrapure Water System with Stainless Steel 304/Fiberglass Construction and ≥99% Desalination Rate
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V, 220V/50HZ Etc; (Power Supply Can Be Customized) | Warranty | 1 Year |
|---|---|---|---|
| Control | Electric Auto Control (PLC ) | Desalination Rate | ≥ 99% |
| Material | Stainless Steel 304/Fiberglass | Productivity | 5000LPH / Custom |
| Product Name | Ultrapure Water System | Filter Media | Sand+carbon+softener+RO+EDI |
| Highlight | 5T/H Ultrapure Water System,Stainless Steel 304/Fiberglass Ultrapure Water System,≥99% Desalination Rate Ultrapure Water System |
||
Product Description
5TH Ultrapure Water Production System For Laboratory & Industrial Applications
I.Product Description
The 5T/H Ultrapure Water Production System is designed to deliver high-quality ultrapure water for laboratory, pharmaceutical, and industrial applications. Utilizing advanced reverse osmosis (RO), deionization (DI), and UV sterilization technologies, this system ensures water meets stringent purity standards. The fully automated design allows for continuous operation, minimal maintenance, and consistent water quality. Ideal for research labs, electronics manufacturing, and other industries requiring high-purity water.
II.Flowchart
Raw Water → Pre-treatment → Reverse Osmosis (RO) → Deionization (DI) → UV Sterilization → Ultrapure Water Tank → Distribution System
- Raw Water Source: Municipal water, well water, or purified water

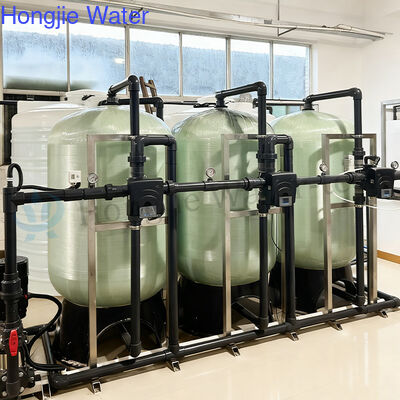

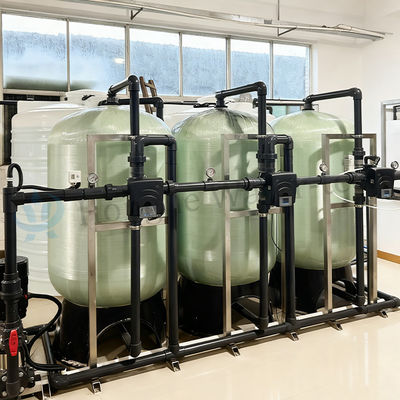

- Pre-treatment: Sand filter, carbon filter, and softener to remove particulates, chlorine, and hardness
- Reverse Osmosis (RO): High-efficiency RO membranes remove dissolved salts and impurities
- Deionization (DI): Mixed bed resin further removes ions to achieve ultrapure standards

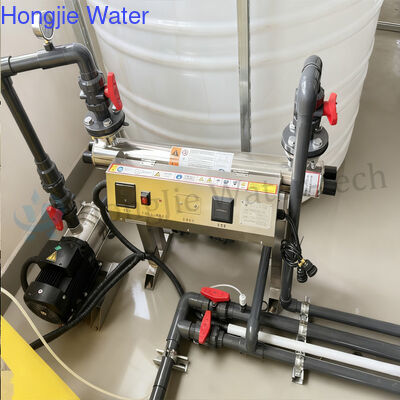

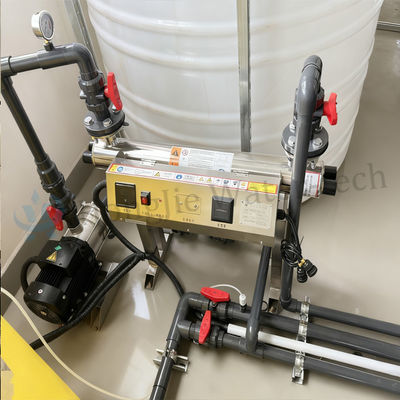

- UV Sterilization: 185/254nm UV lamps for microbial control and TOC reduction
- Ultrapure Water Tank: Storage with a circulation pump to maintain water quality
- Distribution System: Piping network for delivery to point-of-use applications
III.Specification
|
Parameter |
Specification |
|
Capacity |
5 T/H (5000 L/H) |
|
Product Water Quality |
Resistivity: ≥18.2 MΩ·cm; TOC: ≤5 ppb; Bacteria: <1 CFU/mL |
|
Feed Water Quality |
TDS ≤2000 ppm; Hardness ≤500 ppm; Free Chlorine ≤0.5 ppm |
|
Pre-treatment |
Multimedia filter, Activated Carbon, Water Softener |
|
RO Membrane |
High-rejection RO membranes, recovery rate 50–70% |
|
Deionization |
Mixed bed resin with high-capacity DI columns |
|
UV Sterilization |
185/254 nm UV lamp for TOC reduction and sterilization |
|
Storage Tank |
SS304/316L tank, capacity customizable |
|
Control System |
PLC automatic control, touch screen interface |
|
Operating Voltage |
380V/50Hz (customizable) |
|
Footprint |
Approx. 12 m² (varies by configuration) |
|
Optional Features |
Continuous monitoring, remote control, and alarm system |
Identify needs
Clarify the following issues, and you can determine the right equipment for you.
Water quality problems
Example 1: sediment exceeds the standard/scale / turbid water / microbial exceeds the standard/ heavy metal exceeds the standard/money Yu exceeds the standard, etc.
Water standard
Example 1:Softened water/pure water/ultra-pure water/iron and manganese removal/sediment removal/sterilisation, etc.
Daily Water Consumption
Example 1:Whether there is a concentrated water consumption period/water consumption time/peak maximum water consumption/hourly average water consumption
Conclusion Example
5 tonnes per hour water softening equipment.
3 tonnes per hour reverse osmosis water purification equipment
If you can't answer the above questions clearly?
1. Daily Water Consumption: Mail a bottle of water sample
2. Water Standard: Just tell me your industry.
3. Water Consumption: We can help you calculate the water consumption.
