2000L/H Two Pass RO EDI Ultra Pure Water Treatment System with 18.2 MΩ*cm Resistivity and Compact Skid-Mounted Design

  • 2000L/H Two Pass RO EDI Ultra Pure Water Treatment System with 18.2 MΩ*cm Resistivity and Compact Skid-Mounted Design
  • 2000L/H Two Pass RO EDI Ultra Pure Water Treatment System with 18.2 MΩ*cm Resistivity and Compact Skid-Mounted Design
Place of Origin Shenzhen,China
Brand Name Hongjie
Certification ISO 14001,ISO 9001,CE,EPA
Model Number HJ-UP1T
Minimum Order Quantity 1set
Price negotiation
Packaging Details export standard wooden case
Delivery Time 7-10 working days
Payment Terms T/T,Western Union
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 380V, 220V/50HZ Etc; (Power Supply Can Be Customized) Warranty 1 Year
Control Electric Auto Control (PLC ) Desalination Rate ≥ 99%
Material Stainless Steel 304/Fiberglass Productivity 2TPH / Custom
Product Name Ultrapure Water System Filter Media Sand+carbon+softener+RO+EDI
Highlight

18.2 MΩ*cm Resistivity Ultra Pure Water Treatment System

,

Two Pass RO EDI Ultrapure Water System

,

Compact Skid-Mounted RO EDI Water System
Leave a Message
Product Description

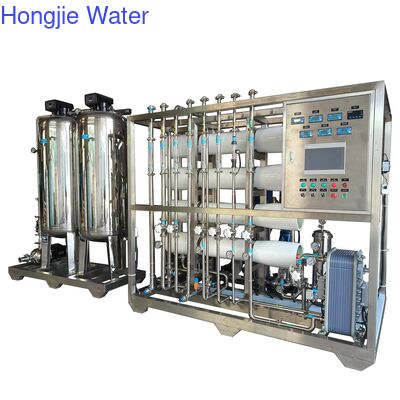

2000L/H Two Pass RO EDI Ultra Pure Water Treatment System SS304 Material

I.Product Overview

The 2000L/H Two Pass RO EDI Ultra Pure Water Treatment System is a high-performance water purification solution designed to produce ultra pure water for industrial and laboratory applications. The system combines double pass reverse osmosis (RO) and electrodeionization (EDI) technologies to achieve superior water quality with resistivity up to 18.2 MΩ·cm, meeting the most stringent purity standards.

Constructed with high-grade SS304 stainless steel, this equipment ensures excellent corrosion resistance, durability, and hygiene. The modular design allows easy operation, maintenance, and integration with existing production lines.

II.System Features

Capacity: 2000 liters per hour

Material: SS304 stainless steel for frame and piping

Process: Two Pass RO + EDI (Electrodeionization)

Water Quality: Up to 18.2 MΩ·cm resistivity

Control System: Fully automatic PLC control with touchscreen HMI

Pretreatment Compatibility: Can be integrated with multimedia filters, activated carbon filters, and softeners

Design: Compact skid-mounted structure, easy installation and maintenance

III.EDI feed water requirements

RO water production, conductivity 10 μ s / cm.
PH range 7.5-9
Temperature 15℃--35℃
Inlet water pressure 0.15-0.4MPa
Concentrated water inlet water pressure 0.10-0.3MPa
Production water pressure 0.05-0.25MPa
Concentrated water outlet pressure 0.02-0.2MPa
Inlet water hardness <1.0ppm (calculated by CaCO)
Inlet organics TOC<0.5ppm
Inlet silicon SiO2<0.5ppm
Inlet total CO2 <3ppm
Particle size of inlet water <1um

2000L/H Two Pass RO EDI Ultra Pure Water Treatment System with 18.2 MΩ*cm Resistivity and Compact Skid-Mounted Design 0

2000L/H Two Pass RO EDI Ultra Pure Water Treatment System with 18.2 MΩ*cm Resistivity and Compact Skid-Mounted Design 1

Identify needs

Clarify the following issues, and you can determine the right equipment for you.

Water quality problems

Example 1: sediment exceeds the standard/scale / turbid water / microbial exceeds the standard/ heavy metal exceeds the standard/money Yu exceeds the standard, etc.

Water standard

Example 1:Softened water/pure water/ultra-pure water/iron and manganese removal/sediment removal/sterilisation, etc.

Daily Water Consumption

Example 1:Whether there is a concentrated water consumption period/water consumption time/peak maximum water consumption/hourly average water consumption

Conclusion Example

5 tonnes per hour water softening equipment.

3 tonnes per hour reverse osmosis water purification equipment

If you can't answer the above questions clearly?

1. Daily Water Consumption: Mail a bottle of water sample

2. Water Standard: Just tell me your industry.

3. Water Consumption: We can help you calculate the water consumption.
