20m³/H Capacity Reverse Osmosis Pure Water System with High Desalination Rate for Industrial Use

20m³/H Capacity Reverse Osmosis Pure Water System with High Desalination Rate for Industrial Use

Brand Name:	Hongjie
Model Number:	HJ-ROFB1500L
MOQ:	1set
Price:	negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	>300sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO 14001,ISO 9001,CE,EPA

Material:

Carbon Steel/304/316 Stainless Steel

Name:

Pressure Water Purification Equipment

Processing Capacity:

1-500T/H(customizable)

Configuration:

Secondary Stage

System:

One For Operation,one For Back Up

EDI:

4 For Use,2 For Backup

Packaging Details:

export standard wooden case

Highlight:

20m³/H Capacity Reverse Osmosis Pure Water System

High Desalination Rate RO Water Treatment Machine

Industrial Use Pure Water Equipment

Product Description

20m³/H Reverse Osmosis Pure Water System

Industrial-grade water treatment system with high desalination rate for lithium battery production

Product Overview

This 20T/H ultrapure water treatment unit is specifically engineered for the lithium battery industry. It combines advanced reverse osmosis (RO) technology with EDI deionization in a primary and secondary RO configuration with EDI to meet stringent water quality requirements. The system features a "one for operation, one for backup" design concept to ensure stable operation and continuous water supply.

Key Features

Capacity: 20 tons per hour of pure water output
Multi-stage pretreatment for membrane protection and extended lifespan
High-quality RO membranes with excellent salt rejection performance
Automatic control system for easy and safe operation
Corrosion-resistant stainless steel frame and high-pressure pipeline design
Optional UV sterilizer or ozone disinfection for enhanced water quality

Technical Specifications

Item	Specification
Capacity	20,000 L/h (20 Ton per Hour)
Raw Water Source	Tap water, well water, or municipal water
Raw Water TDS	≤ 2000 ppm
Water Recovery Rate	60-75% (depending on raw water quality)
Desalination Rate	≥ 98%
Conductivity of Pure Water	≤ 10 μS/cm
Power Supply	AC 380V / 50Hz / 3 Phase (customizable)
Control System	PLC automatic control with touch screen (Siemens / Delta optional)
RO Membranes	DOW / Hydranautics / Toray (8-inch membranes)
High-Pressure Pump	CNP / Grundfos / Nanfang optional
Pre-filtration	Quartz sand filter + Activated carbon filter + Water softener
Membrane Housing	FRP / Stainless steel optional
Frame Material	SUS304 stainless steel
Piping Material	UPVC / Stainless steel optional
Operating Pressure	1.0 - 1.5 MPa
Ambient Temperature	5 - 45°C
Optional Components	UV sterilizer, Ozone generator, Pure water tank, CIP cleaning system

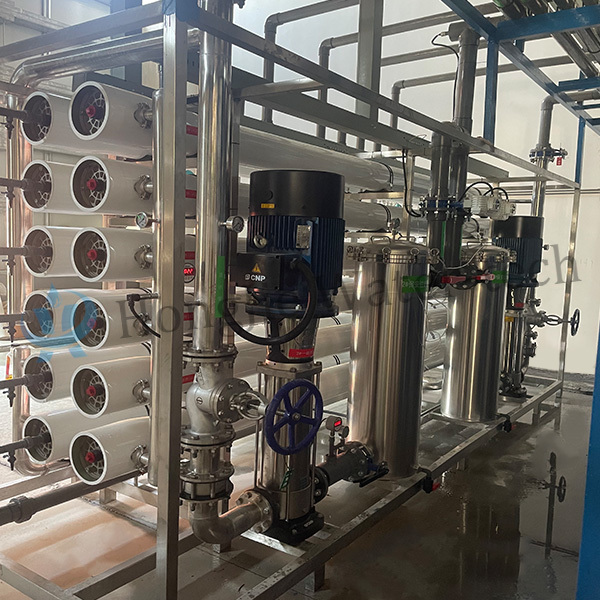

20m³/H Reverse Osmosis Pure Water System industrial water treatment equipment

Frequently Asked Questions

Which machine should I choose?

Selection depends on your raw water quality and permeate water requirements. Systems typically include pretreatment (UF system, anti-scale dosing, flocculant dosing, disinfectant dosing, water softener, sand filter, carbon filter, security filter), RO machine, and post-treatment (UV sterilizer, Ozonizer, ClO2 sterilizer). We design the proper process according to your specific water quality needs.

What's your machine material?

Pretreatment tanks typically use FRP or stainless steel. RO frames can be stainless steel or carbon steel. Piping is usually stainless steel and UPVC. We can customize materials according to your specific requirements.

What's the control method?

Pretreatment can be manual or automatic. The complete system uses relay, PLC, or man-machine interface remote control options.

Which spare parts need to be changed regularly?

Filter cartridges in the security filter and RO membranes require regular replacement. Filter cartridges typically need changing every 3-6 months, while RO membranes last 1-3 years depending on water quality and maintenance practices.

What's your warranty?

We provide a 2-year warranty. Based on our experience, our machines typically operate for 5 years before requiring significant repairs.

What's your electricity requirement?

Our machines support 380V/220V/110V, 50HZ/60HZ, 3 phase/single phase configurations. We offer custom solutions to meet your specific electrical requirements.

What's your machine size?

Size depends on capacity requirements. We can customize dimensions to fit your available space.

What's your membrane brand?

We work with various membrane brands, with Dow being the most commonly used. We can provide specific brands as requested by customers.
