Sainless Steel Panel Mounted Water Conductivity Tester For Pure Water Equipment

  • Sainless Steel Panel Mounted Water Conductivity Tester For Pure Water Equipment
  • Sainless Steel Panel Mounted Water Conductivity Tester For Pure Water Equipment
  • Sainless Steel Panel Mounted Water Conductivity Tester For Pure Water Equipment
  • Sainless Steel Panel Mounted Water Conductivity Tester For Pure Water Equipment
Place of Origin Shenzhen,China
Brand Name Hongjie
Certification ISO 14001,ISO 9001,CE,EPA
Minimum Order Quantity 1set
Price negotiation
Packaging Details Carton packaging
Delivery Time 1-7working days
Payment Terms T/T
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Resistivity Test Meter Material Sainless Steel
Display Mode 3 1/2-digit LCD Display Type Industrial Conductivity Meter
Usage Analysis Ec, Tds Installation Method Panel-mounted
Highlight

Panel mounted Water Conductivity Tester

,

Sainless steel Water Conductivity Tester
Leave a Message
Product Description

I.Production  Overview

A resistivity meter, also known as a resistivity monitor, is an online panel-mounted instrument that simultaneously displays resistivity and temperature, with a low-resistivity alarm function. It is widely used in industries such as pharmaceuticals, electronics, and chemicals for online monitoring of industrial process water quality. Utilizing single-chip microcomputer technology, it allows free setting of the temperature coefficient of pure water, electrode constant, and low-resistivity alarm threshold via panel buttons, making it an ideal supporting instrument for various small and medium-sized pure water equipment.



II.Structural Composition

A resistivity meter mainly consists of five parts: (1) a data acquisition system, (2) a signal generator and amplifier, (3) a transformer, (4) a sample mold, and (5) a small current sensor.


III.Main Technical Indicators

Technical Indicator Specification
Measurement range 0～18.25 MΩ·cm
Accuracy 2.0% (FS)
Stability ±2×10⁻³ (FS)/24h
Medium temperature 5～50℃
Temperature compensation Automatic compensation based on 25℃
Display mode 3 1/2-digit LCD display
Control output mode ON/OFF relay output
Relay load capacity AC 230V/5A Max; AC 115V/10A Max
Power supply AC 220V±10% 50Hz
Environmental conditions Temperature 0～50℃, relative humidity ≤85% RH
Matching electrode 0.05 cm⁻¹ constant metal electrode
Dimensions 48×96×100 mm (height × width × depth)
Mounting hole size 45×91 mm (height × width)
Installation method Panel-mounted



IV:Photo

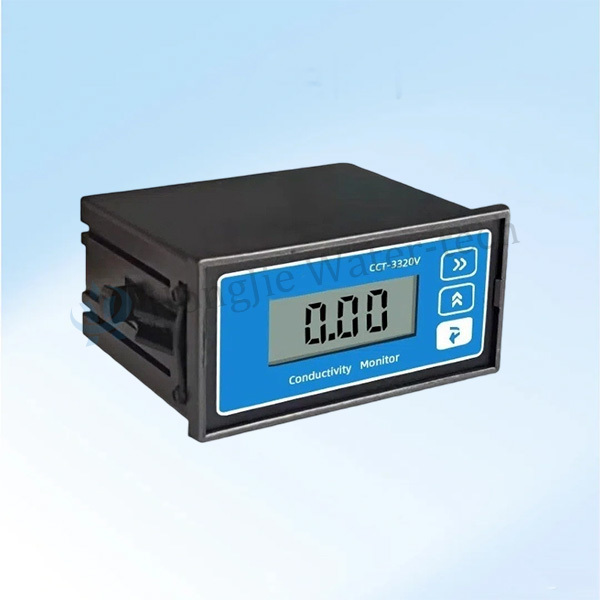

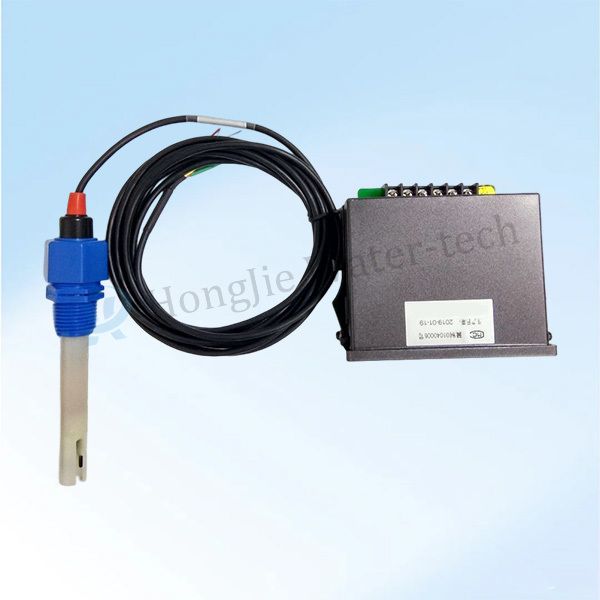

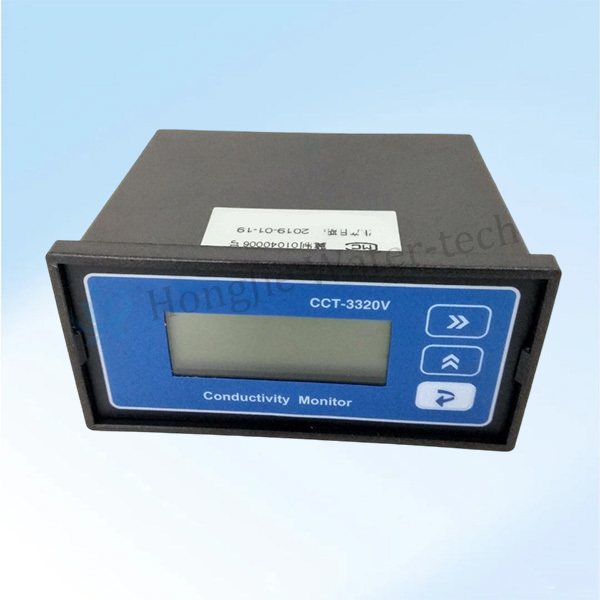

Sainless Steel Panel Mounted Water Conductivity Tester For Pure Water Equipment 0
