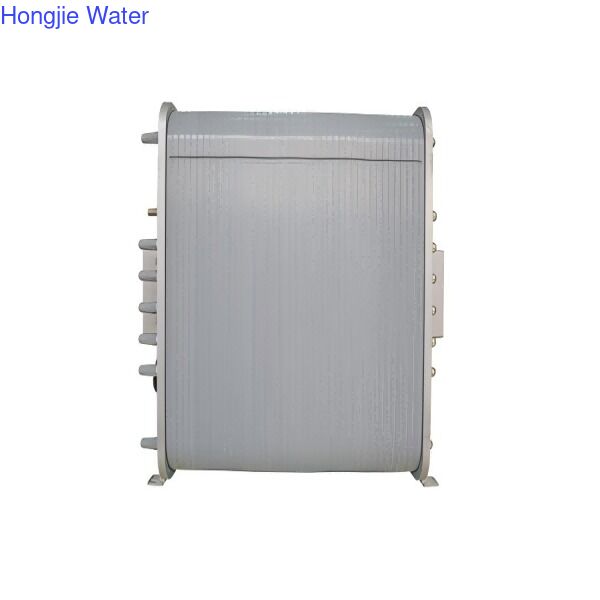

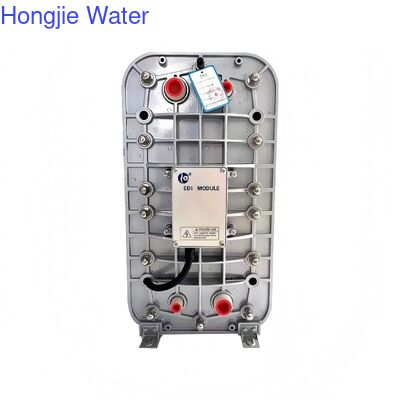

HJ-LX-Z industrial membrane stack is specifically designed for industrial applications. The HJ LX-Z membrane stack can reliably produce high-purity water with stable quality without operational interruption due to regeneration. It can be applied in the power, HP/CPI, electronics, food and beverage industries as well as laboratories.
II.Parameters
Operating Parameters
Specifications
Recovery Rate
90-95%
Maximum Allowable Inlet Pressure
7bar (100psi)
Maximum Allowable Inlet Temperature
45℃ (113℉)
Pressure Drop Range at Nominal Flow
1.4-2.1bar (20-30psi)
Product Water Resistivity
>16MΩ·cm (see notes below)
Silica (SiO₂) Removal Rate
90-99%, depending on inlet water conditions
III.Features
The quality of produced water is equal to or better than that of mixed bed produced water, and no chemical agents are required;
Continuous water production with stable water quality and no fluctuation;
No acid-base neutralization or acid-base storage tanks required;
Patented fully filled concentrated water chamber, no need for salt addition or concentrated water circulation;
Capable of continuous operation at 100 PSI and 45 degrees Celsius;
Double O-ring seal to ensure no leakage;
Superb electrical insulation performance;
Operating costs are much lower than traditional ion exchange.
