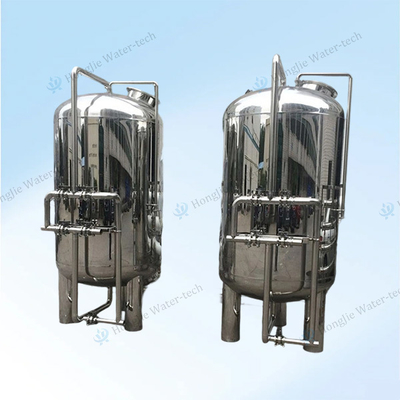

304 / 316 Stainless Steel Sand Carbon Tank Filter 60m3/H Water Treatment Equipment Accessories
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hongjie |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Minimum Order Quantity | ＞1set |
| Price | negotiation |
| Packaging Details | export standard wooden case |
| Delivery Time | 1-7working days(depand on raw materials stocking) |
| Payment Terms | D/P,T/T,Western Union,L/C |
| Supply Ability | >300sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | SUS304，316L | Capacity | 60m³/h(Customizable) |
|---|---|---|---|
| Corrosion Resistance | 304：Cr 18% - 20%, Ni 8% - 10.5%；316：contains 2% - 3% Mo | Mechanical Strength | 304:205 MPa~515 MPa；316：215 MPa~550 MPa |
| Working Pressure | 304/316：≤ 0.6 MPa (Test Pressure ≥ 0.9 MPa)； | Material Composition | 304：Cr 18% - 20%, Ni 8% - 10.5%, C ≤ 0.08%；316：Cr 16% - 18%, Ni 10% - 14%, Mo 2% - 3%, C ≤ 0.03% |
| Chloride Ion (Cl⁻) Limit | 304：≤ 200 Ppm ；316：≤ 1000 Ppm | After Service | 2-Year Warranty Maintenance |
| Highlight | Carbon Tank Filter 60m3/H,316 Stainless Steel Carbon Tank Filter |
||
Product Description
304 / 316 Stainless steel sand carbon tank filter 60m3/h water treatment equipments accessories
I.Overview
Stainless steel sand carbon filters are the “steel guardians” of water treatment systems, and their reliability and chemical inertness are crucial for protecting downstream precision equipment such as RO membranes and EDI modules. Stainless steel sand carbon filters are core pre-treatment equipment in industrial water treatment systems, particularly widely used in industries with stringent water quality requirements such as semiconductors, pharmaceuticals, and food and beverage. They remove impurities through a dual mechanism of “physical interception + chemical adsorption,” providing a solid foundation for subsequent deep purification processes such as reverse osmosis (RO) and ion exchange.
II.Core Application Scenarios
Semiconductor ultrapure water preparation systems
Food and beverage process water treatment
Pharmaceutical industry purified water (PW) systems
Industrial circulating cooling water systems
III.Core Advantages and Core Attribute Parameters of 304 Stainless Steel
| Characteristics | |||||
| Corrosion Resistance | Resistant to weak acid/alkali/fresh water corrosion (Cr 18% - 20%, Ni 8% - 10.5%) | ||||
| Mechanical Strength | Tensile strength 515 MPa, Yield strength 205 MPa | ||||
| Economy | 30% - 50% lower cost, suitable for conventional water quality pretreatment | ||||
| Application Scenarios | Food/pharmaceutical pretreatment, inland water plants, low - chlorine environments | ||||
| Sanitary Safety | Passed GB 4806.9 food contact certification, no heavy metal leaching risk | ||||
| Parameters | |||||
| Material Composition | Cr 18% - 20%, Ni 8% - 10.5%, C ≤ 0.08% | ||||
| Working Pressure | ≤ 0.6 MPa (Test pressure ≥ 0.9 MPa) | ||||
| Chloride Ion (Cl⁻) Limit | ≤ 200 ppm (long - term use) | ||||
| Surface Treatment | Mirror polishing (Ra ≤ 0.8μm) or wire - drawing treatment | ||||
| Filtration Flow Rate | 8 - 12 m/h (double - layer filter media design) | ||||
| Backwash Intensity | Quartz sand layer: 15 - 18 L/s·m²; Activated carbon layer: 10 - 12 L/s·m² | ||||
IV.Core Advantages and Core Attribute Parameters of 316 Stainless Steel
| Characteristics | |||||
| Corrosion Resistance | Enhanced resistance to chlorine ion corrosion (contains 2% - 3% Mo), resistant to seawater, salt spray, and chemical media | ||||
| Mechanical Strength | Higher strength (Tensile strength 550 MPa, Yield strength 215 MPa), resistant to high - pressure deformation | ||||
| Economy | Higher price, but longer service life than 304 (in harsh environments)water quality pretreatment | ||||
| Application Scenarios | Coastal/chemical industry/seawater desalination, high - chlorine/high - TOC water sources | ||||
| Sanitary Safety | Same safety level, and better anti - biofilm adhesion | ||||
| Parameters | |||||
| Material Composition | Cr 16% - 18%, Ni 10% - 14%, Mo 2% - 3%, C ≤ 0.03% | ||||
| Working Pressure | ≤ 0.6 MPa (same pressure rating, but higher chlorine ion tolerance) | ||||
| Chloride Ion (Cl⁻) Limit | ≤ 1000 ppm (suitable even under conditions like seawater with Cl⁻ ≈ 19,000 ppm) | ||||
| Surface Treatment | Mirror polishing (Ra ≤ 0.8μm) or wire - drawing treatment, inner wall can be coated with Teflon (resists strong acid adsorption) | ||||
| Filtration Flow Rate | 8 - 12 m/h (double - layer filter media design) | ||||
| Backwash Intensity | Quartz sand layer: 15 - 18 L/s·m²; Activated carbon layer: 10 - 12 L/s·m² , backwash cycle extended by 20% (due to reduced filter media fouling) |
||||
V.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
