The filter element is a new type of precision filter element, which has the characteristics of small size, large filtering area, high precision, no pollution, easy installation and replacement, etc. Because it adopts microporous membrane filtration, it has low adsorption and will not retain filtrate. It also has wide chemical compatibility and wide applicability. The connector of the filter element adopts the internationally common form: the end cap is 226, 222, and flat, and the port is triangular fin and flat.

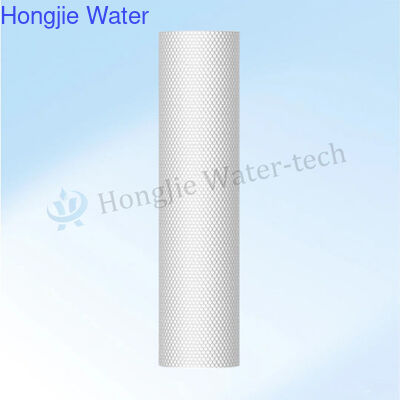

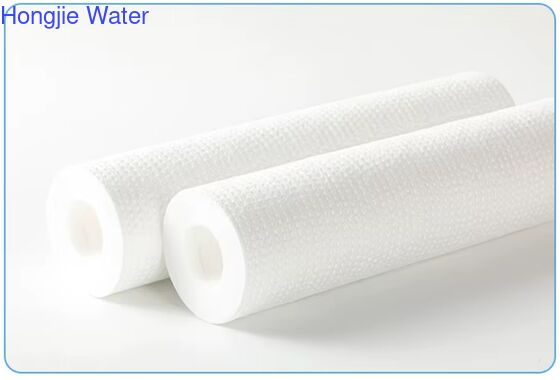

PP cotton filter element
Not only used in large-scale water purification. It also has outstanding chemical compatibility and is suitable for filtering strong acids, strong alkalis and organic solvents. It has strong dirt holding capacity, long service life and low cost.
Functions and features
1. Can effectively remove various particles in the liquid;
2. Multi-layer depth structure, large dirt holding capacity;
3. Large filtration flow rate and small pressure difference;
4. Remove any chemical adhesives, more hygienic and safe;
5. Resistant to acids, alkalis, organic solutions, and oils, with good chemical stability;
6. Collect surface, deep layer, coarse and fine filtrate depth; has the characteristics of large flow rate, corrosion resistance and high pressure resistance. Thereby reducing large particles such as rust, silt, and insect eggs in the water.
II:Application
1. Pharmaceutical industry: pre-filtration of various injections, liquid medicines and injection bottle washing water, large infusions and pre-filtration of various antibiotics and Chinese medicine injections. Food industry: filtration of alcohol, beverages and drinking water.
2. Electronics industry: pre-filtration of pure water and ultrapure water.
3. Petroleum and chemical industry: filtration of various organic solvents, acids and alkalis, and filtration of oil field water injection.
4. PP melt-blown filter elements can be widely used for liquid filtration in industries such as pure water, electroplating liquid, printed circuit boards, solvents, coatings, detergents, medical water, oral industry, pharmaceutical injections, beverages, alcohol, etc., and filtration of compressed air and gas.
III. Specifications
Item
Specification
Production Name
PP contton
Model

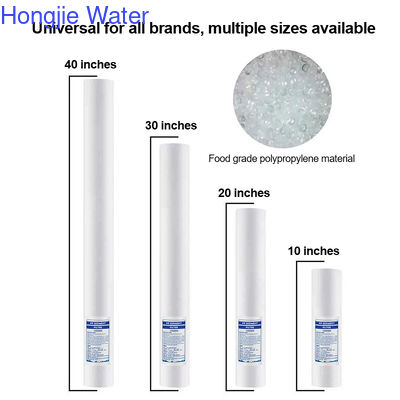

20 Inches ,30inches,40inches
Filtration accuracy
1um ,5um
Material
Food grade polypropylene PP
Weight
200g,300g,400g
Replacement cycle
Depend on actual situation
Function
Efficiently intercept particulate impurities such as sediment,rust,and water in the water
