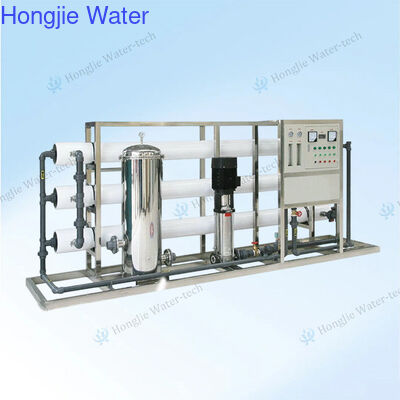

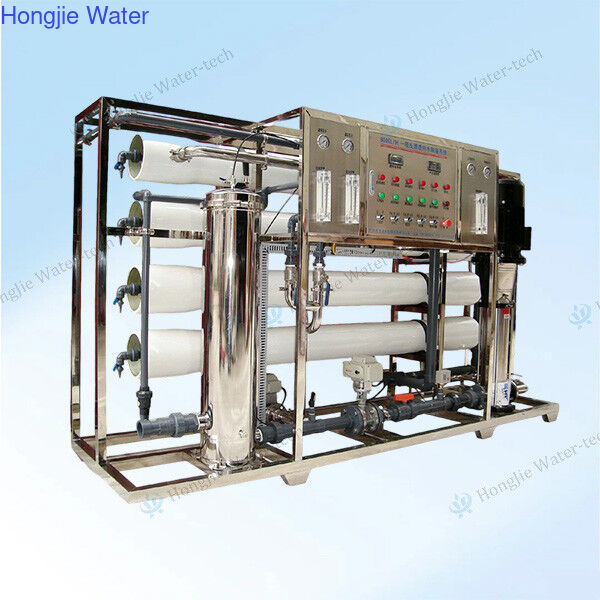

Tailor Made Purified Water Reverse Osmosis System 0.25m3/H~200m3/H

  • Tailor Made Purified Water Reverse Osmosis System 0.25m3/H~200m3/H
  • Tailor Made Purified Water Reverse Osmosis System 0.25m3/H~200m3/H
  • Tailor Made Purified Water Reverse Osmosis System 0.25m3/H~200m3/H
  • Tailor Made Purified Water Reverse Osmosis System 0.25m3/H~200m3/H
Place of Origin Shenzhen,China
Brand Name Hongjie
Certification ISO 14001,ISO 9001,CE,EPA
Minimum Order Quantity ≥1sets
Price negotiation
Packaging Details export standard wooden case
Delivery Time 1-7working days(depand on raw materials stocking)
Payment Terms T/T
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flow Rate 0.25m³/h - 200m³/h (customizable ) Produced Water Quality Conductivity < 10μs/cm
Core Technolog Double-stage Reverse Osmosis (RO) Key Components RO Membrane Modules
Operation Mode Full Automatic (PLC-controlled) Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service 2-Year Warranty For Standard Equipment (excluding Consumables) Power Supply 380V
Highlight

Purified Water Reverse Osmosis System 0.25m3/H

,

Tailor Made purified water system
Leave a Message
Product Description

I. Equipment Overview

Reverse osmosis systems are commonly used for pure water production and are primarily applied in industries such as beverages, winemaking, dairy products, fermentation, and food processing. These industries typically require pre-treated or purified water that meets strict quality standards, usually with a conductivity of less than 10 μS/cm



II. Process Flow

  1. Standard Path:
    Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → Pure Water Tank → UV Sterilizer → Water Point
  2. Enhanced Path:
    Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Tank → Secondary RO → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter → Water Point



III. Parameters

Item Specification
Electricity Supply 380V
Produced Water Quality Conductivity < 10μs/cm
Core Technology Double-stage Reverse Osmosis (RO)
Key Components RO Membrane Modules
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service  2-Year Warranty For Standard Equipment
Compliance Standards GB17324-2003 Hygienic Standard For Bottled (Barreled) Drinking Purified Water,GB5749-2006 Sanitary Standard For Drinking Water,CJ94-1999 Drinking Water Standard



RO membrane Photo:

Tailor Made Purified Water Reverse Osmosis System 0.25m3/H~200m3/H 0



IV.Design Advantages

  • Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.
  • Factory-Integrated Wiring: Reduces on-site installation and debugging time by completing all unit connections at our facility.
  • RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
  • Sanitary Materials: 304/316L stainless steel piping in both sanitary and non-sanitary designs, with automatic welding and endoscopic inspection for flawless hygiene.
  • Dual Sterilization Options: Choose between ambient temperature or hot water disinfection systems to meet hygiene standards.
  • Stainless Steel Pipe Automatic Welding & Endoscopic Inspection - Elevate Your Production with Precision and Efficiency.
  • Hygiene Guaranteed: Purified water storage tanks with breathing filters, along with UV sterilizers and microporous filters in the pipelines, ensure water quality remains pristine.
  • User - Friendly Operation: Integrated control and instrumentation systems make operation and management intuitive and straightforward.



V. Design Standards and Compliance

  1. Tailored Solutions: Customized designs based on your detailed water quality report, ensuring a perfect fit for your process.
  2. National Food Safety Standards: Packaged Drinking Water (GB 19298 - 2014),and GB 14881-2013 (General Hygienic Practices for Food Production).
  3. Industry Specifications: Aligned with JB/T 2932-1999 (Water Treatment Equipment), CJ/T119-2000 (RO Systems), and GB/T 12771-2008 (Stainless Steel Piping).
