Full Automatic Industrial RO Plant 50m3/H Reverse Osmosis Water Filtration System

Industrial RO Plant of 50m³/h Reverse Osmosis System

I. Industrial RO System  Description

In the industrial field, reverse osmosis has been upgraded from a basic desalination tool to a core separation technology in process industries. Through membrane material innovation (graphene/high-temperature resistant membranes), process coupling (FO-RO/HPRO-evaporation), and intelligent control (AI + digital twin), it realizes efficient resource recovery, significant reduction in energy consumption, and zero-emission processes. Its penetration rate in high-end industries such as electronics, pharmaceuticals, and new energy continues to increase. In the future, it will be deeply expanded towards special separation (such as lithium extraction) and low-carbon manufacturing..

II. Process and Specifications  of   HJ-ROFB50T

Process

1.Standard Path:
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → Pure Water Tank → UV Sterilizer → Water Point
2.Enhanced Path:
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Tank → Secondary RO → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter → Water Point

III.Specifications

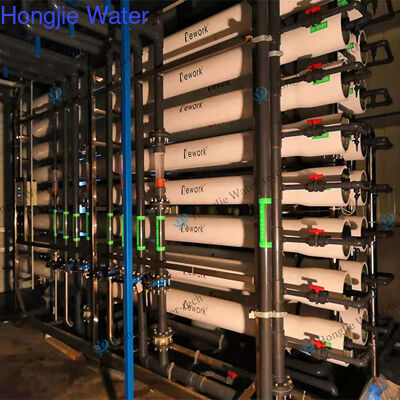

RO  Membrane  Photo:

IV. Design Advantages

Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.
Factory-Integrated Wiring: Reduces on-site installation and debugging time by completing all unit connections at our facility.
RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
Sanitary Materials: 304/316L stainless steel piping in both sanitary and non-sanitary designs, with automatic welding and endoscopic inspection for flawless hygiene.
Dual Sterilization Options: Choose between ambient temperature or hot water disinfection systems to meet hygiene standards.
Stainless Steel Pipe Automatic Welding & Endoscopic Inspection - Elevate Your Production with Precision and Efficiency.
Hygiene Guaranteed: Purified water storage tanks with breathing filters, along with UV sterilizers and microporous filters in the pipelines, ensure water quality remains pristine.
User - Friendly Operation: Integrated control and instrumentation systems make operation and management intuitive and straightforward.

V. Design Standards and Compliance

Tailored Solutions: Customized designs based on your detailed water quality report, ensuring a perfect fit for your process.
National Food Safety Standards: Compliant with GB 19298-2014 (Packaged Drinking Water) and GB 14881-2013 (General Hygienic Practices for Food Production).
Industry Specifications: Aligned with JB/T 2932-1999 (Water Treatment Equipment), CJ/T119-2000 (RO Systems), and GB/T 12771-2019 (Stainless Steel Piping).

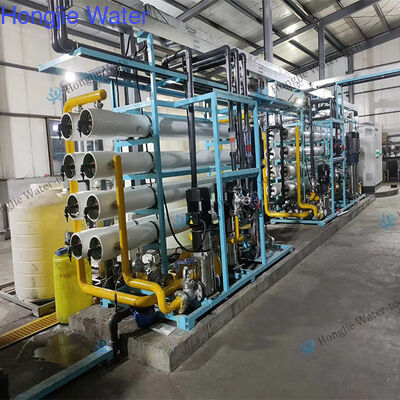

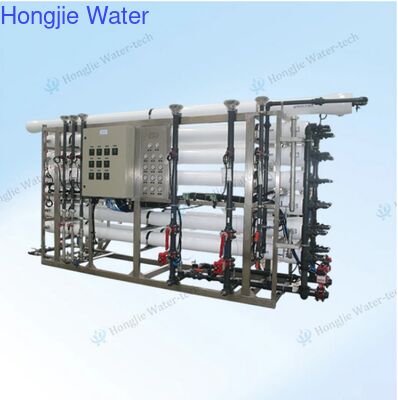

VI.Product display

VII. Here is a guideline for you to get a proper quotation

Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
