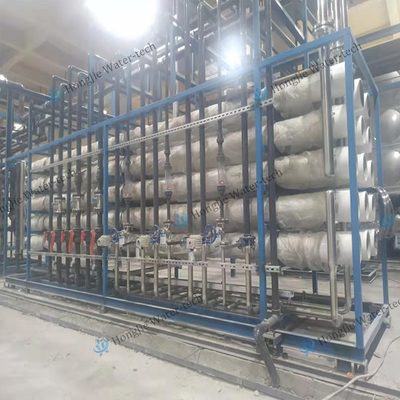

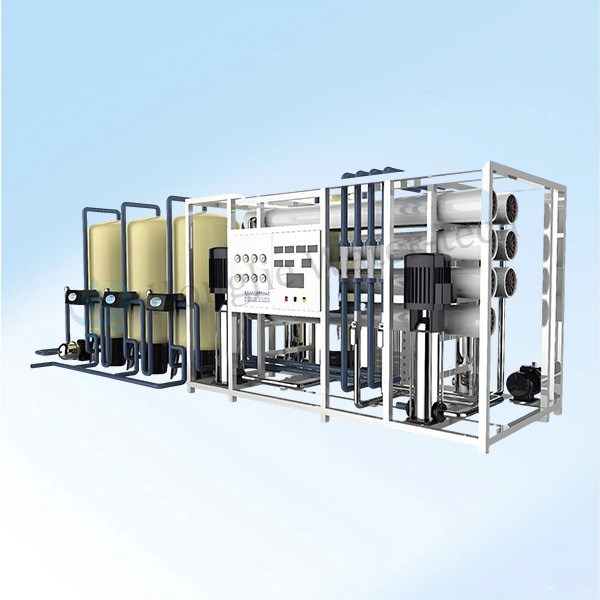

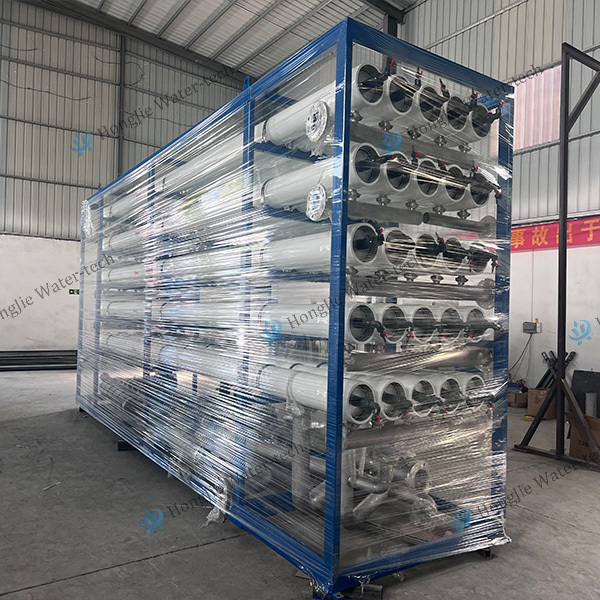

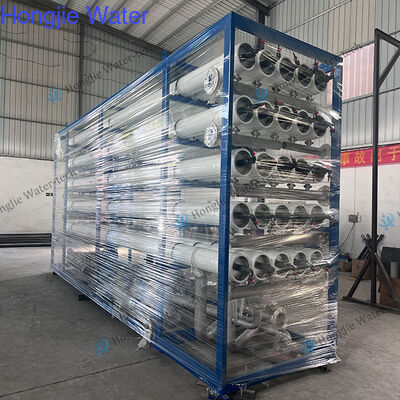

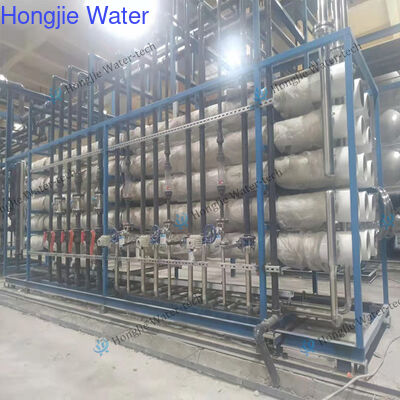

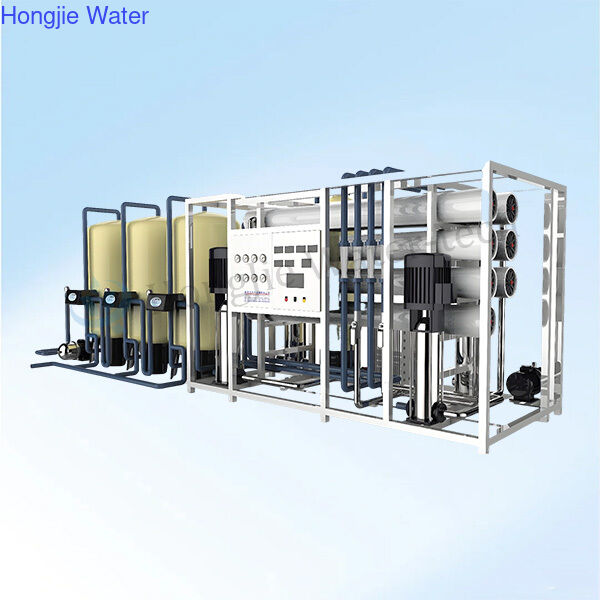

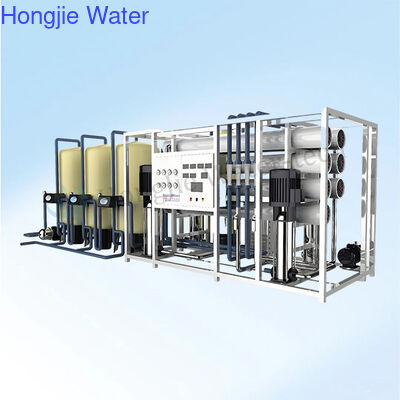

FRP Industrial Comercial Reverse Osmosis Water Treatment Plant Customizable
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | HongJie |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Model Number | HJ-ROFrp150T |
| Minimum Order Quantity | >=1sets |
| Price | US$300000~US$310000 |
| Packaging Details | export standard wooden case |
| Delivery Time | 1-7working days(depand on raw materials stocking) |
| Payment Terms | T/T |
| Supply Ability | >300sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Flow Rate | 150m³/h (customizable ) | Product Features | Stable Water Quality,Low Operation Cost,Reliable Performance |
|---|---|---|---|
| After-Sales Service | 2-Year Warranty For Standard Equipment (excluding Consumables) | Pressure | 300-1200 Psi / ≥600 Psi |
| Temperature | -7°C - 49°C / 82°C (during Cleaning) | Chemical Resistance | 3-10 / 2-12 |
| Sealing System | NBR Rubber / 12 Months | Interface | 1/2"-3/4" / DN80 Or 1/4" NPT |
| Highlight | Reverse Osmosis Water Treatment Plant customizable,Comercial Reverse Osmosis Water Treatment Plant,customizable ro water treatment plant |
||
Product Description
I.Overview
Fiberglass Reinforced Plastics (FRP) has emerged as the standard and preferred material for reverse osmosis systems, particularly for reverse osmosis membrane pressure vessels, thanks to its unparalleled corrosion resistance, high strength-to-weight ratio, design flexibility, and excellent long-term economic efficiency. It plays an irreplaceable role in ensuring the long-term, reliable, and efficient operation of RO systems, especially when dealing with corrosive water sources such as seawater, brackish water, and wastewater. Choosing high-quality FRP membrane housings is one of the key investments to ensure the successful operation of RO systems.
II.Parameters of FRP
| Category | Key Parameters | Typical Value/Range |
| Pressure | Design Pressure/Burst Pressure | 300-1200 psi / ≥600 psi |
| Temperature | Operating Range/Short-Term Withstand | -7°C - 49°C / 82°C (during cleaning) |
| Chemical Resistance | pH Range (Continuous/Short-Term) | 3-10 / 2-12 |
| Sealing System | O-Ring Material/Replacement Cycle | NBR Rubber / 12 months |
| Interface | Product Water Inlet/Inlet Pipe Diameter | 1/2"-3/4" / DN80 or 1/4" NPT |
III.Process
1.Standard Path:
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → Pure Water Tank → UV Sterilizer → Water Point
2.Enhanced Path:
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Tank → Secondary RO → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter → Water Point
IV.Features
Our HJ-ROFrp series features reverse osmosis (RO) membrane pressure vessels (e.g., RO membrane housings), as well as pre-treatment and post-treatment storage tanks (such as raw water tanks, product water tanks, and chemical dosing tanks). Key components including parts of the piping system are constructed using FRP (Fiberglass Reinforced Plastic), a high-performance material offering numerous advantages:
·Outstanding corrosion resistance, ideal for harsh water treatment environments
·High strength and rigidity, ensuring structural integrity under pressure
·Lightweight design, reducing installation and transportation costs
·Flexible design and seamless molding, enabling custom solutions and complex geometries
·Excellent dimensional stability and low thermal expansion, maintaining performance across temperature variations
·Smooth internal surface, improving flow efficiency and reducing fouling
·Electrical insulation properties, enhancing operational safety
·Long service life with minimal maintenance, reducing total cost of ownership
·Exceptional cost-effectiveness, delivering premium performance at competitive value
V.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
