Large Industrial Heavy Duty Boiler Automatic Water Softeners With 20T Capacity

Brand Name:	Hongjie
MOQ:	1set
Price:	negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	>300sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

ISO 14001,ISO 9001,CE,EPA

Flow Rate:

20T/Hour

Produced Water Quality:

Soft Water

Core Technology:

Ion Exchange

Core Component:

Water Softener

Operation Mode:

Fully Automatic (PLC Control)

Product Features:

Stable Water Quality, Low Operation Cost

After-Sales Service:

24/7 Support，2-Year Warranty And Maintenance

Processing Type:

Water Filter

Packaging Details:

export standard wooden case

Highlight:

Heavy Duty Boiler Water Softeners

Customizable industrial water softener

Boiler Water Softeners Customizable

Product Description

I.Introduction to Automatic Water Softening System

Water softening, as the name suggests, refers to reducing the hardness of water. The automatic water softening system consists of three key components: the ion exchange unit, salt regeneration unit, and control unit. At the core of this system lies ion exchange technology, with ion exchange resin serving as the main body. Since water hardness is primarily formed and represented by calcium and magnesium ions, cation exchange resins are generally used to replace Ca²⁺ and Mg²⁺ (the main components forming scale) in water. As the content of Ca²⁺ and Mg²⁺ in the resin increases, its efficiency in removing these ions gradually decreases.

II.Automatic Water Softening Equipment

Our water softening equipment offers multiple series tailored to different needs, including time-controlled, flow-controlled, and continuous soft water supply systems. Available in various configurations such as single-valve single-tank, single-valve dual-tank, dual-valve dual-tank parallel, and large-scale multi-valve multi-tank series systems, it meets diverse water usage requirements for users.

Flow-controlled type: Initiates automatic regeneration based on preset flow volume, which can be customized according to resin filling quantity and water quality conditions.
Time-controlled type: Calculates regeneration time based on resin filling quantity, water quality, and hourly demand. It allows setting regeneration cycles within 7 to 12 days and selecting regeneration time freely within 24 hours.

III:Specification

Product name	Softening equipment
Flow rate	20T/H
Inlet Water Hardness	≤8 mmol/L
Outlet Water Hardness	≤0.03 mmol/L
Working Pressure	0.2-0.6 MPa
Working Temperature	10-45℃
Device function	Reduce hardness,remoce scale and alkali,run 24hours a day
Power	100W

Featuring mature control system technology, our automatic water softening equipment ensures simple operation, reliable performance, and microcomputer control—making management effortless and user experience seamless.

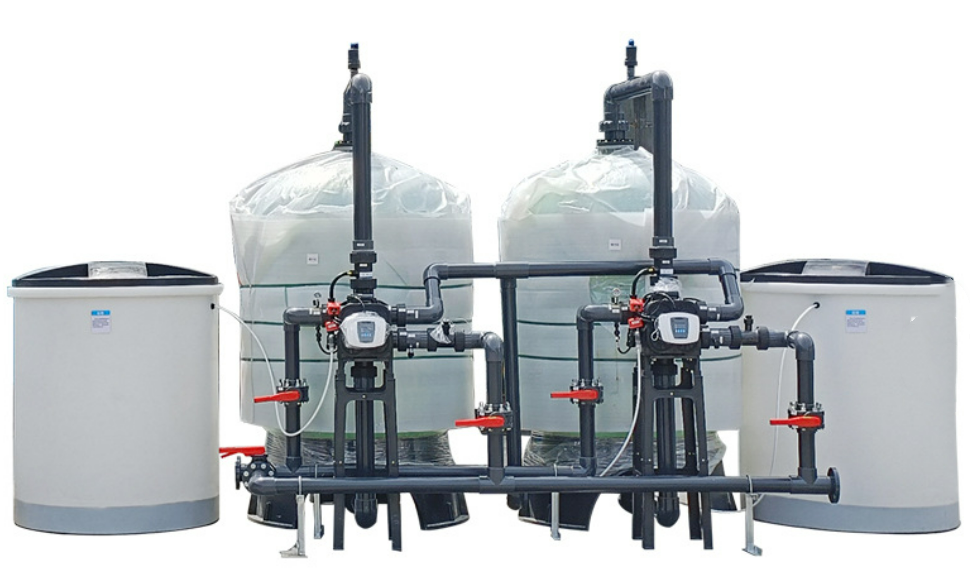

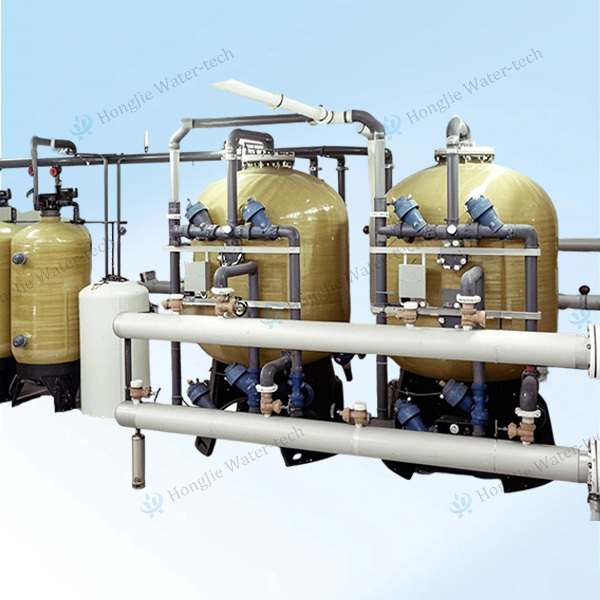

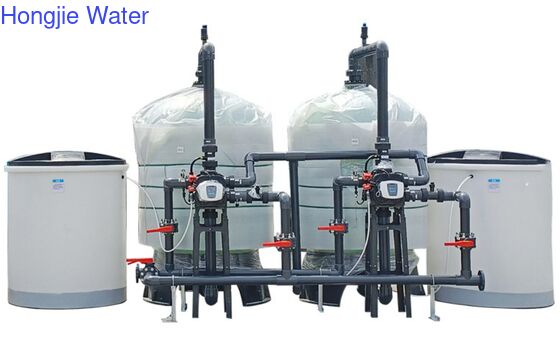

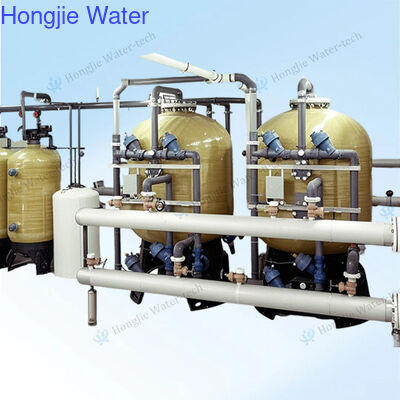

IV: Photo

Transform your water quality with our advanced automatic softening solutions—engineered for efficiency, precision, and hassle-free maintenance.
