Automatic PLC Control Water Softener System With FRP Resin Tank Ion Exchange Resin

Brand Name:	Hongjie
MOQ:	1set
Price:	negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	>300sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO 14001,ISO 9001,CE,EPA

Product Name:

Water Softener

Flow Rate:

0.5m³/h – 200m³/h (Customizable )

Core Technology:

Ion Exchange

Core Component:

Pressure Vessel, Valve

Operation Mode:

Fully Automatic (PLC Control)

Product Features:

Stable Water Quality, Low Operation Cost

Packaging Details:

export standard wooden case

Highlight:

Customizable Well Water Softening Systems

Customizable water softening equipment

PLC Control Well Water Softening Systems

Product Description

I.Water Softening Equipment: Enhance Efficiency, Extend Equipment Life

Water softening equipment is designed to reduce water hardness by removing calcium and magnesium ions from deep well water or sources with high hardness. This process minimizes scale formation in hot water equipment and pipelines, significantly improving thermal efficiency and extending the service life of your equipment.

II:Working principle

Since the hardness of water is mainly formed and expressed by calcium and magnesium, cation exchange resin (water softener) is generally used to replace Ca2+ and Mg2+ (the main components of scale formation) in the water. As the Ca2+ and Mg2+ in the resin increase, the efficiency of the resin in removing Ca2+ and Mg2+ gradually decreases.

When the resin absorbs a certain amount of calcium and magnesium ions, it must be regenerated. The regeneration process is to flush the resin layer with brine in the salt box, replace the hardness ions on the resin, and discharge them out of the tank with the regeneration waste liquid. The resin then resumes its softening and exchange function.

Since the hardness of water is mainly formed by calcium and magnesium, the principle of sodium ion exchange softening treatment is to pass the raw water through sodium type cation exchange resin to exchange the hardness components Ca2+ and Mg2+ in the water with Na+ in the resin, thereby adsorbing Ca2+ and Mg2+ in the water to soften the water.

III:Parameter

Specification	Description
Inlet Water Hardness	≤8 mmol/L
Outlet Water Hardness	≤0.03 mmol/L
Working Pressure	0.2-0.6 MPa
Working Temperature	2-50℃
Free Chlorine in Inlet Water	≤0.3 mg/L
Suspended Solids in Inlet Water	<5 mg/L
Iron Content in Inlet Water	0.3 mg/L
Flow Range	1-100 t/h (customizable)
Tank Materials	FRP / Carbon Steel with Rubber Lining / Stainless Steel
Valve Materials	High-strength Plastic / Copper / Ceramic
Power Supply	220V/380V, 50/60HZ
Control Modes	Time-based / Flow-based
Regeneration Methods	Downflow Regeneration / Upflow Regeneration

IV:Photo

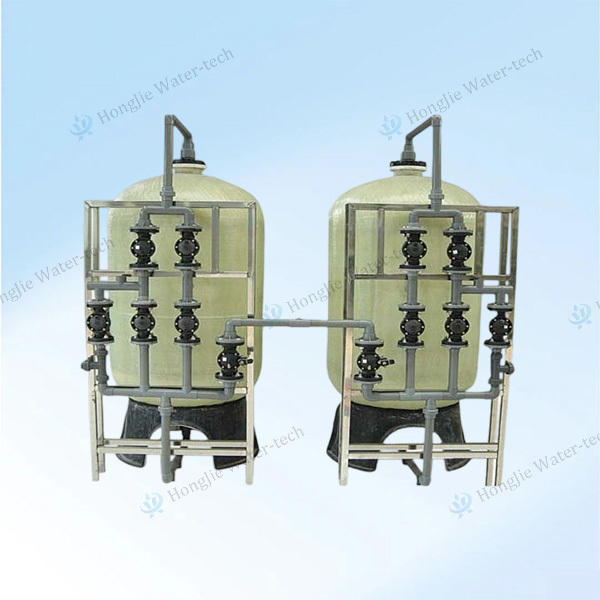

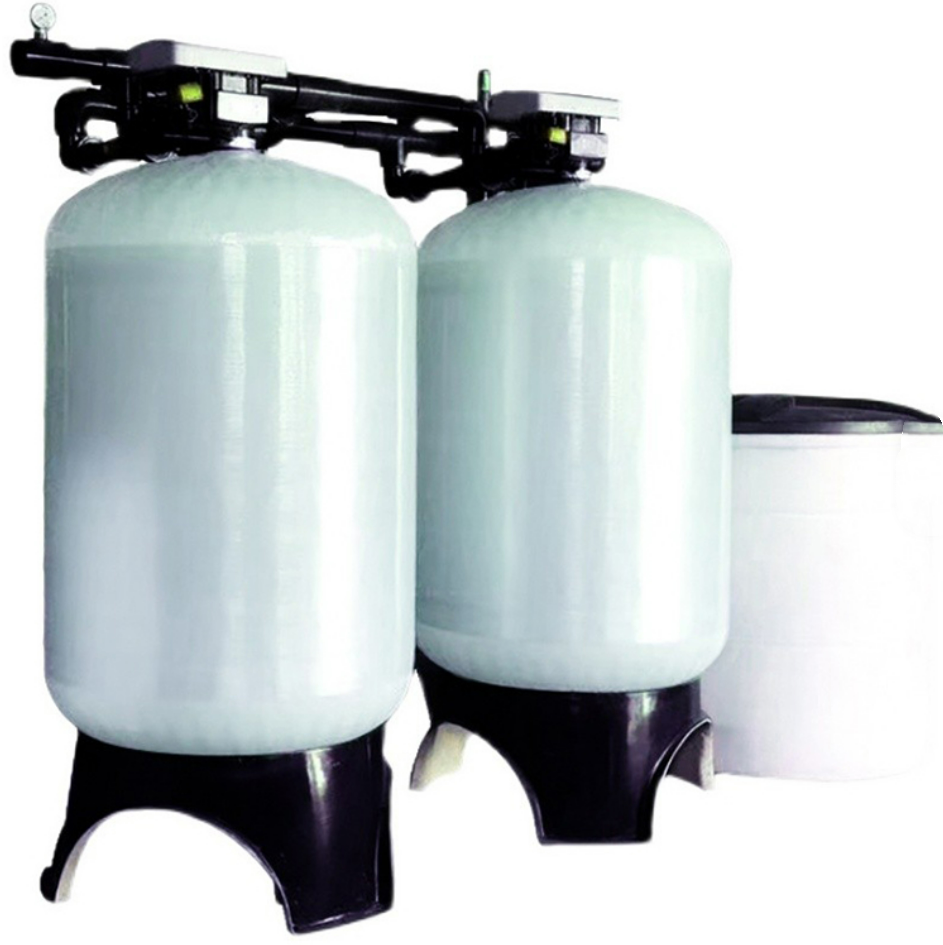

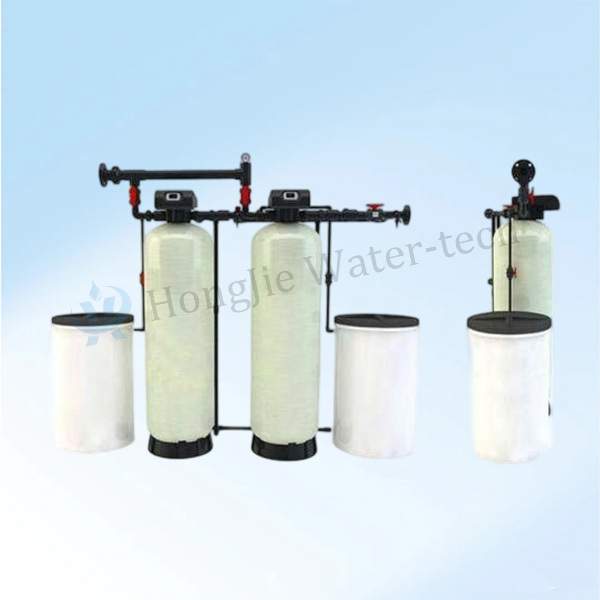

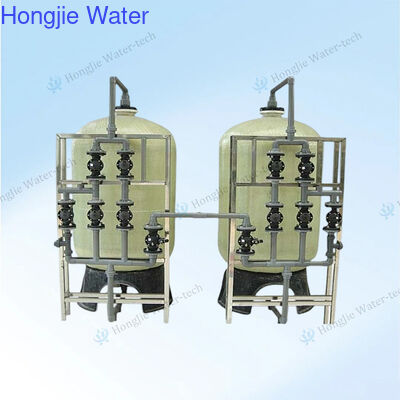

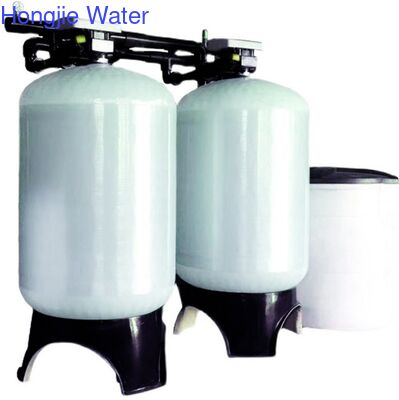

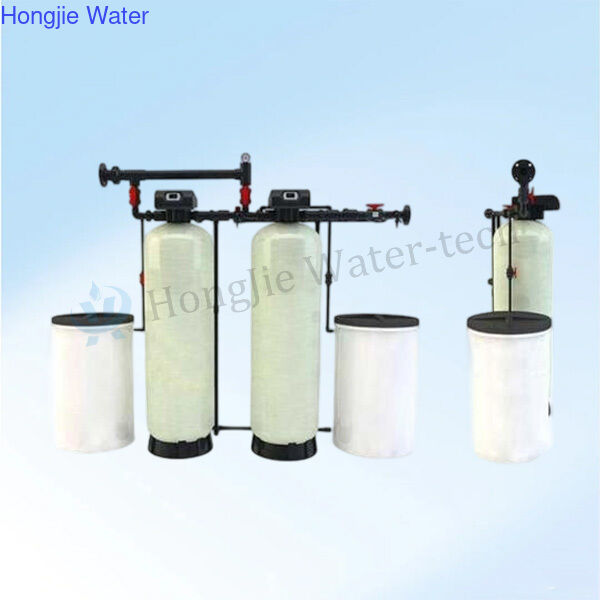

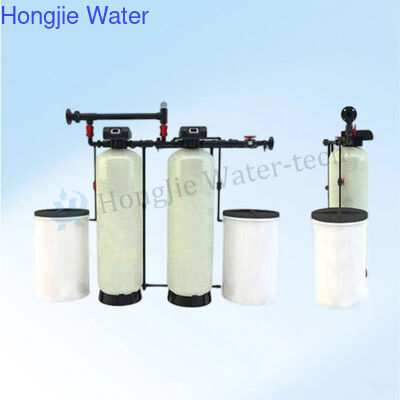

Automatic PLC Control Water Softener System With FRP Resin Tank Ion Exchange Resin 0

V:FAQ

Q1: Why did I choose your product?

We have advanced technology, can provide cheaper prices, better product quality, higher performance, lower maintenance costs and perfect after-sales service.

Q2: What materials are needed if you want to customise large-scale water treatment machinery?

Water circuit: raw water quality, required water quality, water quantity; Circuit: voltage,frequency, rated power, installed power, adapted plug; industry and use; equipment placement: outdoor or indoor; budget: accordingto the budget of the exclusive customised program.

Q3: How long does it usually take for your products to ship?

Generally, the delivery time is two to three weeks.

Q4: Do you support OEM service?

Yes, we fully support OEM services and welcome you to customize our products.

Q5: Can I get a cheaper price?

Of course, please contact us, we can give you a cheaper price.

Q6:What if the product breaks down in the future?

Don't worry, we offer a very long warranty,.
