5T/H Remove Hard Water Softener Filter SystemFor Direct Fired Engines High Efficiency

I. Introduction to Automatic Water Softening System
The softening water treatment system is a water treatment equipment that uses the ion exchange principle to remove calcium and magnesium ions from water. It is mainly used in industrial boilers, cooling systems, chemical production and domestic water. Its core component is the sodium ion exchanger, which is filled with strong acid ion exchange resin. The sodium ions replace the calcium and magnesium ions to achieve water softening.

II. Details of  Product Description

III. Softening System For Direct-fired Engine

Softening water equipment workflow diagram Backwash: After working for a period of time, the equipment will intercept a lot of dirt brought by the raw water on the upper part of the resin. After removing these dirt, the ion exchange resin can be fully exposed and the regeneration effect can be guaranteed. The backwash process is that water washes in from the bottom of the resin and flows out from the top, so that the dirt intercepted from the top can be washed away. This process generally takes about 5-15 minute

There are five processes: working (sometimes called water production, the same below), backwashing, salt absorption (regeneration), slow flushing (displacement), and fast flushing. All the processes of different water softening equipment are very similar, but there may be some additional processes due to different actual processes or control needs. Any water softening equipment based on sodium ion exchange is developed on the basis of these five processes (among which, the fully automatic water softening equipment will add the brine re-injection process).

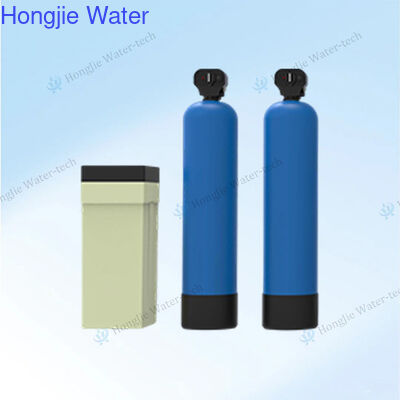

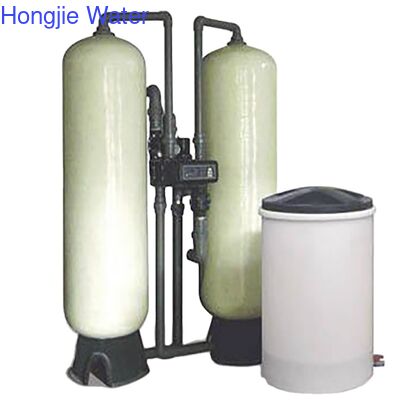

IV:Photo

V:How to choose the model

First, you need to provide the type of system that needs to use softened water:

(1) Heating (2) Cooling water supply (3) Process water (4) Steam boiler (5) Iron and steel smelting industry (6) Chemical and pharmaceutical industry

2. System water use time: That is, operating time/hourly water consumption/average value/peak value/ Does the equipment need continuous water supply? If necessary, select the double-bed centralized control or double-control double-bed series, otherwise the single-valve single-tank series can be selected.

3. Total hardness of source water The water source is municipal tap watergroundwatersurface water source, and the total hardness of raw water in the use area. For a certain type of water softener, the raw water hardness is high, and its cycle water production must be relatively reduced, which leads to frequent regeneration of the soft water equipment. Relatively reduce the service life of the resin. To avoid such a situation, the resin volume should be increased, which means using a larger model of water softener.

4. Required soft water unit flow rate (tons/hour). This depends on the nature and requirements of the user's equipment; 5. Setting of cycle water production After the water softener model is set, according to the raw water hardness, the exchange working capacity of the resin used can determine the theoretical cycle water production (tons).
