1000L/Hour Stainless Steel Double Stage Reverse Osmosis System for Drinking Water Treatment
Product Details
| Flow Rate | 1000L/Hour | Core Technolog | Double-stage Reverse Osmosis (RO) |
|---|---|---|---|
| Pretreatment | Sand Filter, Activated Carbon Filter | RO Membrane | DOW Membrane USA Original Or Dupont |
| Frame Material | Stainless Steel SS304 | TDS | ≤ 10–20 Mg/L |
| Desalination Rate | ≥ 99% | Turbidity | ≤ 0.1 NTU |
| Highlight | 1000L/Hour Reverse Osmosis Water Treatment Machine,Double Stage RO Water Treatment Machine,Stainless Steel Water Treatment Machine |
||
Product Description
1000L/Hour Double Stage Reverse Osmosis System With Stainless Steel For Drinking Water
Equipment Overview
The 1000 L/H Stainless Steel Double-Pass Reverse Osmosis (RO) System is engineered for high-quality drinking water production. Constructed with 304 or 316 stainless steel structure and hygienic UPVC piping meeting SCH80 standards, this system provides exceptional corrosion resistance, durability, and compliance with drinking water industry sanitary requirements.
Utilizing an advanced double-pass reverse osmosis process, the system significantly enhances water purification efficiency while ensuring stable, safe drinking water quality. For drinking water applications, pre-treated purified water with TDS typically below 15mg/L is required.
Process Flow
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Tank → Secondary RO → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter → Water Point
Technical Specifications
| Item | Specification |
|---|---|
| Electricity Supply | 380V or 220V |
| Produced Water Quality | Conductivity < 10μs/cm |
| Pump Brand | CNP or Grundfos |
| Operation Mode | Full Automatic (PLC-controlled) |
| Product Features | Stable Water Quality, Low Operation Cost, Reliable Performance |
| After-Sales Service | 2-Year Warranty For Standard Equipment |
| Compliance Standards | GB17324-2003, GB5749-2006, CJ94-1999 |
Design Advantages
- Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for operational flexibility
- Factory-Integrated Wiring: Reduces on-site installation and debugging time with pre-completed unit connections
- RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency
- Sanitary Materials: 304/316L stainless steel piping with automatic welding and endoscopic inspection for flawless hygiene
- Dual Sterilization Options: Choice between ambient temperature or hot water disinfection systems to meet hygiene standards
- Hygiene Guaranteed: Purified water storage tanks with breathing filters, UV sterilizers, and microporous filters ensure pristine water quality
- User-Friendly Operation: Integrated control and instrumentation systems for intuitive operation and management
Applications
Drinking water purification plants
Bottled water and barreled water production
Schools, hospitals, and office buildings
Hotels and commercial drinking water systems
Community direct drinking water projects
With advanced membrane technology, stainless steel construction, and stable water quality output, this system provides a safe, efficient, and sustainable solution for modern drinking water treatment requirements.
Design Standards and Compliance
- Tailored Solutions: Customized designs based on detailed water quality reports for perfect process integration
- National Food Safety Standards: Packaged Drinking Water (GB 19298-2014) and GB 14881-2013 (General Hygienic Practices for Food Production)
- Industry Specifications: JB/T 2932-1999 (Water Treatment Equipment), CJ/T119-2000 (RO Systems), and GB/T 12771-2008 (Stainless Steel Piping)

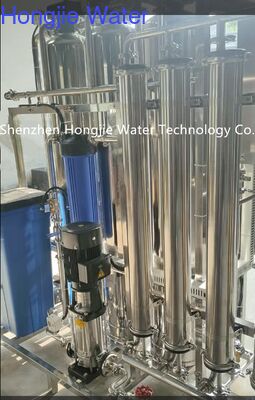

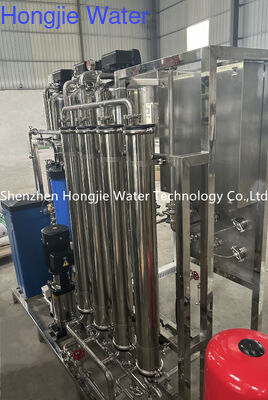

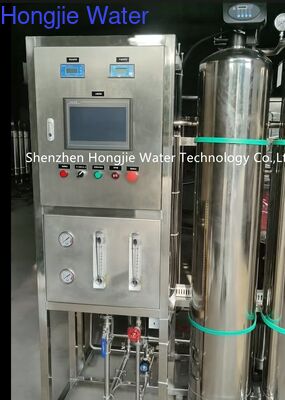

Production Images
