Ro Water Treatment Systems 15m3/H PLC Controlled Ro Water Filter System
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | HongJie |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Model Number | HJ-RO15T |
| Minimum Order Quantity | >=1sets |
| Price | US$43900~US$44500 |
| Packaging Details | export standard wooden case |
| Delivery Time | 1-7working days(depand on raw materials stocking) |
| Payment Terms | T/T |
| Supply Ability | >300sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Flow Rate | 15m³/h (customizable ) | Produced Water Quality | Conductivity < 10μs/cm |
|---|---|---|---|
| Core Technology | Double-stage Reverse Osmosis (RO) | Key Components | RO Membrane Modules |
| Operation Mode | Full Automatic (PLC-controlled) | After-Sales Service | 2-Year Warranty For Standard Equipment (excluding Consumables) |
| Voltage | 220V | Video Outgoing-inspection | Provided |
| Highlight | Ro Water Treatment Systems 15m3/H,PLC Controlled Ro Water Filter System,15m3/H Ro Water Filter System |
||
Product Description
water treatment solution of 15m³/h ro(reverse osmosis) systems
I. RO System Description
Our reverse osmosis water treatment solutions focus on “water source adaptability” and “total life cycle cost.” Through modular design (pre-treatment-RO-post-treatment), we can meet the needs of different scenarios. In the industrial field, RO has upgraded from a simple desalination device to a key node for resource recovery and zero emissions. In the future, it will evolve further toward intelligence and low carbon..
II.Specifications
| Item | Specification | ||||||
| Electricity Supply | 380V | ||||||
| Produced Water Quality | Conductivity < 10μs/cm | ||||||
| Core Technology | Reverse Osmosis (RO) | ||||||
| Key Components | RO Membrane Modules | ||||||
| Operation Mode | Full Automatic (PLC-controlled) | ||||||
| Product Features | Stable Water Quality,Low Operation Cost,Reliable Performance | ||||||
| After-Sales Service | 2-Year Warranty For Standard Equipment | ||||||
| Compliance Standards | GB17324-2003 Hygienic Standard For Bottled (Barreled) Drinking Purified Water,GB5749-2006 Sanitary Standard For Drinking Water,CJ94-1999 Drinking Water Standard | ||||||
III. Process and Specifications of HJ-ROFB15T
Raw Water→Raw water tank→Booster Pump→Quartz sand filter→Active Carbon filter→Softener→Precision filter-Pressure pump→Reverse Osmosis membrane→Pure water tank-Pure water output
IV. Design Advantages
Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.
Factory-Integrated Wiring: Reduces on-site installation and debugging time by completing all unit connections at our facility.
RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
Sanitary Materials: 304/316L stainless steel piping in both sanitary and non-sanitary designs, with automatic welding and endoscopic inspection for flawless hygiene.
Dual Sterilization Options: Choose between ambient temperature or hot water disinfection systems to meet hygiene standards.
Stainless Steel Pipe Automatic Welding & Endoscopic Inspection - Elevate Your Production with Precision and Efficiency.
Hygiene Guaranteed: Purified water storage tanks with breathing filters, along with UV sterilizers and microporous filters in the pipelines, ensure water quality remains pristine.
User - Friendly Operation: Integrated control and instrumentation systems make operation and management intuitive and straightforward.
V. Design Standards and Compliance
Tailored Solutions: Customized designs based on your detailed water quality report, ensuring a perfect fit for your process.
National Food Safety Standards: Compliant with GB 19298-2014 (Packaged Drinking Water) and GB 14881-2013 (General Hygienic Practices for Food Production).
Industry Specifications: Aligned with JB/T 2932-1999 (Water Treatment Equipment), CJ/T119-2000 (RO Systems), and GB/T 12771-2019 (Stainless Steel Piping).

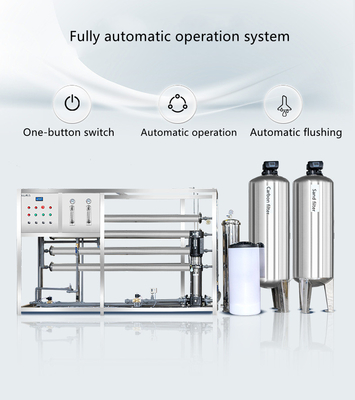

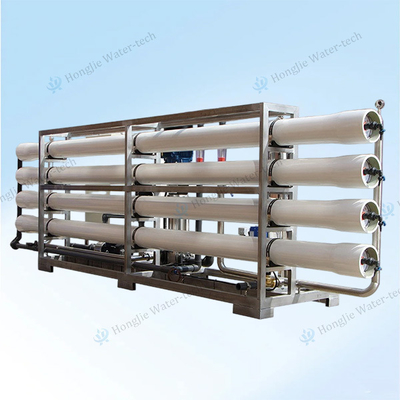

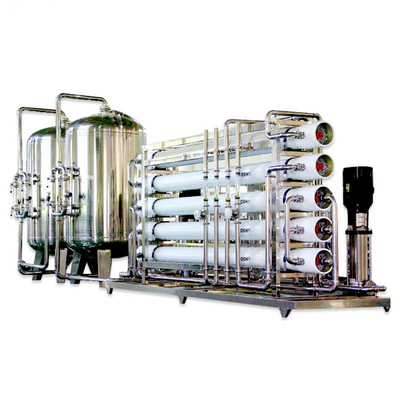

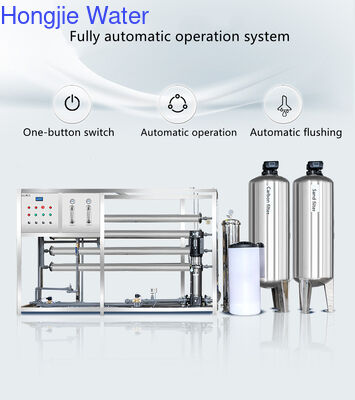

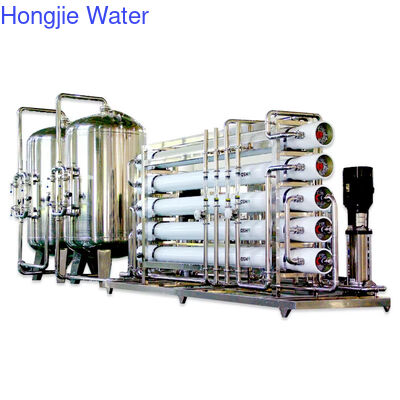

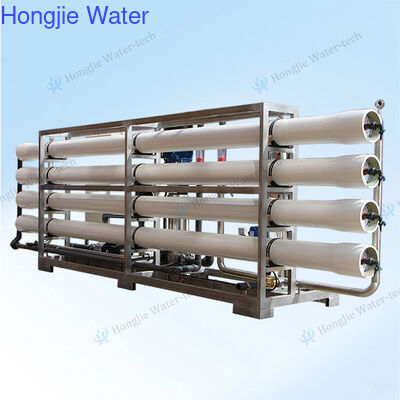

VI.Product display
VII. Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
