90T/H One Stage Reverse Osmosis Water Machine Purified Water System
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Flow Rate | 90T/H | Processing Type | Reverse Osmosis, Softening, Desalination, Filtration |
|---|---|---|---|
| Core Technology | Double-stage Reverse Osmosis (RO) | Key Components | RO Membrane Modules |
| Operation Mode | Full Automatic (PLC-controlled) | Processing | Pre-treatment+One Stage RO |
| Filter Media | Sand+carbon+resin(all Included) | Application | Printing Industry, Electronics Factory, Electroplating Factory |
| Highlight | One Stage Reverse Osmosis Water Machine,90T/H Reverse Osmosis Water Machine,90T/H purified water system |
||
Product Description
90T/H One Stage Reverse Osmosis Systems Purified Water System
I. Introduction:
Shenzhen Hongjie Water Technology Co.,Ltd. is a company that focuses on water treatment plant and is committed to the research and development, production, sales and after-sales service of environmentally friendly water purification industrial products. The main production and operation of water treatment plant: reverse osmosis system, ultrafiltration system, EDI desalination system, sea water desalination plant, brackish water desalination plant. Products are widely used in electronics, electroplating, power plants, petroleum, chemical, food and beverage, printing and dyeing industries. Hongjie strives to be the forefront explorer of water treatment equipment at home and abroad!
II. Process and Specifications
1.Standard Path:
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → Pure Water Tank → UV Sterilizer → Water Point
2.Enhanced Path:
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Tank → Secondary RO → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter → Water Point
III. Specifications
| Item | Specification | ||||||
| Electricity Supply | 380V | ||||||
| Produced Water Quality | Conductivity < 10μs/cm | ||||||
| Core Technology | Double-stage Reverse Osmosis (RO) | ||||||
| Key Components | RO Membrane Modules | ||||||
| Operation Mode | Full Automatic (PLC-controlled) | ||||||
| Product Features | Stable Water Quality,Low Operation Cost,Reliable Performance | ||||||
| After-Sales Service | 2-Year Warranty For Standard Equipment | ||||||
| Compliance Standards | GB17324-2003 Hygienic Standard For Bottled (Barreled) Drinking Purified Water,GB5749-2006 Sanitary Standard For Drinking Water,CJ94-1999 Drinking Water Standard | ||||||
IV. Design Advantages
Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.
Factory-Integrated Wiring: Reduces on-site installation and debugging time by completing all unit connections at our facility.
RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
Sanitary Materials: 304/316L stainless steel piping in both sanitary and non-sanitary designs, with automatic welding and endoscopic inspection for flawless hygiene.
Dual Sterilization Options: Choose between ambient temperature or hot water disinfection systems to meet hygiene standards.
Stainless Steel Pipe Automatic Welding & Endoscopic Inspection - Elevate Your Production with Precision and Efficiency.
Hygiene Guaranteed: Purified water storage tanks with breathing filters, along with UV sterilizers and microporous filters in the pipelines, ensure water quality remains pristine.
User - Friendly Operation: Integrated control and instrumentation systems make operation and management intuitive and straightforward.
V. Application field.
(1) Power industry: boiler feed water, cooling dam; (2) Electronics industry: ultra-pure water for semiconductor industry, cleaning water for integrated circuits, and formula water; (3) Food industry: formula water, production water; (4) process water, preparation water, washing water, water for injection, and sterile water; (5) Beverage industry: formula water, production water, washing water; (6) Chemical industry: production water, wastewater treatment; (7) Drinking water project: preparation of ultrapure water and purification of drinking water; (8) Petrochemical industry: advanced treatment of oilfield injection water and petrochemical wastewater; (9) Seawater desalination: production and domestic water in island areas, coastal water-deficient areas, ships, seawater oil fields, etc.; (10) Environmental protection field: recovery of precious metals and water in electroplating rinse water to achieve zero or micro emissions.

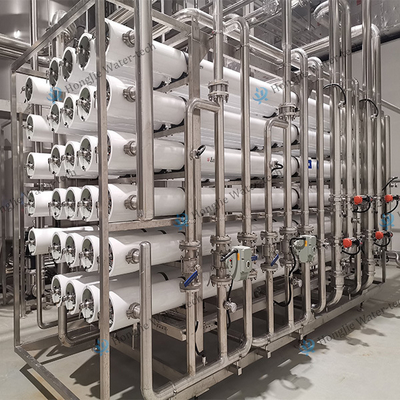

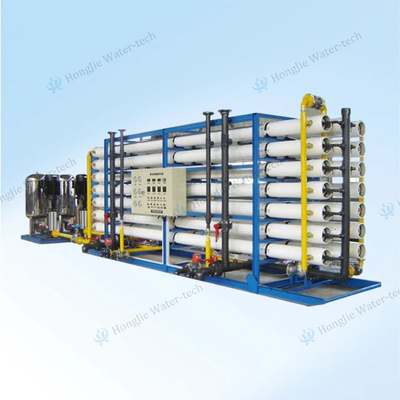

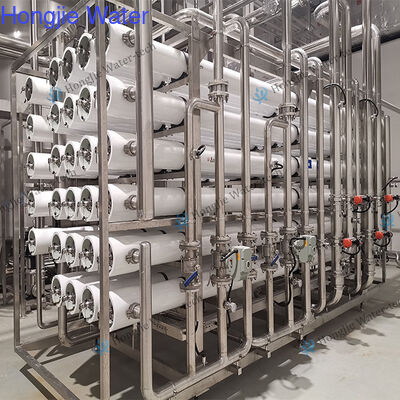

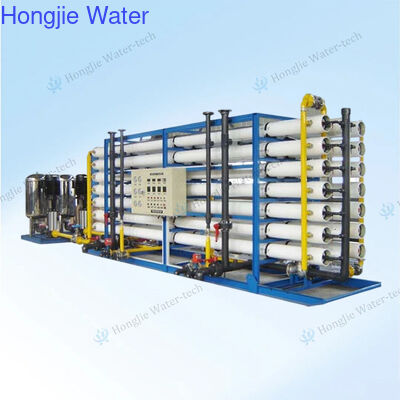

VI.Product display
