JB/T 6855-93 Online Conductivity Meter For RO Water Plant System

  • JB/T 6855-93 Online Conductivity Meter For RO Water Plant System
  • JB/T 6855-93 Online Conductivity Meter For RO Water Plant System
Place of Origin Shenzhen,China
Brand Name Hongjie
Certification ISO 14001,ISO 9001,CE,EPA
Minimum Order Quantity 1set
Price negotiation
Packaging Details export standard wooden case
Delivery Time 1-7working days
Payment Terms T/T
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Online Conductivity Meter Alarm Output Low Limit Alarm Lamp Lighting
Application Measure Pure Water Conductivity Resistivity Installation Method Instrument Panel Installation
Mounting Hole Dimensions 138×138 Mm Weight 0.8kg
Highlight

JB/T 6855-93 Online Conductivity Meter

,

RO System Online Conductivity Meter
Leave a Message
Product Description

I.Production  Overview

The online conductivity meter features full Chinese display, Chinese menu operation, full intelligence, multi-function, high measurement performance, and strong environmental adaptability. When paired with an electrode with a constant of 1.0 or 10, the secondary meter can measure the conductivity of general liquids; when matched with an electrode with a constant of 0.1 or 0.01, it can accurately measure the conductivity of pure water or ultrapure water. It is particularly suitable for the online continuous monitoring of high-purity water conductivity such as power plant boiler feed water and steam condensate.



II.Technical Parameters

Standard JB/T 6855-93 Industrial Conductivity Meter
Measurement Range 0.01～20μS/cm (with 0.01 electrode), up to 100.0μS/cm actually
0.1～200μS/cm (with 0.1 electrode), up to 1000.0μS/cm actually
1.0～2000μS/cm (with 1.0 electrode), up to 10.00mS/cm actually
10～20000μS/cm (with 10.0 electrode), up to 100.0mS/cm actually
Temperature Compensation 0～99.9℃, with 25℃ as reference temperature
Measured Water Sample 0～99.9℃, 0.6MPa
Basic Error Conductivity: ±1.0%FS; Temperature: ±0.5℃ (0～60℃)
Repeatability ±0.2%FS
Stability ±0.2%FS
Isolated Current Output 0～10mA (load <1.5kΩ), 4～20mA (load <750Ω)
Output Current Error ≤±1%FS
Relay AC220V, 3A
Communication Interface RS485 (optional)
Power Supply AC220V±22V, 50Hz±1Hz
Protection Grade IP65
Clock Accuracy ±1 minute/month
Data Storage 1 month (1 point/5 minutes)
Dimensions 146 (length) × 146 (width) × 108 (depth) mm



III.Application Fields
● Power plants - water treatment;
● Waterworks and sewage plants - wastewater treatment;
● Papermaking - production process / wastewater treatment;
● Chemical industry and oil refining - production process / wastewater treatment;
● Metallurgy and mining - production process / wastewater treatment;
● Food and beverage - production process / wastewater treatment;
● Pharmaceutical industry - biological reaction and fermentation / wastewater treatment;
● Semiconductor - production process / wastewater treatment / high-purity water production.



IV .Photo

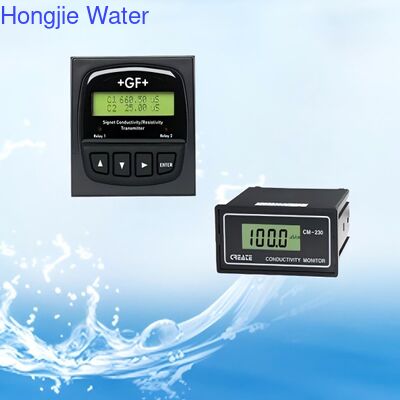

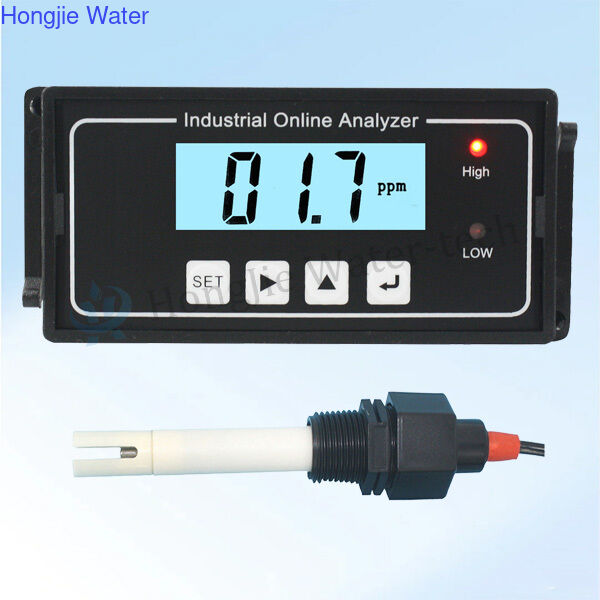

JB/T 6855-93 Online Conductivity Meter For RO Water Plant System 0

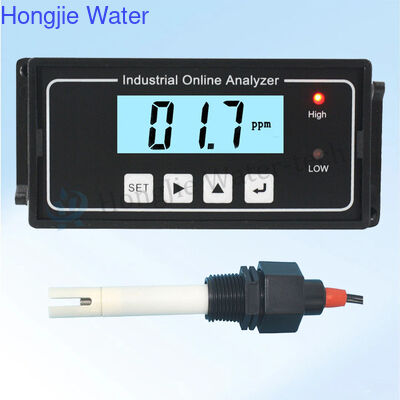

JB/T 6855-93 Online Conductivity Meter For RO Water Plant System 1
