100m3/H Ultra Purified Water System Industrial Water Purifier With UF+RO+EDI Units
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hongjie |
| Certification | CE, ISO |
| Minimum Order Quantity | 1set |
| Price | US$190000~US$195000 |
| Packaging Details | export standard wooden case |
| Delivery Time | 1-7working days(depand on raw materials stocking) |
| Payment Terms | D/P,T/T,Western Union,L/C |
| Supply Ability | >300sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Hongjie | Capacity | 100m³/h |
|---|---|---|---|
| Resistivity | ≥18.18 MΩ·cm (25°C) | Total Organic Carbon (TOC) | <1 Ppb (μg/L) |
| Dissolved Oxygen (DO) | <10 Ppb | Material | Stainless Steel 304，FRP，Carbon Steel |
| Core Process | UF+RO+EDI | Key Components | UF Components， RO Membrane Modules，EDI Units |
| Highlight | 100m3/H Ultra Purified Water System i,100m3/H industrial water purifier,UF RO EDI ultrapure water equipment |
||
Product Description

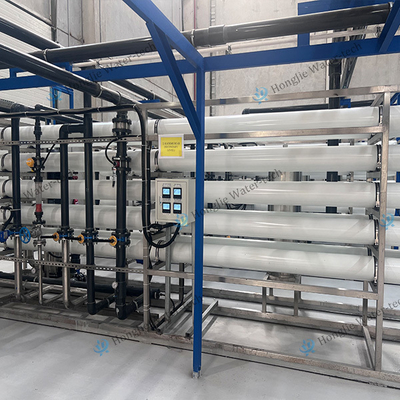

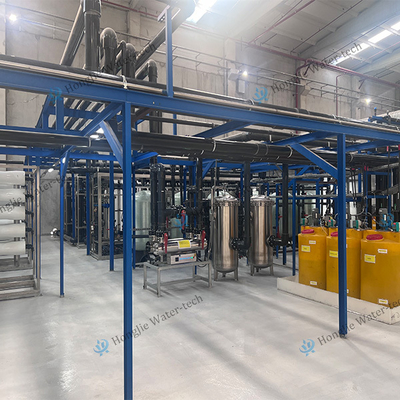

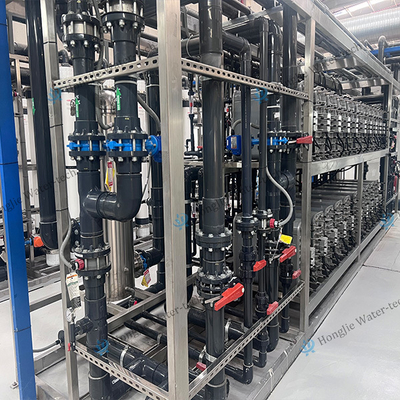

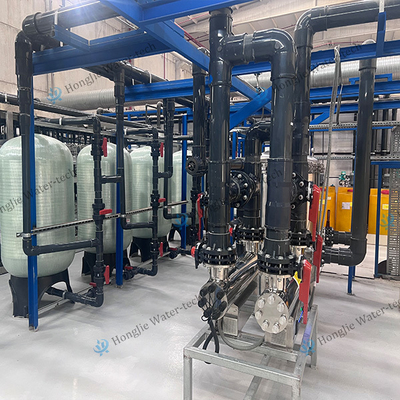

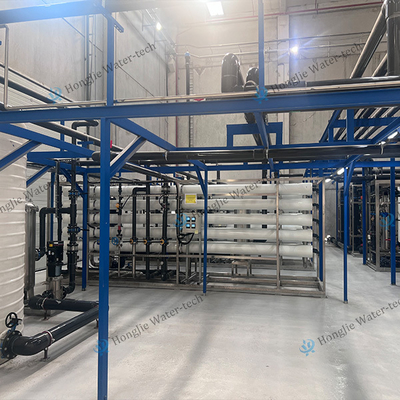

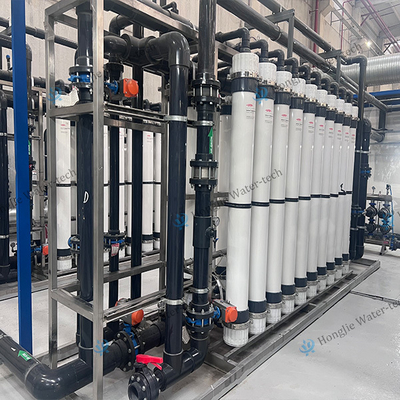

Successful case Turkey photovoltaic plant 100m³/h ultra pure water system with UF+RO+EDI units
I. Overview
Ultra-pure water is the “invisible lifeblood” of efficient photovoltaic cell production, with applications spanning the entire process from silicon wafer cleaning to module encapsulation. The ultra-pure water systems we provide to our Turkish photovoltaic plant customers are highly efficient and energy-saving, serving as a key technological foundation for enhancing cell efficiency (>22%) and reducing the cost per kilowatt-hour.
II. Process flow of Turkey project
Raw water – Raw water tank – Raw water booster pump – Flocculant – Ultrafiltration – Scale inhibitor – Security filter – First-stage high-pressure pump – First-stage reverse osmosis – pH adjustment – Intermediate water tank – Second-stage high-pressure pump – Second-stage reverse osmosis – Purified water tank – EDI booster pump – UV sterilizer – Precision filter – EDI system – Ultra-pure water tank – Terminal delivery pump – TOC remover – Polishing device – Terminal filter – Water usage point
III.Parameters
| Parameters | Standard Requirements | ||||
| Resistivity | ≥18.18 MΩ·cm (25°C) | ||||
| Total Organic Carbon (TOC) | <1 ppb (μg/L) | ||||
| Dissolved Oxygen (DO) | <10 ppb | ||||
| Particulates (≥0.1μm) | <1 particle/mL | ||||
| Boron (B) | ≤5 ppt | ||||
| Sodium (Na) | ≤10 ppt | ||||
| Iron (Fe) | ≤50 ppt | ||||
| Chloride (Cl) | ≤20 ppt | ||||
| Total Bacterial Count | <0.1 CFU/mL (Near Sterile) | ||||
| Endotoxin | <0.001 EU/mL |
IV. Application Advantages of Ultra-Pure Water Equipment
Economic Efficiency: EDI technology eliminates the need for acid-base regeneration, reducing operating costs by 30%. Concentrated water can be recycled to the front end of the RO system (recovery rate: 50–70%).
Stability: Fully automatic control ensures water quality fluctuations of ≤±0.1 MΩ·cm, avoiding production interruptions caused by mixed-bed regeneration
Environmental Friendliness: No waste acid or alkali emissions, compliant with EU environmental regulations (Turkey is currently aligning with EU standards)
Scalability: Modular design (e.g., 100 tons/hour system) flexibly adapts to production line expansion requirements
V. Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
