Tailor Made Stainless Steel Water Filter System 15m3/H Ultrapure Water Machine

  • Tailor Made Stainless Steel Water Filter System 15m3/H Ultrapure Water Machine
  • Tailor Made Stainless Steel Water Filter System 15m3/H Ultrapure Water Machine
  • Tailor Made Stainless Steel Water Filter System 15m3/H Ultrapure Water Machine
Place of Origin Shenzhen,China
Brand Name Hongjie
Certification ISO 14001,ISO 9001,CE,EPA
Minimum Order Quantity >=1sets
Price negotiation
Packaging Details export standard wooden case
Delivery Time 1-7working days(depand on raw materials stocking)
Payment Terms T/T
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flow Rate 15m³/h Produced Water Quality Conductivity < 10μs/cm
Core Technolog Double-stage Reverse Osmosis (RO) Key Components RO Membrane Modules
Operation Mode Full Automatic (PLC-controlled) Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service 24/7 Technical Support, 2-Year Warranty For Standard Equipment Power Supply 380V
Highlight

Stainless Steel Water Filter System 15m3/H

,

15m3/H ultrapure water machine

,

Tailor Made ultrapure water machine
Leave a Message
Product Description

Stainless Steel Tailor - made 15m³/h Ultra - pure water Systems for the chemical and cosmetics industry



I. Equipment Introduction

Ultra - pure water equipment in the electronic chemical industry is mainly applied in scenarios such as solvent water for the battery industry, chemical analysis, chemical materials, product cleaning, substance separation, concentration, purification, and waste recovery. The requirement for water quality is relatively not too high. A pure water conductivity ranging from 0.1uS/cm to 20uS/cm can basically meet the needs. On the basis of meeting users' water standards,



II. Design Standards and Basis

  1. “Tailor - made” according to the detailed water quality report provided by the user.
  2. Technical Conditions for Water Treatment Equipment
  3. Standards for Reverse Osmosis Water Treatment Equipment
  4. Low - voltage Switchgear and Controlgear Assemblies
  5. Welded Stainless Steel Pipes for Fluid Transport(SUS304/316L)



III. Process Flow

Raw water - Raw water booster pump - Multi - media filter - Activated carbon filter - Water softener - Precision filter - Primary reverse osmosis - PH adjustment - Intermediate water tank - Secondary reverse osmosis - Purified water tank - Pure water pump - EDI system - Ultra - pure water tank - Pure water pump - Water use point



Item Specification
Flow Rate 15m³/h
Electricity Supply 380V
Produced Water Quality Resistivity ≥15-18.25 MΩ·cm
Core Technology Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components RO Membrane Modules, EDI Units
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service  2-Year Warranty For Standard Equipment

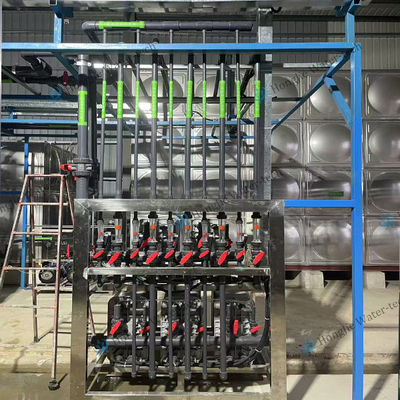

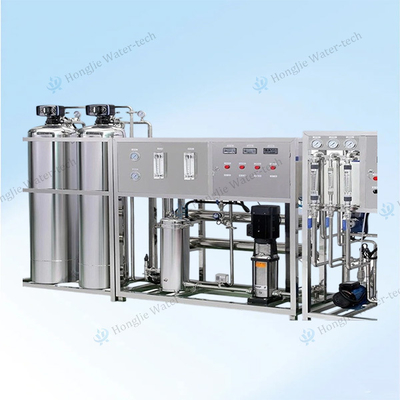

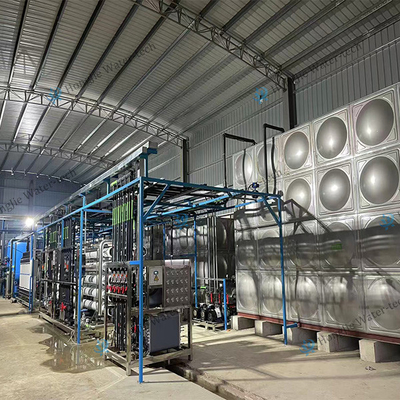

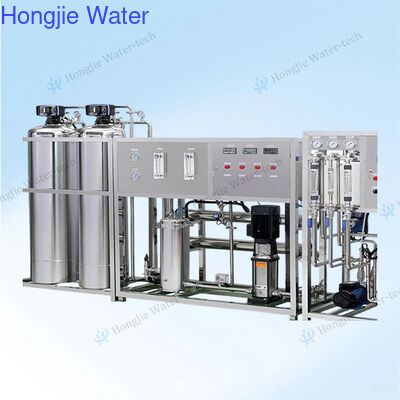

Photo:

Tailor Made Stainless Steel Water Filter System 15m3/H Ultrapure Water Machine 0



IV. Design Features

  1. Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.
  2. Factory-Integrated Wiring: Reduces on-site installation and debugging time by completing all unit connections at our facility.
  3. RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
  4. Pipeline System Configuration:Adopts UPVC pipes, combining durability and economy to build a reliable fluid transmission solution.
  5. Integrated Control System:Achieves intelligent operation and management through integrated control and instrumentation systems, optimizing workflow efficiency.
  6. RO Membrane Protection System:Equipped with startup cleaning and regular cleaning functions to extend membrane element service life and reduce replacement costs.
  7. Water Resource Recovery Rate:Innovative process design significantly improves equipment recovery rate, enabling up to 70% water recycling and practicing green energy conservation.
  8. Intelligent Consumable Management:Features automatic warning for consumable replacement, with cycles dynamically adjusted based on water quality and pressure to adapt to regional water quality differences—smart design at its best.
  9. Intelligent Protection System:Includes automatic shutdown protection for source water shortages, as well as intelligent functions for automatic water production when the tank is low and automatic shutdown when full, ensuring stable and worry-free operation.



VI.Here is a guideline for you to get a proper quotation

Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
