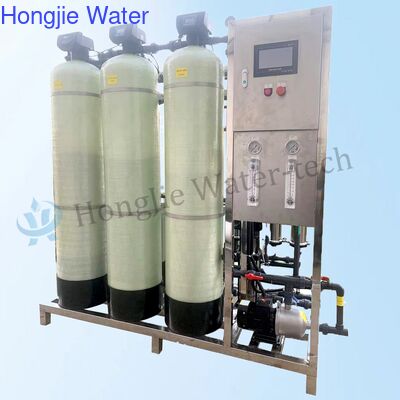

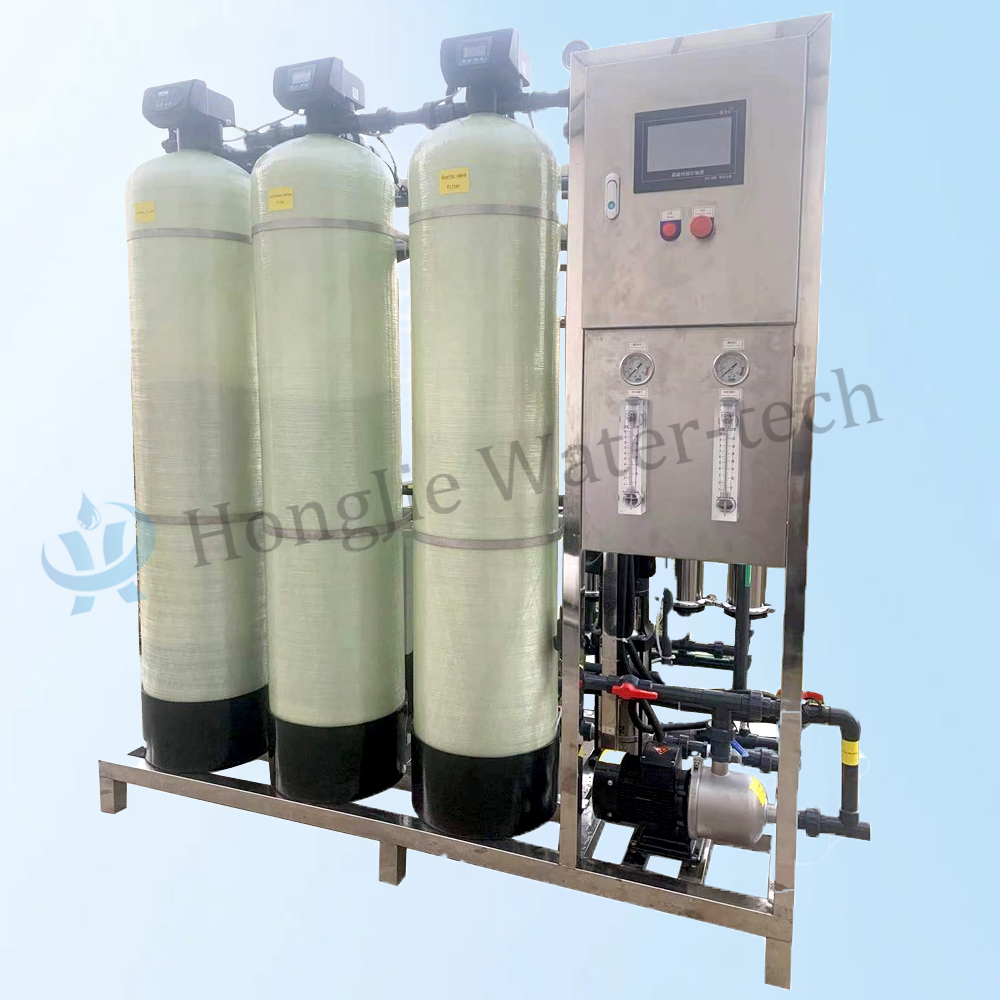

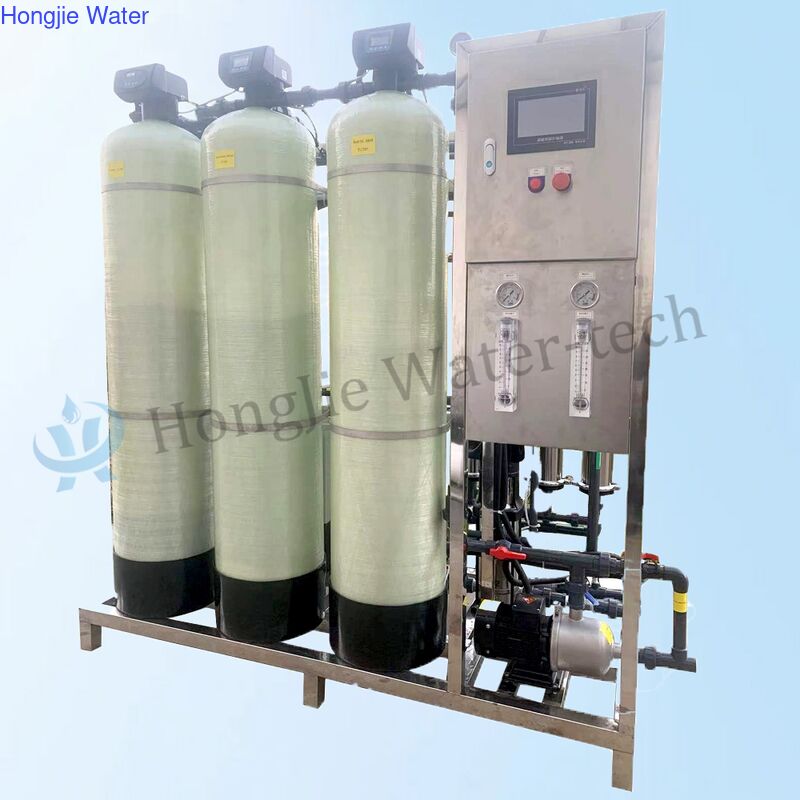

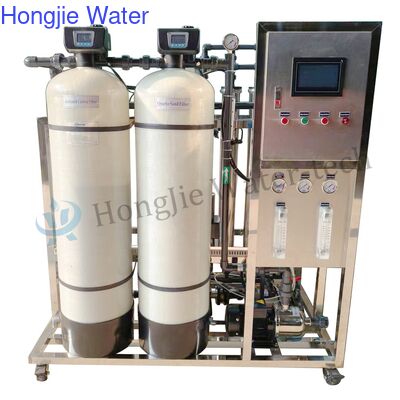

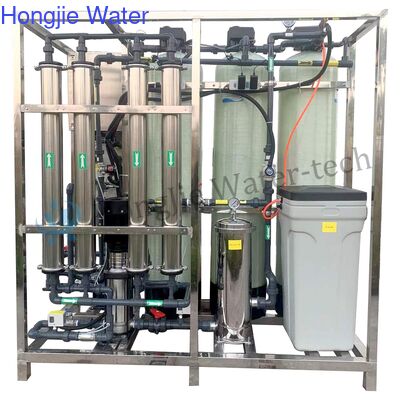

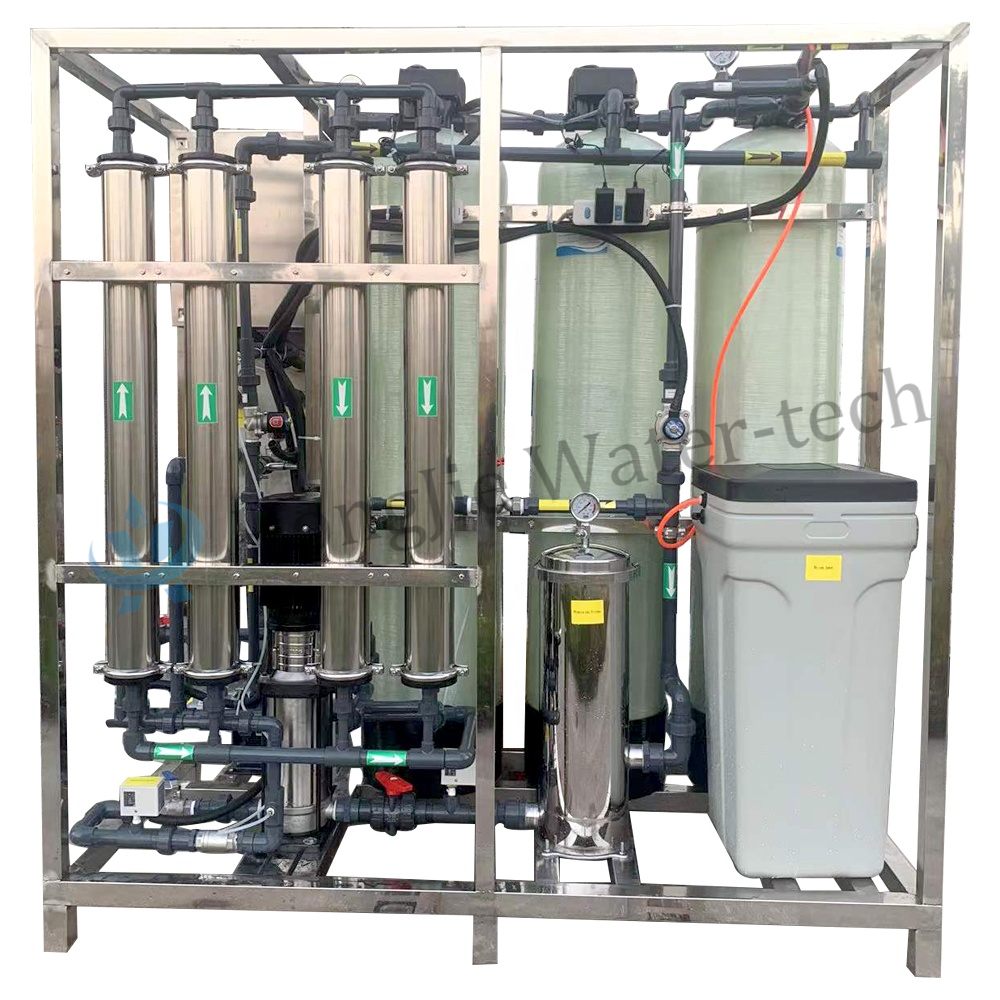

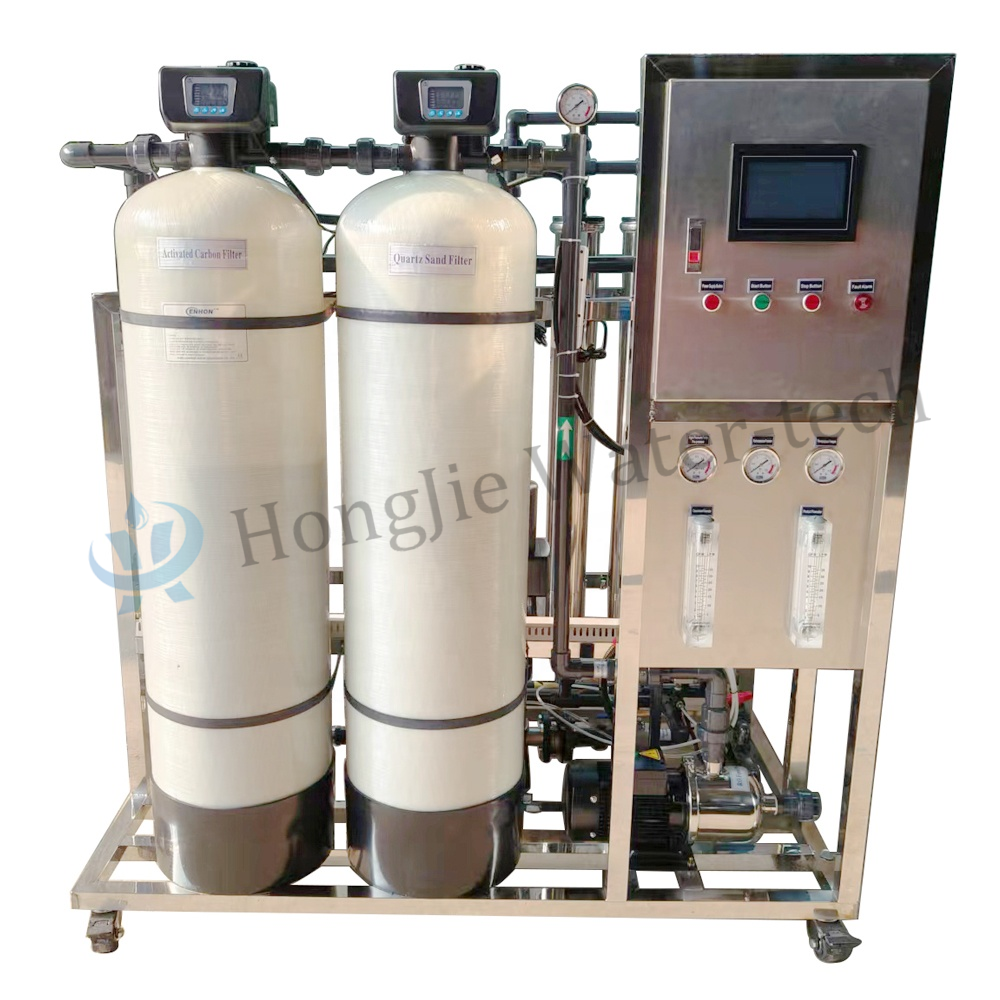

1000 LPH Reverse Osmosis Water Treatment System For Drinking Water
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | HongJie |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Model Number | HJ-ROFB1500L |
| Minimum Order Quantity | >=1sets |
| Price | negotiation |
| Packaging Details | export standard wooden case |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T,Western Union |
| Supply Ability | >300sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Flow Rate | 1000L/h (customizable ) | Core Technology | Reverse Osmosis (RO) |
|---|---|---|---|
| Operation Mode | Full Automatic (PLC-controlled) | Motive Force | Pressure |
| Material | SUS304,carbon,FRP | Produced Water Quality | Conductivity < 10μs/cm |
| Key Components | RO Membrane Modules | After-Sales Service | 1-Year Warranty (excluding Consumables) |
| Performance | Efficient Filtration | Working Pressure | 0.05-0.6MPa |
You can tick the products you need and communicate with us in the message board.
Product Description
1000 LPH Reverse Osmosis Water Treatment System for Drinking Water
I. Equipment Overview
The 1000 LPH Reverse Osmosis Water Treatment System is designed to provide a stable supply of clean, safe, and great-tasting drinking water. Utilizing advanced RO membrane filtration, the system efficiently removes dissolved solids, heavy metals, bacteria, viruses, organic contaminants, and other impurities from raw water sources, including tap water, well water, and groundwater.
This compact and efficient RO unit is built with high-quality components, including a stainless steel frame, high-pressure pump, precision filters, and premium RO membranes, ensuring long service life and reliable performance. With a production capacity of 1000 liters per hour, it is ideal for small industries, commercial buildings, communities, schools, hotels, and drinking water projects.
II. Process Flow
Raw water→ Raw water tank→ Booster pump→ Quartz sand filter→ Activated carbon filter→ Sodium ion softener →Precision filter→ High-pressure pump→Reverse Osmosis host→Pure water tank
III.Main Parameters of the Reverse Osmosis System
|
Item |
Specification |
|
Model |
1000 LPH RO Water Treatment System |
|
Capacity |
1000 Liters per Hour |
|
Raw Water Source |
Tap water / Well water / Groundwater |
|
Raw Water TDS |
≤ 2000 ppm (customizable) |
|
Recovery Rate |
50–70% (depending on feed water quality) |
|
Salt Rejection |
≥ 98% |
|
Working Pressure |
1.0 – 1.5 MPa |
|
Power Supply |
220V / 380V, 50Hz / 60Hz (optional) |
|
Power Consumption |
1.5–2.2 kW (depending on pump type) |
|
High-Pressure Pump |
Stainless steel pump (CNP / Shimge / Optional brand) |
|
RO Membranes |
2–4 pcs 4040 membranes (DOW / Vontron / Optional) |
|
Pre-filtration Stages |
PP sediment filter → Activated carbon → Softener / Sand filter (depending on configuration) |
|
RO Frame Material |
SUS304 stainless steel |
|
Control System |
Automatic controller / PLC (optional) |
|
Flow Meters |
Permeate & concentrate flow meters |
|
Pressure Gauges |
High-pressure & low-pressure gauges |
|
Conductivity Meter |
Online water quality monitoring |
|
Protection Functions |
Low-pressure protection / High-pressure shutdown / Auto-flush |
|
Operating Temperature |
5–45°C |
|
Dimension |
Approx. 1400 × 600 × 1500 mm (can be customized) |
|
Net Weight |
Approx. 120–160 kg (depends on configuration) |
Identify needs
Could you clarify the following issues, so that you can determine the right equipment for you?
Water quality problems
Example 1: sediment exceeds the standard/scale / turbid water / microbial exceeds the standard/ heavy metal exceeds the standard/money Yu exceeds the standard, etc.
Water standard
Example 1:Softened water/pure water/ultra-pure water/iron and manganese removal/sediment removal/sterilisation, etc.
Daily Water Consumption
Example 1:Whether there is a concentrated water consumption period/water consumption time/peak maximum water consumption/hourly average water consumption
Conclusion Example
5 tonnes per hour water softening equipment.
3 tonnes per hour reverse osmosis water purification equipment
If you can't answer the above questions clearly?
1. Daily Water Consumption: Just mail a bottle of water sample
2. Water Standard: Just tell me your industry.
3. Water Consumption: We can help you calculate the water consumption.
