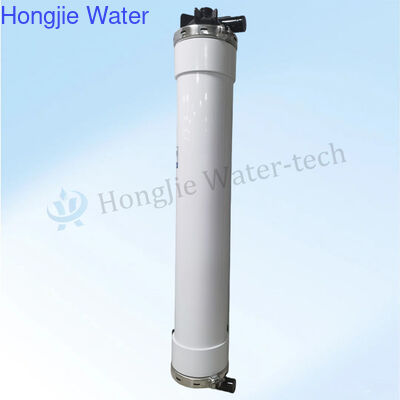

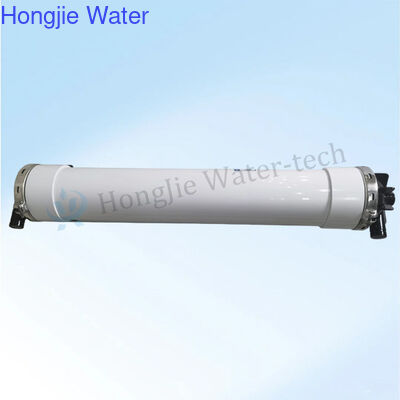

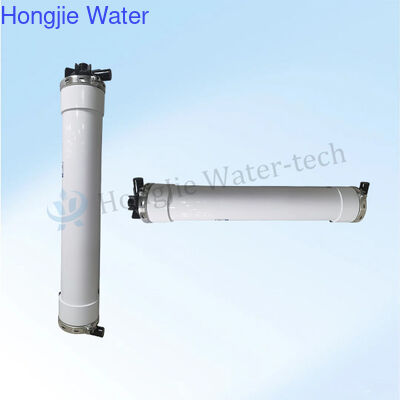

Pressure-Driven PES Ultrafiltration Membrane Module with 50 m² Effective Membrane Area and Modified Hollow Fiber Design

Brand Name:	Hongjie
Model Number:	HJ-UF10T
MOQ:	1Set
Price:	negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	>300sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen ,China

Certification:

ISO 14001,ISO 9001,CE,EPA

Effective Membrane Area:

50 M²

Module Length (incl. T End Caps):

2,101 Mm

Module Diameter:

250 Mm

Warranty:

1 Year

Feed Pressure:

5 Bar

Filtration TMP:

1.5 Bar

Packaging Details:

export standard wooden case

Highlight:

50 m² Effective Membrane Area Ultrafiltration Membrane Module

Modified PES Hollow Fiber UF Membrane Module

Pressure-Driven Filtration PES Membrane Module

Product Description

P Series | Pressure-Driven PES Ultrafiltration Membrane Module

The OSHINAS UF-MB 50 TR is a high-performance pressure-driven ultrafiltration (UF) membrane module designed for T-type rack systems. It utilizes advanced modified PES (Polyethersulfone) hollow fiber membranes to deliver reliable and stable filtration performance in municipal and industrial water treatment applications.

With excellent mechanical strength, chemical resistance, and long service life, UF-MB 50 TR is capable of efficiently removing suspended solids, colloids, bacteria, and viruses, making it an ideal solution for wastewater reuse and secondary filtration systems.

Key Features

Advanced PES Hollow Fiber Membrane

Modified PES porous membrane fibers with high mechanical strength
Excellent chemical resistance and oxidation tolerance
High removal efficiency for colloids, bacteria, and viruses
Optimized for feed water with high suspended solids
Optional coagulation process to enhance removal of algae and organic matter

Optimized Module Design

Innovative T-type end-cap structure for easy installation and system expansion
All wetted components are corrosion-resistant
Durable construction ensures long operating life
Simple operation with low maintenance requirements

Technical Specifications

General Information

Item	Specification
Filtration Type	Pressure-driven (inside-out)
Membrane Type	Hollow fiber
Membrane Material	Modified PES (Polyethersulfone)
Nominal Pore Size	0.02 μm
Operation Mode	Dead-end filtration
Housing Material	PVC-U (White)

Recommended Operating Conditions

Parameter	Value
Operating Temperature	1 - 40 °C
Operating pH (continuous)	3 - 11
Cleaning pH	1 - 13
Typical TMP	0.1 - 0.6 bar
Typical Backwash TMP	0.3 - 2.0 bar
Backwash Flux	230 L/(m²*h)
Backwash Flow Rate	11.5 m³/h

Frequently Asked Questions

What can we do?

We specialize in manufacturing reverse osmosis (RO), nanofiltration (NF), and ultrafiltration (UF) membranes. We also provide customized filtration solutions, various water treatment accessories, and technical support services.

Do you offer sample service?

Yes, we provide sample products for testing and evaluation. Please contact us to discuss the specific details and conditions.

Do you provide customized service?

Absolutely! We can tailor products to meet your unique requirements, including size, filtration capacity, and material specifications.
