30m³/H Double-Stage Industrial Reverse Osmosis System With EDI For Ultra-Pure Water Treatment

30m³/H Double-Stage Industrial Reverse Osmosis System With EDI For Ultra-Pure Water Treatment

Brand Name:	Hongjie
Model Number:	HJ-ROFB1500L
MOQ:	>=1sets
Price:	negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	>300sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO 14001,ISO 9001,CE,EPA

Product Name:

Reverse Osmosis Filtration System

Voltage:

220 V、380V

Capacity:

30TPH

Raw Water TDS:

<30000PPM

Pure Water TDS:

<500PPM

Warranty:

1 Year

Packaging Details:

export standard wooden case

Highlight:

30m³/H Capacity Reverse Osmosis System

Double-Stage RO Water Treatment Plant

EDI Integration Industrial RO System

Product Description

30m³/H Double-Stage Industrial Reverse Osmosis System With EDI For Electrical Industry

This advanced 30m³/H double-stage industrial reverse osmosis system integrates ultrafiltration, two-stage RO process, electrodeionization (EDI), and polishing mixed bed technologies to deliver ultra-pure water with conductivity below 0.05 µS/cm, specifically designed for the electrical industry.

System Configuration

The system combines multiple advanced filtration technologies including Ultrafiltration (UF), Two-Stage Reverse Osmosis (RO), Electrodeionization (EDI), and Polishing Mixed Bed (PMB) to produce ultra-pure water suitable for pharmaceutical manufacturing, semiconductor production, laboratories, and electronic manufacturing applications.

Equipment Technology

Core components feature internationally renowned brands with high-efficiency, low-noise high-pressure pumps and reverse osmosis membrane elements achieving up to 99.8% desalination rate.

High-pressure piping uses SUS304 stainless steel for durability
Low-pressure lines utilize UPVC for corrosion resistance and cleanliness
PLC automatic control with touchscreen interface
Automatic start/stop, pressure protection, and membrane flushing
Online water quality monitoring capabilities
Intuitive user interface for real-time operational monitoring
Fully unattended operation after commissioning

Technical Specifications

Parameter	Value / Description
Capacity	30T/H
Feed Water	Tap water
Technology	SWRO (Reverse Osmosis)
Operating Pressure	~55-65 bar (depending on water quality)
Numbers of Membrane of UF	16pcs/set two sets
Pre-treatment	Ultrafiltration System
RO Membrane Type	8040 Dow
RO Membrane Material	FRP
Permeate Water Quality	Drinking water standard (WHO / local)
Post-treatment	pH adjustment, UV / Chlorine disinfection
Automation	PLC / SCADA control for monitoring & alarms
Power Supply	380V / 50Hz (customizable)

Company Advantages

One-Stop Support

Complete service from design and manufacturing to installation, operation, and maintenance.

High-Standard Manufacturing

Precision pipe welding accurate to the millimeter
Mirror-finished joint grinding
Clear electrical wiring layouts with uniform labeling
Comprehensive testing and debugging of all valves and pipelines

Experienced Installation Team

Professional installation team with extensive industry experience.

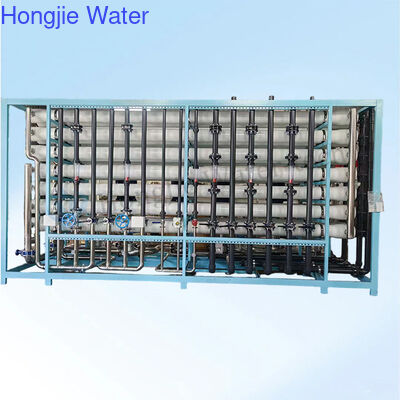

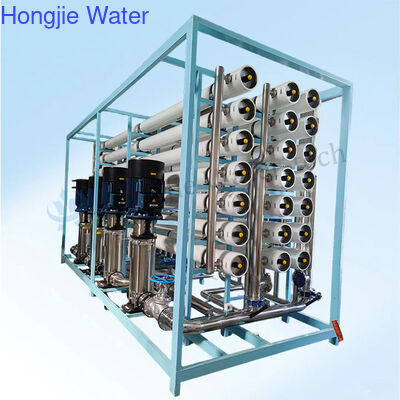

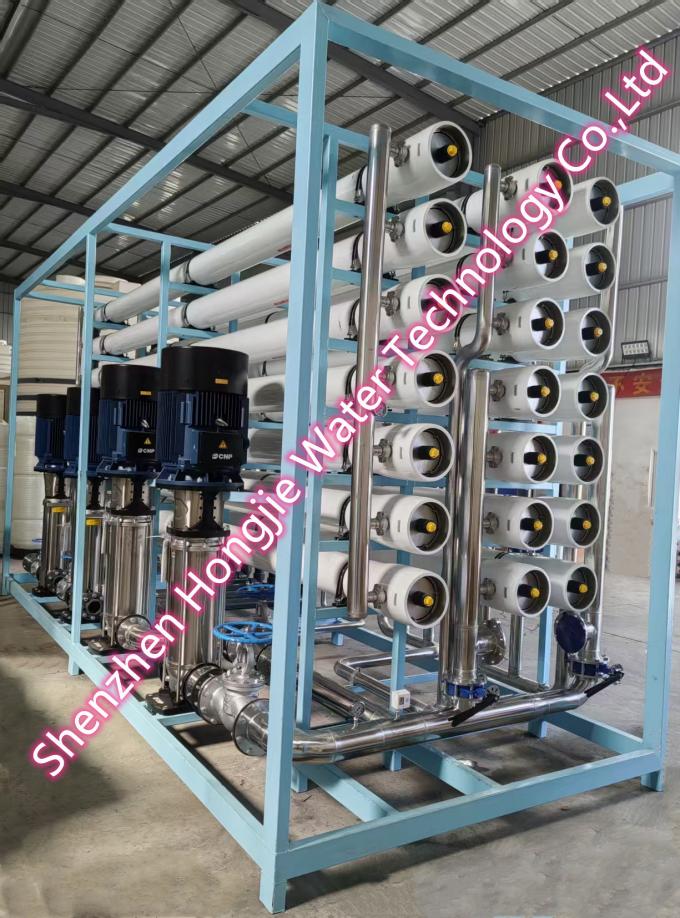

System Images

Frequently Asked Questions

Are you a trading company or a factory?

We are a source factory in Huizhou with offices in Shenzhen, China.

How Does Reverse Osmosis Work?

Reverse osmosis systems purify water by forcing pressurized water through a fine Aromatic polyamide membrane. For well or private water sources, disinfection and pre-filters may be required to remove contaminants that could damage the membrane.

How Do I Know What Size Unit to Buy?

R/O units are rated by daily treated water production. Consider factors like line pressure, water temperature, and storage tank backpressure when selecting unit size, and choose a larger-rated unit if these conditions are suboptimal.

Material of the reverse osmosis system?

Options include FRP filter + U-PVC pipe, stainless steel filter + U-PVC pipe, or total stainless steel construction.

What's your production Period?

50Hz voltage units require 5 working days; 60Hz units require 30 working days.

Guidelines for Getting a Proper Quotation

Specify your required production capacity (500L/H, 1T/H, 2T/H, etc.)
Identify your source water type (tap water, underground water, etc.)
Describe the intended use of the product water (drinking, bottled water, etc.)
Provide water analysis report if available
