Customizable 100tons Per Hour Ultrapure Water Systems For Lithium Battery Industry

  • Customizable 100tons Per Hour Ultrapure Water Systems For Lithium Battery Industry
  • Customizable 100tons Per Hour Ultrapure Water Systems For Lithium Battery Industry
Place of Origin Shenzhen,China
Brand Name HongJie
Certification ISO 14001,ISO 9001,CE,EPA
Minimum Order Quantity >=1sets
Price US$190000~US$195000
Packaging Details export standard wooden case
Delivery Time 1-7working days(depand on raw materials stocking)
Payment Terms L/C,D/P,T/T,Western Union
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flow Rate 100T Water Quality Resistivity ≥10-18.25 MΩ·cm
Core Process Double-pass Reverse Osmosis + EDI + Polishing Resin Core Components RO Membrane Modules, EDI Units
Operation Mode Fully Automated Product Features Stable Water Quality Output, Low Operational Costs
After-Sales Service 24/7 Technical Support, 2-Year Maintenance Power Supply 380V
Highlight

100tons Per Hour Ultrapure Water Systems

,

Customizable Ultrapure Water Systems

,

100tons Per Hour ultrapure water treatment
Leave a Message
Product Description

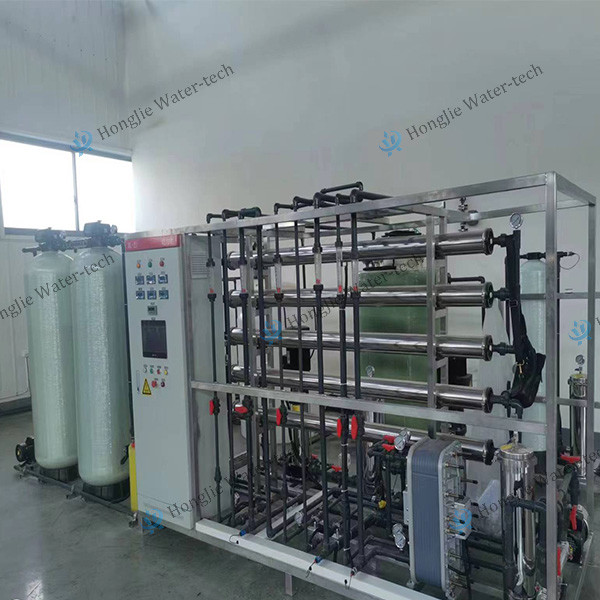

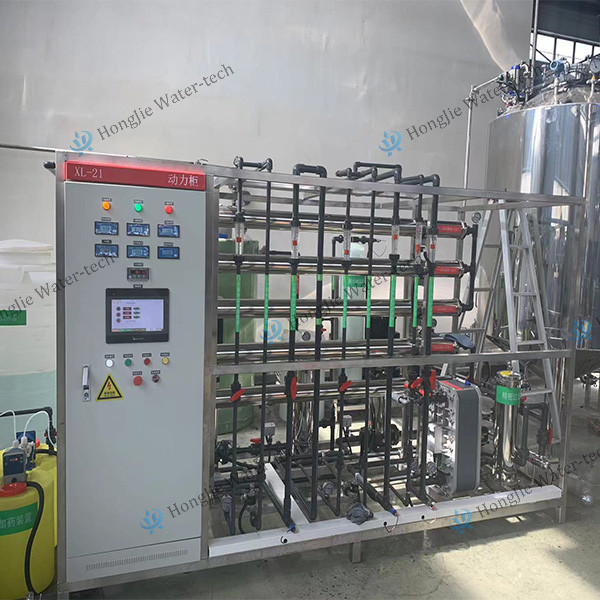

Customizable as Required 100 tons per hour Ultra-Pure Water Systems for Lithium Battery Industry



I. Equipment Overview

Our ultra-pure water solutions serve the entire battery industry spectrum—from lead-acid battery production and lithium battery manufacturing to solar cell fabrication and battery grid processing. The electrolyte preparation in batteries demands water of exceptional purity, typically requiring a conductivity ≤0.1 μs/cm (resistivity ≥10 MΩ・cm).



II.Process Flow Diagram

Raw Water → Storage Tank → Booster Pump → Flocculant/Reducer Dosing → (Multimedia + Activated Carbon Filter / UF) → Antiscalant Dosing → Safety Filter → High-Pressure Pump → Primary RO → pH Adjustment → Intermediate Tank → Secondary RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → EDI System → Ultra-Pure Water Tank → Terminal Pump → TOC Remover → Final Polishing → Delivery Point



III.Process Highlights

  • Multi-Stage Pretreatment: Removes particles, organics, and chlorine to protect RO membranes.
  • Dual RO System: Achieves  salt rejection rate for consistent high-purity water.
  • EDI Technology: Continuous electro-deionization eliminates the need for chemical regeneration.
  • Polishing Resin: Final purification stage for ultralow TOC and ionic contaminants.



IV.Paremeters

Item Specification
Electricity Supply 380V
Produced Water Quality Resistivity ≥15-18.25 MΩ·cm
Core Technology Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components RO Membrane Modules, EDI Units
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service  2-Year Warranty For Standard Equipment



Ⅴ.Key Advantages

  • Fully Automated Operation: Seamless switch between automatic and manual modes, with programmable backwash and regeneration cycles for hassle-free maintenance
  • Plug-and-Play Design: Factory-preassembled wiring minimizes on-site installation time by up to 30%
  • RO System Longevity: Recirculation pipelines and chemical cleaning modules ensure optimal membrane performance
  • Corrosion-Resistant Infrastructure: UPVC piping ensures low contamination risk and long-term durability
  • Integrated Intelligence: Centralized control panel with real-time instrumentation for intuitive management
  • RO Membrane Protection: Automatic startup and timed cleaning cycles extend membrane lifespan by 70%
  • Adaptive Maintenance: Smart prompts for consumable replacement based on actual water quality data, not fixed schedules
  • Intelligent Safety Features: Auto-shutdown for raw water shortages and smart tank level control to optimize productivity



ⅤI. Design Standards & Compliance

  1. Custom Engineering: Based on your detailed water analysis report.
  2. Industry Certifications:
    • NB/T 10790-2021 (Technical Specifications for Water Treatment Equipment)
    • GB/T 19249-2017 (Reverse Osmosis Water Treatment Equipment)
    • IEC 439-1 (Low Voltage Switchgear and Controlgear Assemblies)
    • GB 6682-2008 (Laboratory Ultra-Pure Water Standards)
    • GB/T 11446.1-2013 (Electronic Grade Water Specifications)



VII.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
