Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System

  • Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System
  • Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System
Place of Origin Guangdong,China
Brand Name HongJie
Certification ISO 14001,ISO 9001,CE,EPA
Minimum Order Quantity >=1sets
Price negotiation
Packaging Details export standard wooden case
Delivery Time 10-15working days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ultra-pure Water Systems Ultrafiltration Plant 30TH
Core Process Double-pass Reverse Osmosis + EDI + Polishing Resin Operation Mode Fully Automatic
Application Filtration Processing Pre-treatment+uf Filter
Highlight

Large Scale Ultra Pure Water Equipment

,

30T Per Hour Ultrafiltration System
Leave a Message
Product Description

I. Product Introduction

Ultra-pure water equipment is a specialized device that employs multi-stage precision treatment processes to remove nearly all impurities from water, including ions, organic compounds, colloids, microorganisms, particles, etc., thereby producing ultra-pure water with extremely high resistivity (typically ≥18 MΩ·cm at 25°C). Its core objective is to meet the requirements of industries and fields that are extremely sensitive to water quality, such as semiconductors, pharmaceuticals, precision electronics, and high-end scientific research.



II. Design Standards & Compliance

  1. Custom Engineering: Based on your detailed water analysis report.
  2. Industry Certifications:
    • NB/T 10790-2021 (Technical Specifications for Water Treatment Equipment)
    • GB/T 19249-2017 (Reverse Osmosis Water Treatment Equipment)
    • IEC 439-1 (Low Voltage Switchgear and Controlgear Assemblies)
    • GB 6682-2008 (Laboratory Ultra-Pure Water Standards)
    • GB/T 11446.1-2013 (Electronic Grade Water Specifications)

III. Process Flow Diagram

Standard Configuration:
Raw Water → Raw Water Tank → Booster Pump → Flocculant/Reducer Dosing → Activated Carbon Filter → Ultrafiltration (UF) → Scale Inhibitor Dosing → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage High-Pressure Pump → 2nd Stage RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → Cartridge Filter → EDI System → Ultra-Pure Water Tank → Transfer Pump → TOC Removal Unit → Polishing Resin → Final Filter → Point of Use



Process Highlights:



  • Multi-Stage Pretreatment: Removes particles, organics, and chlorine to protect RO membranes.
  • Dual RO System: Achieves  salt rejection rate for consistent high-purity water.
  • EDI Technology: Continuous electro-deionization eliminates the need for chemical regeneration.
  • Polishing Resin: Final purification stage for ultralow TOC and ionic contaminants

    Specifications

    Item Specification
    Electricity Supply 380V
    Productivity 30TH
    Core Technology Double-stage Reverse Osmosis (RO)
    Key Components RO Membrane Modules
    Operation Mode Full Automatic (PLC-controlled)
    Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
    After-Sales Service 2-Year Warranty For Standard Equipment

IV. Design Advantages

  1. Fully Automated Control:
    • Automatic backwash and regeneration cycles.
    • Manual override option for maintenance.
  2. Factory-Integrated Wiring:
    • Pre-wired components reduce on-site installation time .
  3. Advanced Maintenance Features:
    • RO chemical cleaning system extends membrane life.
    • Recirculation loops ensure water quality stability.
  4. Premium Materials:
    • 304 stainless steel and UPVC piping for corrosion resistance.
  5. Intuitive Operation:
    • Integrated control panel with real-time monitoring.
    • Remote access option for troubleshooting.
  6. Low Maintenance:
    • Durable components designed for continuous operation.



Photoes:



30T ion exchange equipment

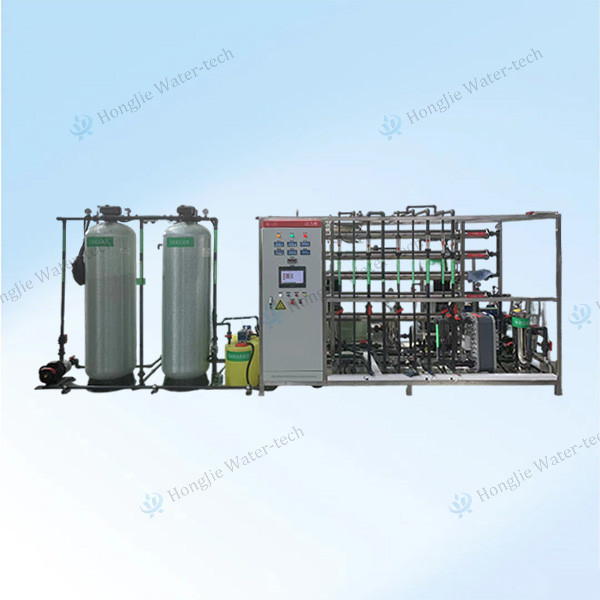

Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System 0

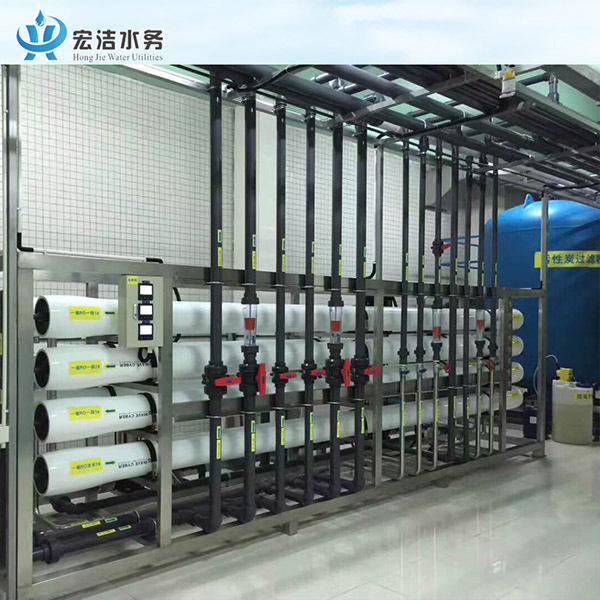

Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System 1

Contact us today to discuss your specific requirements and receive a customized solution proposal.



Hongjie Water Technology - Your Trusted Partner for Semiconductor Ultra-Pure Water Solutions
