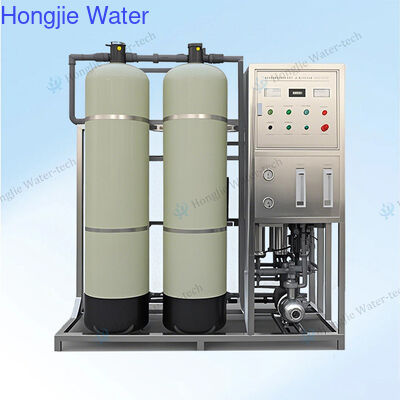

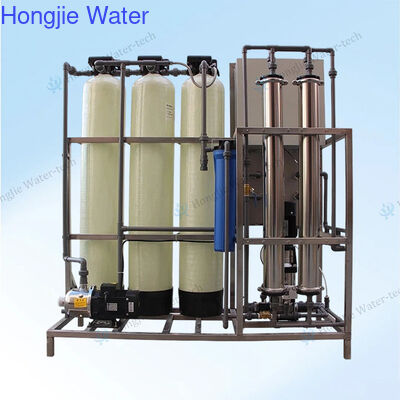

Industrial 500–1000 LPH RO Water Treatment Plant with Softening System for Hotel Service
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | HongJie |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Model Number | HJ-ROFB3000L |
| Minimum Order Quantity | >=1sets |
| Price | US$5020~US$6000 |
| Packaging Details | export standard wooden case |
| Delivery Time | 7-10working days(depand on raw materials stocking) |
| Payment Terms | T/T |
| Supply Ability | >300sets/month |
Product Details
| Flow Rate | 500L-1000L/H | Produced Water Quality | Conductivity < 10μs/cm |
|---|---|---|---|
| Frame | Stainless Steel Or Carbon Steel With Anti-corrosion Coating | Piping | Food-grade UPVC Or Stainless Steel |
| Membrane Housing | FRP Pressure Vessels | Recovery Rate | 60–75% |
| Highlight | 3000L/H RO Water Treatment Machine,PLC Controlled RO Water Treatment Machine,3000L/H Reverse Osmosis Filter System |
||
Product Description
500–1000 L/H Reverse Osmosis Water Purification System For Restaurants And Hotels
Reverse Osmosis Technology Overview
With the increasing demand for high-quality water in the catering and hospitality industry, restaurants and hotels require reliable water treatment systems to ensure safe and stable water supply for food preparation, beverages, and guest consumption.
The 500–1000 L/H double-stage reverse osmosis (RO) water purification system with softening unit is specifically designed to provide high-quality purified water for restaurants, hotels, coffee shops, and commercial kitchens. By combining water softening pretreatment with a two-stage RO purification process, the system effectively removes hardness, dissolved salts, microorganisms, and other impurities to ensure consistent high-quality drinking water.
Process Flow:
Raw Water → Raw Water Tank → Booster Pump → Quartz Sand Filter → Active Carbon Filter → Softener → Precision Filter → Pressure Pump → Reverse Osmosis Membrane → Pure Water Tank → Pure Water Output
Process Functions
Water Softening System
The softener removes calcium and magnesium ions through ion exchange resin, reducing water hardness and preventing scaling on the RO membranes, thereby extending membrane lifespan.
First-Stage Reverse Osmosis
The first-stage RO system removes most dissolved salts, organic matter, heavy metals, and microorganisms using high-pressure membrane separation technology.
Second-Stage Reverse Osmosis
The second-stage RO provides further deep purification and desalination, ensuring stable and high-quality drinking water.
Technical Specifications
| Item | Specification |
|---|---|
| Electricity Supply | 380V |
| TDS | ≤ 10 mg/L |
| Core Technology | Double-stage Reverse Osmosis (RO) |
| Key Components | RO Membrane Modules |
| Operation Mode | Full Automatic (PLC-controlled) |
| Hardness | Nearly 0 |
| After-Sales Service | 2-Year Warranty For Standard Equipment |
| Salt Rejection Rate | ≥ 98% |
Design Advantages
Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for operational flexibility.
Factory-Integrated Wiring: Reduces on-site installation and debugging time with pre-completed unit connections.
RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
Sanitary Materials: 304/316L stainless steel piping with automatic welding and endoscopic inspection for flawless hygiene.
Dual Sterilization Options: Choose between ambient temperature or hot water disinfection systems to meet hygiene standards.
Hygiene Guaranteed: Purified water storage tanks with breathing filters, UV sterilizers, and microporous filters ensure pristine water quality.
User-Friendly Operation: Integrated control and instrumentation systems make operation and management intuitive.
Design Standards and Compliance
- Tailored Solutions: Customized designs based on your detailed water quality report for perfect process fit
- National Food Safety Standards: Compliant with GB 19298-2014 (Packaged Drinking Water) and GB 14881-2013 (General Hygienic Practices for Food Production)
- Industry Specifications: Aligned with JB/T 2932-1999 (Water Treatment Equipment), CJ/T119-2000 (RO Systems), and GB/T 12771-2019 (Stainless Steel Piping)
- Applications
This system is widely used in:
-
Hotel kitchen water treatment systems
-
Restaurant drinking water systems
-
Coffee shops and beverage preparation
-
Chain restaurant water supply
-
Small-scale food processing lines
