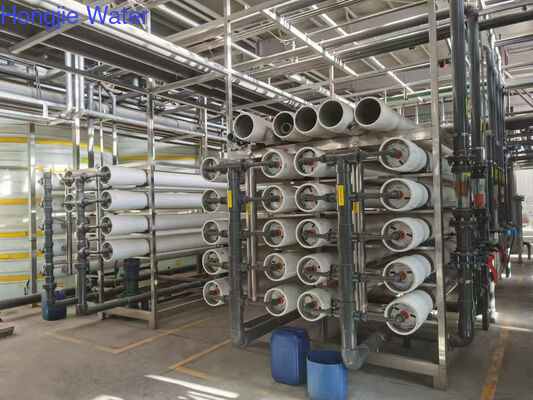

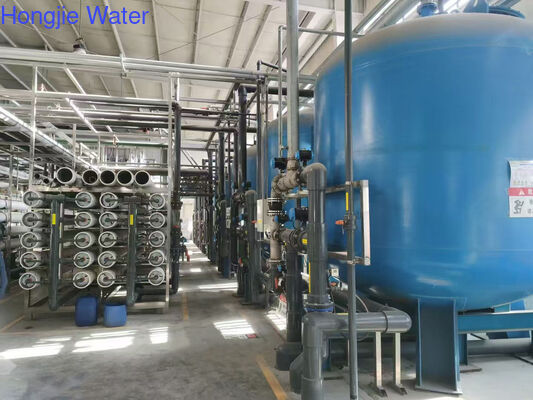

90m³/h Industrial RO EDI Water System with Resistivity ≥15-18.25 MΩ·cm and Double-pass RO + EDI + Polishing Resin for Power Electronics and Chemical Industry
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | HongJie |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Minimum Order Quantity | >=1sets |
| Price | US$205400~US$211000 |
| Packaging Details | export standard wooden case |
| Delivery Time | 1-7working days(depand on raw materials stocking) |
| Payment Terms | L/C,D/P,T/T,Western Union |
| Supply Ability | >300sets/month |
Product Details
| Flow Rate | 90m³/h | Water Quality | Resistivity ≥15-18.25 MΩ·cm |
|---|---|---|---|
| Core Process | Double-pass Reverse Osmosis + EDI + Polishing Resin | Key Components | RO Membrane Modules, EDI Module |
| Electricity Supply | 380V/220V | EDI Product Water Conductivity | ≤ 5 μS/cm (adjustable) |
| Recovery Rate | 50–65% (depending On Raw Water Quality) | RWater Hardness | ≤ 300 Mg/L (softener Required If Higher) |
| Highlight | Industrial Ultra Pure Water Equipment,Customizable Ultrapure Water Systems |
||
Product Description
90M³/h Industrial RO EDI Water System For Power Electronics And Chemical Industry
System Overview
This 90 m³/h industrial reverse osmosis (RO) system delivers high-quality water for industrial processes requiring ultra-pure or high-purity water. Ideal for power generation, electronics, chemical production, pharmaceuticals, and beverage manufacturing, the system integrates pretreatment, RO, EDI (Electrodeionization), and filtration to ensure stable, reliable water quality.
EDI (Electrodeionization) combines ion exchange resin with electrodialysis membranes to continuously produce high-purity water with resistivity up to 18 MΩ*cm or higher. As a core component of ultra-pure water production, EDI represents the transition from chemical regeneration to continuous physical purification. In semiconductor and pharmaceutical industries, EDI has replaced mixed-bed systems as the industry standard (SEMI F63).
Main Process Flow
Raw Water → Raw Water Tank → Booster Pump → Flocculant/Reducer Dosing → Activated Carbon Filter → Ultrafiltration (UF) → Scale Inhibitor Dosing → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage High-Pressure Pump → 2nd Stage RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → Cartridge Filter → EDI System → Ultra-Pure Water Tank → Transfer Pump → TOC Removal Unit → Polishing Resin → Final Filter → Point of Use
Unit Functions
- Multi-Media Filter: Removes suspended solids, sediment, rust, and turbidity to protect downstream RO membranes and equipment
- Activated Carbon Filter: Removes residual chlorine, organic matter, color, and odor to prevent oxidation or fouling of RO membranes
- Precision Filter (5 μm or finer): Further removes fine particles to protect RO system
- Reverse Osmosis (RO) System: High-pressure pumps force water through RO membranes, removing dissolved salts, heavy metals, microorganisms, and colloids with salt rejection ≥ 98%
- EDI Module (Electrodeionization): Continuously removes residual ions without chemical regeneration, producing high-purity water with stable conductivity (1-5 μS/cm)
- Pure Water Tank & Circulation System: Ensures stable water supply with circulation pump to maintain flow and prevent water quality deterioration
Core EDI Components and Materials
| Component | Material and Function | Industry Standard |
|---|---|---|
| Ion Exchange Resin | Nuclear-grade granular resin (e.g., Purolite® NRW1600), particle size 0.6-0.7 mm, exchange capacity ≥ 1.8 eq/L | ASTM D1782 |
| Ion Exchange Membrane | Perfluorosulfonic acid membrane + perfluoroquaternary ammonium membrane (e.g., DuPont Nafion®), ion selectivity > 98% | SEMI F73 |
| Diaphragm Flow Channel | Food-grade PP or PVDF, thickness 0.8-1.0 mm, turbulent flow design to prevent scaling | FDA 21 CFR 177 |
| Electrode | Titanium-plated ruthenium anode/stainless steel cathode, corrosion-resistant current density > 100 mA/cm² | ISO 9001 |
Operational Guidelines
- Raw Water Quality Monitoring: Regularly check hardness, residual chlorine, and turbidity to prevent scaling or RO membrane damage
- RO System Protection: Low-pressure protection to prevent pump dry running; high-pressure protection to prevent membrane damage; periodic membrane flushing to reduce fouling
- EDI Module Operation: Ensure stable RO permeate water quality; avoid high hardness or high CO₂ content entering EDI; monitor conductivity for stable water quality
- Circulation System Maintenance: Prevent stagnation and microbial growth; regularly disinfect and clean tanks and pipelines
- Automatic Control & Alarm System: PLC automatically manages start/stop, flushing, and alarms; immediate response to abnormal conditions ensures safe operation
Complete Turnkey Solutions
We provide comprehensive solutions from design and production to delivery, installation, and commissioning, ensuring a seamless project experience. Our RO, EDI, and ultra-pure water systems are trusted across industrial, pharmaceutical, electronics, and food & beverage sectors.
