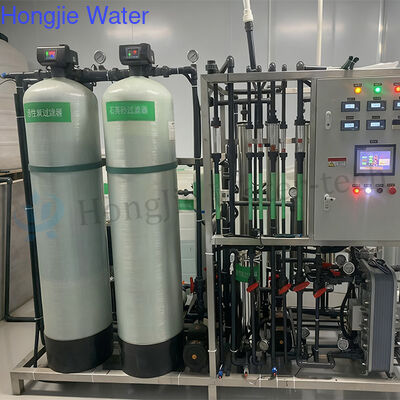

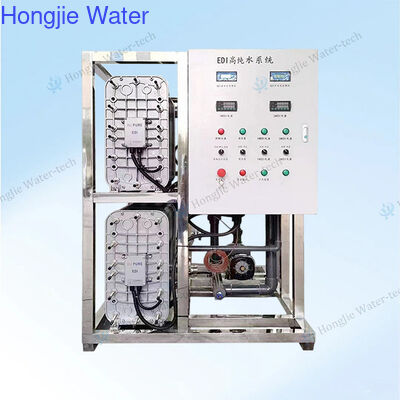

500l/h Ultrapure Water System with RO + EDI Technology and PLC Control for Precision Instruments

500l/h Ultrapure Water System with RO + EDI Technology and PLC Control for Precision Instruments

Brand Name:	HongJie
Model Number:	HJ-UPWBl500L
MOQ:	>=1sets
Price:	US$2105~US$2200
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	>300sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO 14001,ISO 9001,CE,EPA

Flow Rate:

500l/h(Customizable)

Resistivity:

≥ 18.2 MΩ·cm @ 25°C

Core Process:

Reverse Osmosis + EDI

Core Components:

RO Membrane Modules, EDI Units

Operation Mode:

Fully Automated With PLC Control

After-Sales Service:

24/7 Technical Support,2-Year Maintenance

TOC:

<10 Ppb

Particles:

≤ 1 Particle/mL (> 0.1 µm Or > 0.2 µm)

Packaging Details:

export standard wooden case

Highlight:

500l/h Ultra Pure Water Equipment

500l/h industrial water purifier

Product Description

500L/H Turnkey Water Purification System With RO + EDI

Bespoke 500 liters per hour ultrapure water filtration system designed specifically for blank controls in precision analytical instruments.

System Overview

The 500L/H Ultra Pure Water System is specially engineered to supply high-purity water for blank controls in precision analytical instruments including HPLC, LC-MS, ICP, and other laboratory equipment. This system ensures consistent water quality that is critical for accurate experimental results and instrument calibration.

Water Purification Process

Raw water → Multi-stage filtration → Precision filtration → RO → Ion exchange/EDI → UV sterilization → Ultrafiltration/Microfiltration → Outlet water

Product Highlights

High Purity Water: Produces 500 L/H of ultra-pure water with resistivity ≥ 15 MΩ*cm and conductivity ≤ 0.1 μS/cm
RO & EDI Technology: Double-stage reverse osmosis and electrodeionization ensure stable, chemical-free high-purity water
Laboratory-Ready: Ideal for blank controls, mobile phase preparation, and precision instrument rinsing

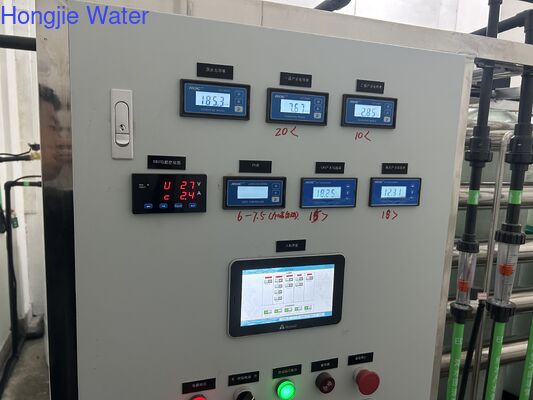

Automatic Operation: PLC-controlled system with online conductivity monitoring, alarms, and safety protection
Turnkey Service: Delivered pre-assembled with installation guidance, training, and after-sales support

Technical Specifications

Parameter	Specification
Production Capacity	500 L/H
RO & EDI Water Resistivity	≥ 15 MΩ*cm
Conductivity	≤ 0.1 μS/cm
Total Organic Carbon (TOC)	≤ 50 ppb
Bacteria	≤ 1 CFU/ml
Silica	≤ 10 ppb
Filtration	0.22 μm terminal filter
Raw Water Requirements	Pretreated water with low turbidity and hardness
Recovery Rate	≥ 60%
Materials	Stainless steel & PE components for purity and durability
Control System	PLC automatic operation, conductivity monitoring, alarms

Key Points for Using Ultrapure Water

Use immediately after dispensing
Avoid storage
Dedicated water outlet
Regular monitoring and maintenance
Select the appropriate water quality level

Quotation Guidelines

To receive a proper quotation, please provide the following information:

Raw water source (tap water, well water, sea water, etc.)
Water analysis report (TDS, conductivity, resistivity, etc.)
Required production capacity (5m³/H, 50m³/H, 500m³/H, etc.)
Intended application (industrial, food and beverage, agriculture, etc.)
