20000L/H FRP Tank Water Softening Equipment For Circulating Water Cooling Tower Central Air Conditioning

20000L/H FRP Tank Water Softening Equipment For Circulating Water Cooling Tower Central Air Conditioning

Brand Name: Hongjie
Model Number: HJ-WSCir20T
MOQ: 1set
Price: negotiation
Payment Terms: T/T
Supply Ability: >300sets/month
Detail Information
Place of Origin:
Shenzhen,China
Certification:
ISO 14001,ISO 9001,CE,EPA
Product Name:
FRP Water Tank
Flow Rate:
20000L/H
Usage:
Pre-filtration
Application:
Water Storage
Function:
Water Filter Tank
Filter Media:
Sand+carbon+softener
Packaging Details:
export standard wooden case
Highlight:

FRP Tank Water Softening Equipment

,

20000L/H Water Softening Equipment

,

20000L/H Water Treatment Softener

Product Description

I.Introduction to Automatic Water Softening System
Water softening equipment refers to devices that reduce water hardness. It can remove calcium and magnesium ions from  water sources with high hardness, thereby reducing the amount of calcium and magnesium ions in the water. This helps prevent scale buildup in hot water equipment and pipes, improves thermal efficiency, and extends the lifespan of the equipment.


II.Details of  Product Description

Specification Description
Model HJ-WSCir20T
Flow rate 20000L/H
Inlet Water Hardness  ≤8 mmol/L
Outlet Water Hardness ≤0.03 mmol/L
Working Pressure  0.2-0.6 MPa
Working Temperature  2-50℃
Free Chlorine in Inlet Water ≤0.3 mg/L
Suspended Solids in Inlet Water <5 mg/L
Iron Content in Inlet Water 0.3 mg/L


III.Softening System For Circulating Cooling Water

If the circulating water is hard water, it will form scale on the surfaces of pipes and heat exchangers, causing a sharp drop in cooling/heating efficiency. Softened water can reduce the frequency of equipment cleaning (from once a month to once every quarter) and lower maintenance costs.

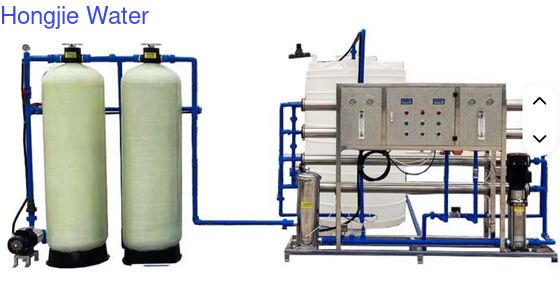

20000L/H FRP Tank Water Softening Equipment For Circulating Water Cooling Tower Central Air Conditioning 0

IV:Application

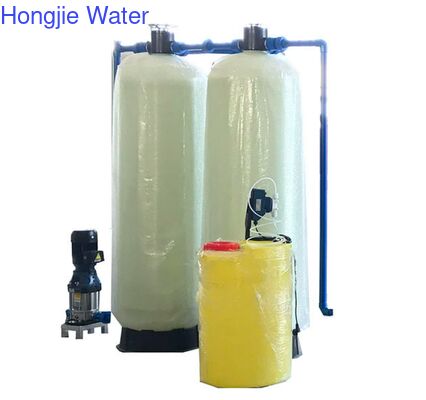

20000L/H FRP Tank Water Softening Equipment For Circulating Water Cooling Tower Central Air Conditioning 1

IV.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
