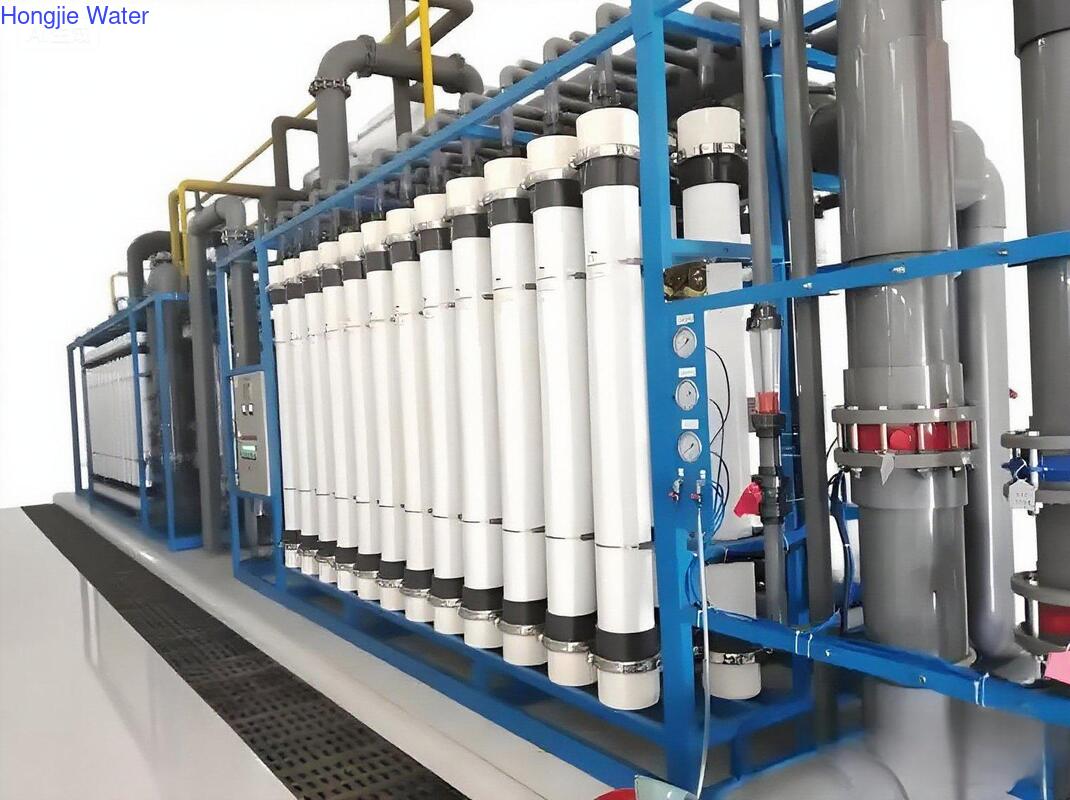

High-efficiency Ultrafiltration (UF) Systems For Industrial Wastwater Treatment 60TPH
| Place of Origin | Shenzhen,Guangdong |
|---|---|
| Brand Name | HJW |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Minimum Order Quantity | 1set |
| Price | US$139200~US$144500 |
| Packaging Details | export standard wooden case |
| Delivery Time | 1-7working days(depand on raw materials stocking) |
| Payment Terms | L/C,D/P,T/T,Western Union |
| Supply Ability | >300sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 60m³/H（Customizable) | Working Voltage | 380V/220V/50Hz |
|---|---|---|---|
| Operation Method | Manual Or Automatic Operation | Recovery Rate | 50-65% |
| HS Code | 84212199 | Usage | Environmental Protection, Chemical Industry |
Product Description
I.Overview
Ultrafiltration (UF) systems are mainly used in industrial wastewater treatment for suspended solids removal, oil-water separation, heavy metal recovery and wastewater reuse, which can significantly improve water quality and reduce the subsequent treatment load. Its core value in industrial wastewater treatment is: resource recovery (such as heavy metals, protein enrichment and reuse), emission reduction and efficiency (reduce COD, color, to meet the stringent emission standards), process adaptability (flexible combination of RO, electrolysis and other units to deal with complex wastewater).
II.Typical Process Flow
Electroplating Wastewater Treatment (Heavy Metal Recovery):
Electroplating wastewater → adjust pH to 9~10 (metal hydroxide formation) → ultrafiltration (50 kDa) → electrolytic recovery of metals in the concentrated solution → filtrate discharged in accordance with standards
Dyeing wastewater decolorization and reuse:
dyeing wastewater → coagulation (PAC) → ultrafiltration (10 kDa) → activated carbon adsorption → RO → reuse
Petrochemical oil wastewater treatment:
oil-containing wastewater → air flotation emulsion breaking → ultrafiltration (0.02 μm) → effluent oil content <5 mg/L → re-injection or discharge
III.Core Attribute Parameters
| Performance Requirements for Ultrafiltration Membranes | |||||||
| Parameter | Typical Values for Industrial Wastewater | Description | |||||
| Membrane Material | PVDF, PES, Ceramics | PVDF is resistant to organic solvents; Ceramics are resistant to high temperature (>80℃). | |||||
| Pore Size | 0.01~0.05 μm | Dyeing wastewater: 0.02 μm; Oily wastewater: 0.05 μm. | |||||
| Flux (LMH) | 15~50 (Highly Polluted Wastewater) | Electroplating wastewater: 20~30; Food wastewater: 40~60. | |||||
| Operating Pressure | 1~3 bar | High-viscosity wastewater (e.g., papermaking black liquor) requires higher pressure. | |||||
| pH Resistance Range | 2~12 (During Chemical Cleaning) | Electroplating wastewater requires resistance to strong alkali (pH≥10). | |||||
| Treatment Effects | |||||||
| Wastewater Type | Ultrafiltration Effluent | Discharge Standard | |||||
| Electroplating Wastewater | Ni²⁺ <1 mg/L | Emission Standard for Electroplating Pollutants (Table 3) | |||||
| Dyeing Wastewater | COD 200~300 mg/L | Discharge Standard for Water Pollutants in Textile Dyeing and Finishing Industry | |||||
| Oily Wastewater | Oils <5 mg/L | Emission Standard for Pollutants in Petrochemical I | |||||
IV.Typical Application Scenarios
Plating/Electronics
Textile Printing & Dyeing
Petrochemical
Food Processing
Paper Making
V.Technical Advantages
High-efficiency separation
Modular design
Low chemistry
VI.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
