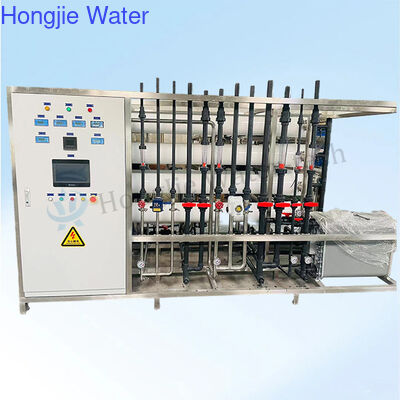

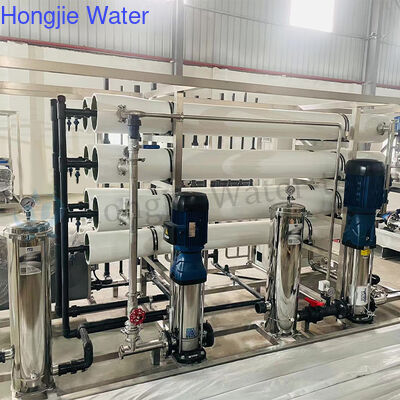

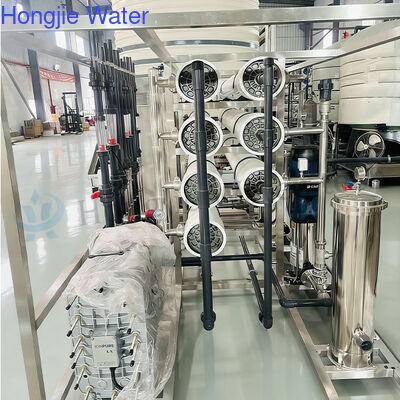

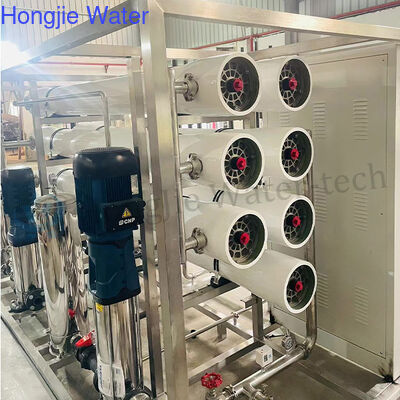

5 M³h Industrial RO Filtration System With Electrodeionization (EDI) For UltraPure Water Production
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V, 220V/50HZ Etc; (Power Supply Can Be Customized) | Warranty | 1 Year |
|---|---|---|---|
| Control | Electric Auto Control (PLC ) | Desalination Rate | ≥ 99% |
| Material | Stainless Steel 304/Fiberglass | Productivity | 5TPH / Custom |
| Product Name | Ultrapure Water System | Filter Media | Sand+carbon+softener+RO+EDI |
Product Description
5 M³h Industrial RO Filtration System With Electrodeionization (EDI) For UltraPure Water Production
I.RO EDI water treatment system for ultra-pure water
Purified water is a type of water that has almost all the impurities, including conducting medium, colloids, and organic matter (such as bacteria). The conductivity of purified water is about 0.1-0.55μs/cm, and its resistivity(25℃) is more than 10MΩ·cm, and its TDS is less than 0.1mg/l. In theory, the conductivity of purified water is 0.055μs/cm, and its resistivity(25℃) is 18.3MΩ·cm. Our company can supply various purified water production equipment according to customers’ detailed requests, such as single-pass RO, double-pass RO, RO+EDI, and RO+mixed bed, among others.
II.Technical specification of the RO EDI water treatment system for ultra-pure water:
- Rejection: 99.8%;
- Organic Removing Level: >150MW;
- Bacteria Removing Level: >99%;
- Pyrogen Removing Level: >99%;
- Particle Removing Level: >99%;
- Requests On Inlet Water:
- SDI<5; Residual Chlorine: <0.1mg/l; PH: 5-8;
III.RO System Parameters
- RO Type: Two-pass Reverse Osmosis
- RO Capacity: 5 m³/h
- Salt Rejection: ≥ 99.5%
- RO Membrane: DuPont / Toray / Hydranautics (optional)
- Operating Pressure: 1.2 – 1.8 MPa
- Recovery Rate: 70–75%
- RO Permeate Conductivity: ≤ 10 μS/cm
- High Pressure Pump: SS304 / SS316 centrifugal pump
Identify needs
Clarify the following issues, and you can determine the right equipment for you.
Water quality problems
Example 1: sediment exceeds the standard/scale / turbid water / microbial exceeds the standard/ heavy metal exceeds the standard/money Yu exceeds the standard, etc.
Water standard
Example 1:Softened water/pure water/ultra-pure water/iron and manganese removal/sediment removal/sterilisation, etc.
Daily Water Consumption
Example 1:Whether there is a concentrated water consumption period/water consumption time/peak maximum water consumption/hourly average water consumption
Conclusion Example
5 tonnes per hour water softening equipment.
3 tonnes per hour reverse osmosis water purification equipment
If you can't answer the above questions clearly?
1. Daily Water Consumption: Mail a bottle of water sample
2. Water Standard: Just tell me your industry.
3. Water Consumption: We can help you calculate the water consumption.
