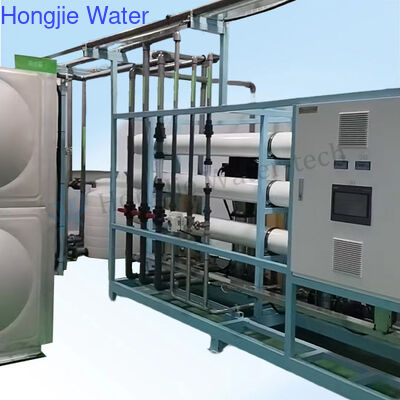

20m³/h MMF + ACF + Double Pass RO + EDI Ultrapure Water Equipment For Delivery To Poland
Product Details
| Flow Rate | 20m³/h | Warranty | 1 Year |
|---|---|---|---|
| System Control | Electric Auto Control (PLC ) | Desalination Rate | ≥ 97% |
| Temperature Range | 5°C ~ 40°C | Total Dissolved Solids (TDS) | ≤ 10 Ppm |
| Product Name | Ultrapure Water System | Filter Media | Sand+carbon+softener+RO+EDI |
Product Description
Advanced 20m³/h Ultrapure Water System (MMF + ACF + Double Pass RO + EDI) Delivered to Poland
I.Product Description
The 20m³/h MMF + ACF + Double Pass RO + EDI Ultrapure Water Equipment is a high-performance water treatment system designed for industries that require ultrapure water, such as pharmaceuticals, electronics, and food & beverage production. This advanced system delivers superior purification through a multi-stage filtration process, ensuring water quality meets the most stringent standards.
II.Flowchart
Raw Water → Quartz Sand Filter → Activated Carbon Filter → Security Filter → Primary RO → Secondary RO → UV Sterilizer → EDI Precision Filter → EDI → Final Filter.
III.Specification
| Item | Specification |
|---|---|
| Flow Rate | 20m³/h |
| Input Water Quality | Raw Water |
| Output Water Resistivity | ≥18.2 MΩ·cm |
| Total Dissolved Solids (TDS) | ≤ 10 ppm |
| Desalination Rate | ≥ 97% |
| Bacterial Removal Rate | ≥ 99.9% |
| pH Range | 5.5 ~ 8.5 |
| Operating Pressure (RO) | 6 ~ 10 bar |
| Recovery Rate (RO) | ≥ 50% |
| Energy Consumption | Low energy design, energy-saving mode |
| Temperature Range | 5°C ~ 40°C |
| System Control | PLC Automation with HMI Interface |
| Power Supply | 380V, 50Hz (Customizable) |
| Warranty | 12 months |
Identify needs
Clarify the following issues, and you can determine the right equipment for you.
Water quality problems
Example 1: sediment exceeds the standard/scale / turbid water / microbial exceeds the standard/ heavy metal exceeds the standard/money Yu exceeds the standard, etc.
Water standard
Example 1:Softened water/pure water/ultra-pure water/iron and manganese removal/sediment removal/sterilisation, etc.
Daily Water Consumption
Example 1:Whether there is a concentrated water consumption period/water consumption time/peak maximum water consumption/hourly average water consumption
Conclusion Example
5 tonnes per hour water softening equipment.
3 tonnes per hour reverse osmosis water purification equipment
If you can't answer the above questions clearly?
1. Daily Water Consumption: Mail a bottle of water sample
2. Water Standard: Just tell me your industry.
3. Water Consumption: We can help you calculate the water consumption.
