High Purity 20000LPH RO Water Filter Machine RO Water Treatment Equipment Plant

High Purity 20000LPH RO Water Filter Machine RO Water Treatment Equipment Plant

I. RO System  Description

Reverse osmosis technology is a physical separation process for water purification through a semi-permeable membrane. Its core principle is to utilize the selective permeability of the semi-permeable membrane. Driven by a pressure higher than the osmotic pressure of the solution, water molecules are allowed to pass through the membrane, while impurities such as ions, organic matters, colloids, bacteria, and viruses in the water are retained, thereby achieving water purification.

II. Process and Specifications  of   HJ-ROFB20T

1.Standard Path:
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → Pure Water Tank → UV Sterilizer → Water Point
2.Enhanced Path:
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Tank → Secondary RO → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter → Water Point

III.Specifications

IV. Design Advantages

Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.
Factory-Integrated Wiring: Reduces on-site installation and debugging time by completing all unit connections at our facility.
RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
Sanitary Materials: 304/316L stainless steel piping in both sanitary and non-sanitary designs, with automatic welding and endoscopic inspection for flawless hygiene.
Dual Sterilization Options: Choose between ambient temperature or hot water disinfection systems to meet hygiene standards.
Stainless Steel Pipe Automatic Welding & Endoscopic Inspection - Elevate Your Production with Precision and Efficiency.
Hygiene Guaranteed: Purified water storage tanks with breathing filters, along with UV sterilizers and microporous filters in the pipelines, ensure water quality remains pristine.
User - Friendly Operation: Integrated control and instrumentation systems make operation and management intuitive and straightforward.

V. Design Standards and Compliance

Tailored Solutions: Customized designs based on your detailed water quality report, ensuring a perfect fit for your process.
National Food Safety Standards: Compliant with GB 19298-2014 (Packaged Drinking Water) and GB 14881-2013 (General Hygienic Practices for Food Production).
Industry Specifications: Aligned with JB/T 2932-1999 (Water Treatment Equipment), CJ/T119-2000 (RO Systems), and GB/T 12771-2019 (Stainless Steel Piping).

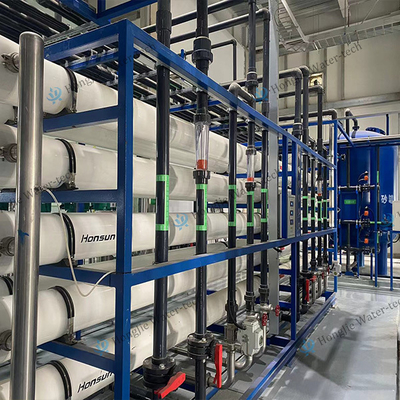

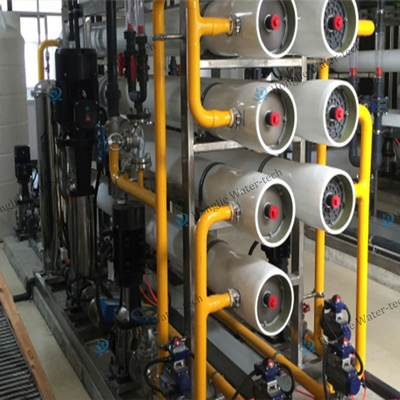

VI.Product display
