Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module

  • Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module
  • Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module
Place of Origin Guangdong,China
Brand Name HongJie
Certification ISO 14001,ISO 9001,CE,EPA
Model Number HJ-UPWSe115T
Minimum Order Quantity >=1sets
Price US$233900~US$239500
Packaging Details export standard wooden case
Delivery Time 1-7working days(depand on raw materials stocking)
Payment Terms L/C,D/P,T/T,Western Union
Supply Ability >300sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Water Quality Resistivity ≥15-18.25 MΩ·cm Flow Rate 115m³/H (Customizable)
Core Process Double-pass Reverse Osmosis + EDI + Polishing Resin Key Components RO Membrane Modules, EDI Units
Electricity Supply 380V After-Sales Service 2-Year Warranty
Operation Mode Fully Automatic Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
Highlight

Ultra Pure Water Equipment For Semiconductor

,

115m3/H Ultra Pure Water Equipment

,

Large Scale ultrapure water systems
Leave a Message
Product Description

Large Scale 115m³/h ultra pure water equipment for Semiconductor with EDI module



I. Product Introduction

Ultra-Pure Water System for Semiconductor Industry
Designed specifically for precision cleaning in semiconductor manufacturing, our system delivers water purity that meets rigorous industry standards, including:



  • ASTM (American Society for Testing and Materials)
  • GB/T 11446.1-2013 (Chinese Electronic Grade Water Standards: 18MΩ·cm, 15MΩ·cm, 10MΩ·cm, 2MΩ·cm, 0.5MΩ·cm)
  • Semiconductor Equipment and Materials International (SEMI) Standards
  • Integrated Circuit (IC) Manufacturing Specifications



II. Process and Specifications  of   HJ-UPWSe115T

Standard Configuration:
Raw Water → Raw Water Tank → Booster Pump → Flocculant/Reducer Dosing → Activated Carbon Filter → Ultrafiltration (UF) → Scale Inhibitor Dosing → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage High-Pressure Pump → 2nd Stage RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → Cartridge Filter → EDI System → Ultra-Pure Water Tank → Transfer Pump → TOC Removal Unit → Polishing Resin → Final Filter → Point of Use



Process Highlights:



  • Multi-Stage Pretreatment: Removes particles, organics, and chlorine to protect RO membranes.
  • Dual RO System: Achieves  salt rejection rate for consistent high-purity water.
  • EDI Technology: Continuous electro-deionization eliminates the need for chemical regeneration.
  • Polishing Resin: Final purification stage for ultralow TOC and ionic contaminants



III. Specifications

Item Specification
Electricity Supply 380V
Produced Water Quality Resistivity ≥15-18.25 MΩ·cm
Core Technology Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components RO Membrane Modules, EDI Units
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service  2-Year Warranty For Standard Equipment



EDI  Photo:



Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module 0

Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module 1

RO Photo:

Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module 2

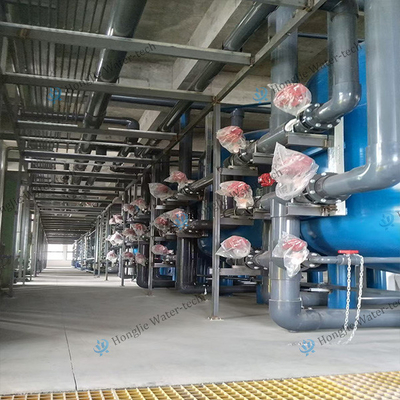

Details  of  other  process  equipment:

Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module 3



IV. Design Advantages

  1. Fully Automated Control:
    • Automatic backwash and regeneration cycles.
    • Manual override option for maintenance.
  2. Factory-Integrated Wiring:
    • Pre-wired components reduce on-site installation time .
  3. Advanced Maintenance Features:
    • RO chemical cleaning system extends membrane life.
    • Recirculation loops ensure water quality stability.
  4. Premium Materials:
    • 304 stainless steel and UPVC piping for corrosion resistance.
  5. Intuitive Operation:
    • Integrated control panel with real-time monitoring.
    • Remote access option for troubleshooting.
  6. Low Maintenance:
    • Durable components designed for continuous operation.



Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module 4



V.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
