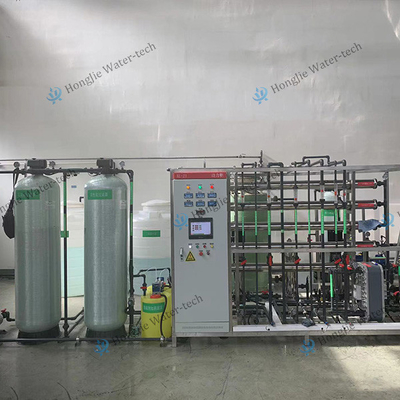

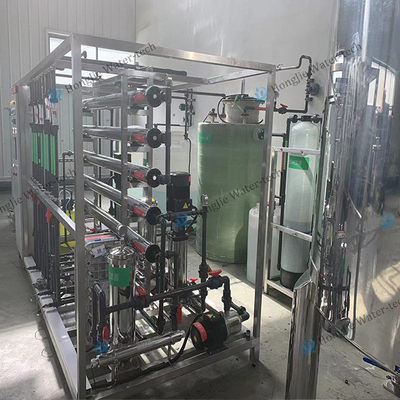

PVDF Industrial Water Filter System 30t/H Ultra Pure Water Treatment Equipment
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | HongJie |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Minimum Order Quantity | >=1sets |
| Price | US$66200~US$66500 |
| Packaging Details | export standard wooden case |
| Delivery Time | 1-7working days(depand on raw materials stocking) |
| Payment Terms | L/C,D/P,T/T,Western Union |
| Supply Ability | >300sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Main Material | PVDF | PVDF Maximum Temperature Resistance | 140°C(short - Term 150°C) |
|---|---|---|---|
| Water Quality | Resistivity ≥18.2MΩ·cm | Flow Rate | 30t/h (Customizable) |
| Core Process | Double-pass Reverse Osmosis + EDI + Polishing Resin | Key Components | RO Membrane Modules, EDI Units |
| Electricity Supply | 380V/220v | After-Sales Service | 2-Year Warranty |
| Operation Mode | Fully Automatic | Compressive Strength | ≥ 50 MPa |
| Highlight | Industrial Water Filter System 30t/H,PVDF Industrial Water Filter System,30t/H Ultra Pure Water Treatment |
||
Product Description
I.Overview
PVDF (polyvinylidene fluoride) is the most widely used and highest-performing material in ultra-pure water (UPW) systems, particularly in industries with extremely stringent water quality requirements such as semiconductors, pharmaceuticals, and biotechnology. Its core value lies in its ability to sustain the extreme purity of ultra-pure water over the long term (resistivity ≥ 18.2 MΩ·cm, TOC ≤ 1 ppb). “In ultra-pure water systems, PVDF is the only engineering plastic that can simultaneously meet the three core requirements of ‘zero contamination leaching, high-temperature sterilization resistance, and long-term stability.’”
II.Standard Process
Raw Water → Raw Water Tank → Booster Pump → Flocculant/Reducer Dosing → Activated Carbon Filter → Ultrafiltration (UF) → Scale Inhibitor Dosing → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage High-Pressure Pump → 2nd Stage RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → Cartridge Filter → EDI System → Ultra-Pure Water Tank → Transfer Pump → TOC Removal Unit → Polishing Resin → Final Filter → Point of Use
III.Key applications of PVDF in ultrapure water systems
Core distribution loop (main pipeline, circulation pump, and valves)
Water storage and delivery system (tank lining/pipeline, terminal filter housing)
High-temperature sterilization system (SIP (online sterilization) pipeline)
Special process connections (wafer cleaning equipment)
IV.Core Advantages of PVDF
| Characteristics | Specific Performances | Impact on Ultra - pure Water Systems | ||||||||
| Ultra - low Extractables | Extremely high chemical inertness, hardly releasing organic substances (TOC), ions (Na⁺, Cl⁻, etc.) or metal impurities (Pb, Fe, etc.) | Ensure the stability of water quality resistivity > 18.2 MΩ·cm and TOC ≤ 0.5 ppb, meeting the stringent requirements such as semiconductor wafer cleaning. | ||||||||
| High - temperature Resistance | Long - term resistance to 140°C, short - term resistance to 150°C | Support online sterilization (SIP) with high - temperature hot water (80 - 90°C) or pure steam (121°C) to completely kill microorganisms. | ||||||||
| Surface Smoothness | After electrolytic polishing (EP), the surface roughness Ra < 0.25 μm | Reduce the leaching of particulate matters and the adhesion of microorganisms, and prevent the formation of biofilms (biofilms are the number one pollution source in ultra - pure water systems). | ||||||||
| Mechanical Strength | Compressive strength ≥ 50 MPa, excellent impact resistance | Suitable for high - pressure circulation systems (4 - 6 bar), reducing the detachment of microparticles caused by pipeline vibration. | ||||||||
| Opaqueness | Naturally milky white, completely blocking light | Prevent the growth of algae and photosynthetic bacteria (ordinary PVC/PEX is prone to microorganisms due to light transmission). | ||||||||
V.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
