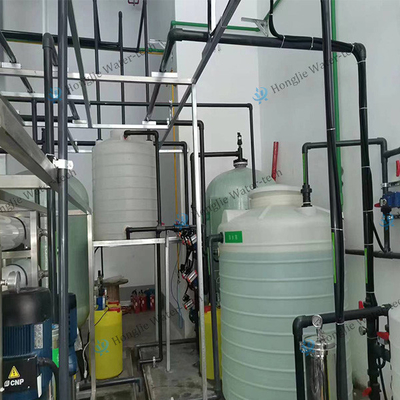

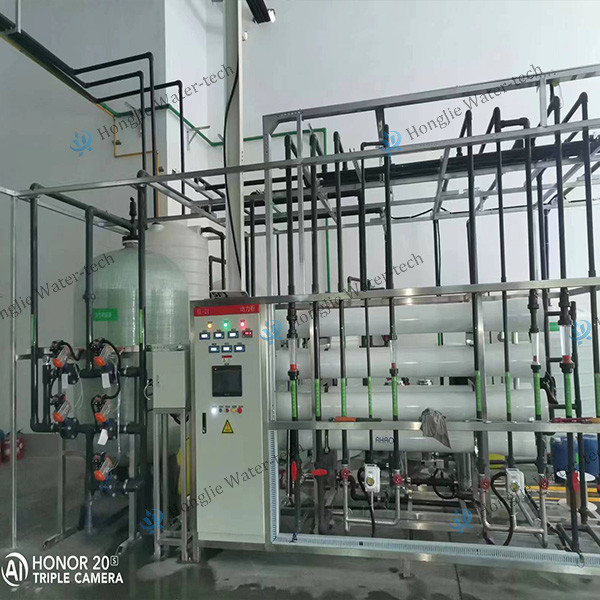

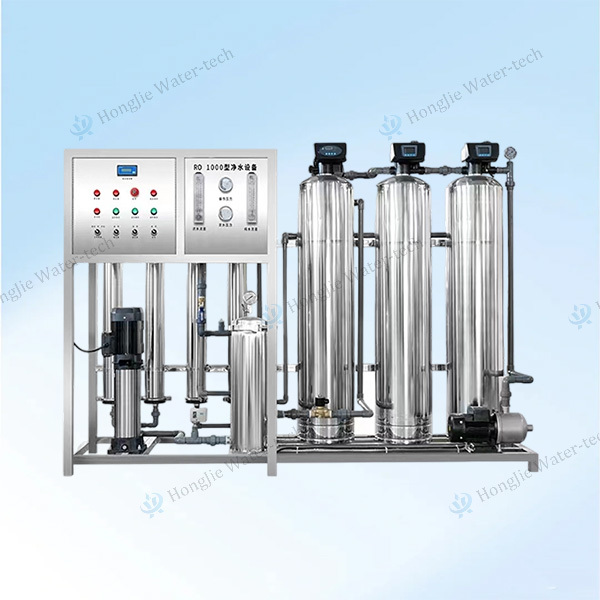

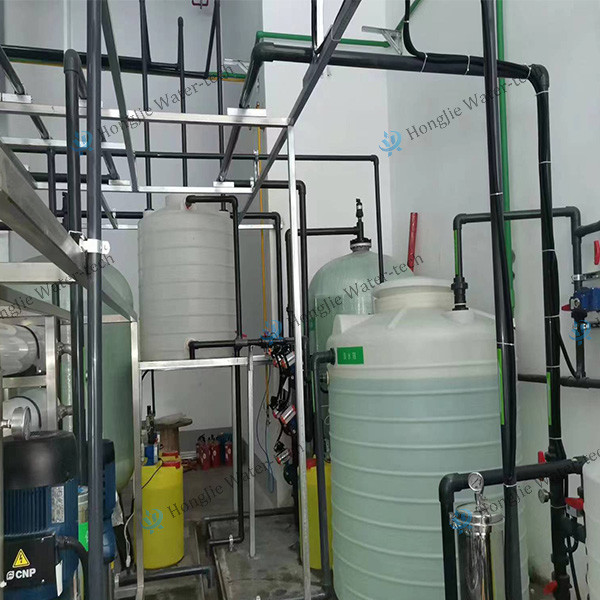

Custom Made 16M3/H Purified Water Equipment For Injection With EDI Device

Excellent Performance Custom-made 16M³/H Purified Water Equipment for Injection with EDI device

Ⅰ. Equipment Introduction

• Increasing adoption of disinfection/sterilization facilities within the system;
• Evolution of pipeline distribution from traditional supply pipes to circular loop pipelines, minimizing stagnation risks.

• The WFI preparation, storage, and distribution system is engineered to prevent microbial growth and contamination.
• Tanks and pipelines are constructed from non-toxic, corrosion-resistant materials, with designs free of dead ends and blind pipes to ensure hygiene.
• Regular cleaning and sterilization cycles are specified for tanks and pipelines.
• The WFI storage tank's vent is equipped with a hydrophobic sterile filter to prevent fiber shedding.
• Storage options include thermal insulation at ≥80℃, thermal circulation at ≥70℃, or cold storage at ≤4℃.

Ⅲ. Process Flow

1. Raw Water → Raw Water Pressure Pump → Multi-media Filter → Activated Carbon Filter → Water Softener → Precision Filter → 1st Stage RO → pH Adjustment → Intermediate Water Tank → 2nd Stage RO → Intermediate Water Tank → Intermediate Water Pump → EDI System → Purified Water Tank → Pure Water Pump → UV Sterilizer → Micro-porous Filter →Pasteurization → Water Use Points

IV.Specifications

V. Design Features (Marketing Highlights)

1. Fully Automated Control (with manual override option) enables scheduled automatic backwashing and regeneration, reducing labor costs.
2. Pre-assembled unit wiring in the factory minimizes on-site installation and debugging time.
3. 1st and 2nd stage RO systems feature reflux pipelines, complemented by chemical cleaning and disinfection devices for prolonged membrane life.
4. Pipeline materials: 304/316L stainless steel, with hygienic and non-hygienic grade designs to meet diverse industry needs.
5. The ultra-pure water system is fully constructed from stainless steel, ensuring smooth surfaces, no dead angles, easy cleaning/sterilization, and corrosion resistance—eliminating rust risks.
6. Direct conversion of tap water to sterile ultra-pure water, replacing traditional distilled and double-distilled water for cost efficiency.
7. Automated stainless steel pipe welding with endoscopic inspection for leak-proof, high-integrity joints.
8. Purified water storage tanks with breathing filters, and delivery pipelines equipped with UV sterilizers and micro-porous filters to guarantee hygienic standards.
9. Integrated control and instrument systems for intuitive operation and management.
10. Real-time online monitoring, timed printing, and water quality alarm functions provide full-process safety for your production water.
