2 M³/h Ultra-Pure Water System With PLC Automatic Control And Touchscreen Interface

2 M³/h Ultra-Pure Water System With PLC Automatic Control And Touchscreen Interface

Brand Name:	Hongjie
Model Number:	HJ-UP1T
MOQ:	1set
Price:	negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	>300sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO 14001,ISO 9001,CE,EPA

Voltage:

380V, 220V/50HZ Etc; (Power Supply Can Be Customized)

Warranty:

1 Year

Control:

Electric Auto Control (PLC )

Desalination Rate:

≥ 99%

Material:

Stainless Steel 304/Fiberglass

Productivity:

2000LPH / Custom

Product Name:

Ultrapure Water System

Filter Media:

Sand+carbon+softener+RO+EDI

Packaging Details:

export standard wooden case

Highlight:

2 M³h ultrapure water equipment

high-purity ultrapure water system

ultrapure water equipment for labs

Product Description

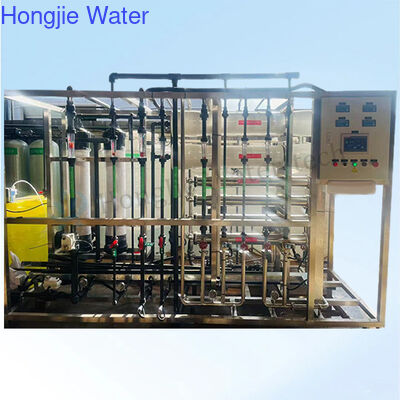

2 M³/h Ultra-Pure Water System With PLC Automatic Control And Touchscreen Interface

Our 2 M³/h Ultra-Pure Water System is engineered for industries requiring exceptional water purity standards. Featuring a PLC automatic control system with intuitive touchscreen interface, this system ensures reliable operation and precise monitoring for consistent ultra-pure water production.

This advanced system integrates cutting-edge purification technologies including Reverse Osmosis (RO) and Electrodeionization (EDI), delivering ultra-pure water with superior conductivity performance and minimal TDS levels. Ideal for pharmaceutical manufacturing, laboratory applications, electronics production, and other industries where water purity is critical.

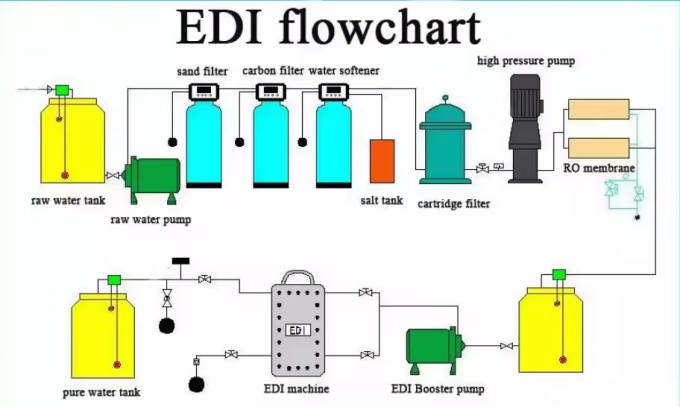

Process Flowchart

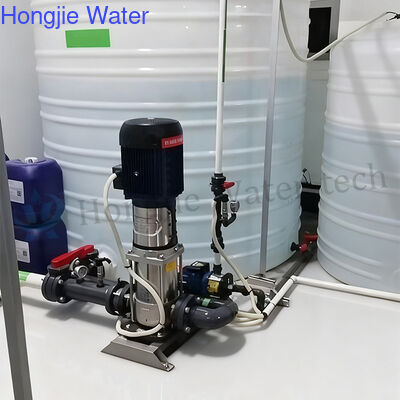

Raw water → Raw water tank → Raw water pump → Sand filter → Carbon filter → Water softener → Salt tank → Cartridge filter → High pressure pump → RO membrane → EDI Booster pump → EDI machine → Pure water tank → Water point

Technical Specifications

Item	Specification / Description
Model	2 m³/h Ultrapure Water System
Feed Water Source	Tap water / softened water
Production Capacity	2 m³/h (≈ 2000 L/h)
Water Quality (Product)	Resistivity ≥ 15-18 MΩ*cm; TOC ≤ 10 ppb; Silica ≤ 0.1 mg/L
Conductivity (Product)	≤ 0.067 μS/cm
Recovery Rate	60-70% (depending on feed water quality)

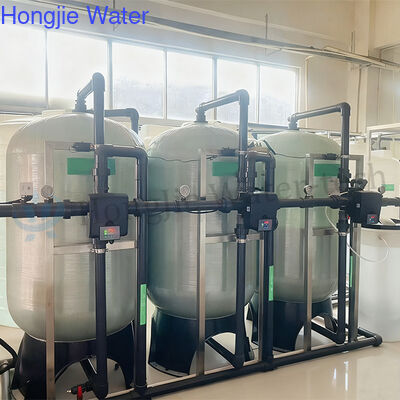

Pretreatment System	Multi-media filter, activated carbon filter, softener, cartridge filter (5 μm)
Main Purification Stage	Double-pass RO system
Polishing Stage	EDI (Electrodeionization) or Mixed-Bed Ion Exchange Unit
Sterilization / Final Filtration	UV sterilizer + 0.2 μm precision filter
Control System	PLC automatic control with touchscreen interface

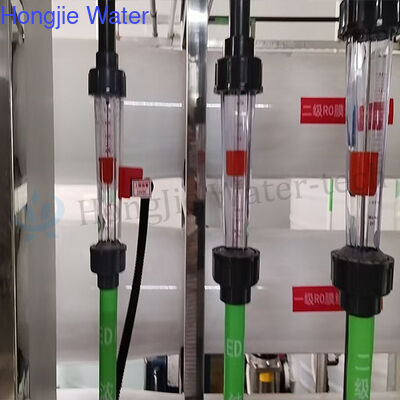

Monitoring	Online conductivity, flow, pressure, and temperature monitoring
Material (Pipeline / Tank)	SUS 304 / 316L stainless steel or sanitary-grade PVC

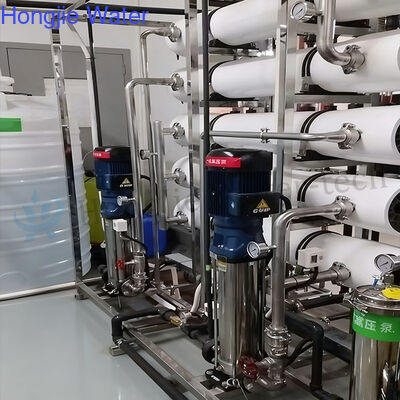

Operating Pressure (RO)	1.0-1.5 MPa
Power Supply	AC 380 V / 50 Hz / 3 Phase (customizable)
Ambient Temperature	5 - 40 °C
Installation Type	Skid-mounted compact design
Applications	Semiconductor, pharmaceutical, laboratory, precision manufacturing, optics, etc.

2 M³/h Ultra-Pure Water System technical diagram

Equipment Selection Guide

Identify Your Requirements

Clarify the following aspects to determine the optimal equipment for your application:

Water Quality Issues

Sediment exceeds standards / Scaling / Turbid water / Microbial contamination / Heavy metal exceeds limits / Manganese exceeds standards, etc.

Required Water Standards

Softened water / Pure water / Ultra-pure water / Iron and manganese removal / Sediment removal / Sterilization, etc.

Daily Water Consumption

Concentrated water consumption periods / Water usage timing / Peak maximum water consumption / Hourly average water consumption

Sample Equipment Conclusions

5 tonnes per hour water softening equipment

3 tonnes per hour reverse osmosis water purification equipment

Need Assistance Determining Your Requirements?

Daily Water Consumption: Mail a water sample for analysis

Water Standard: Simply inform us of your industry

Water Consumption: We can help calculate your water consumption requirements
